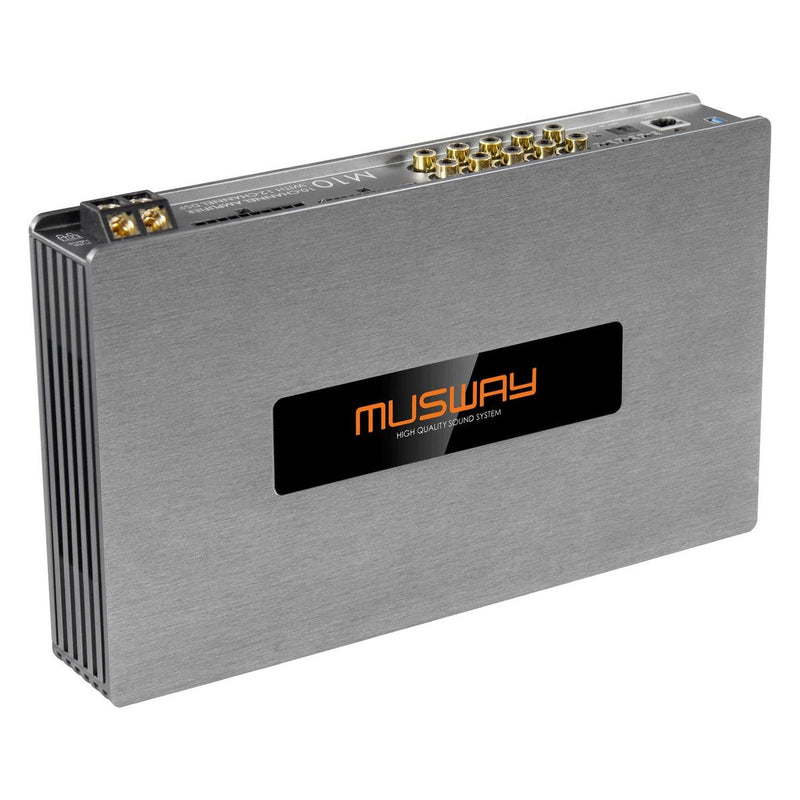

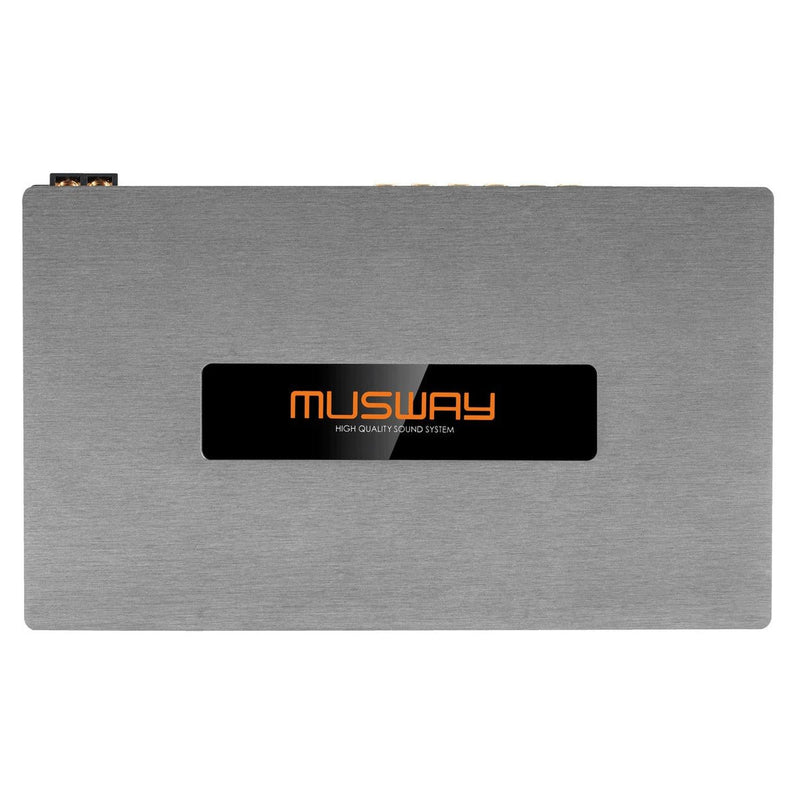

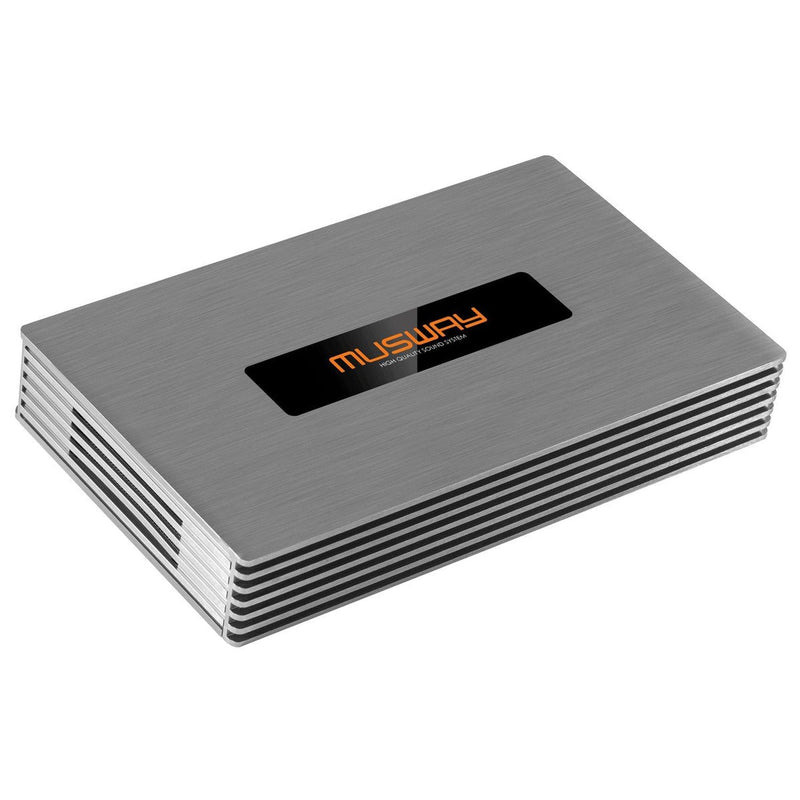

Musway M10 - 10-Channel DSP Amplifier with 14-Channel DSP for Demanding OEM and Aftermarket Systems
The Musway M10 is a 10-channel DSP amplifier for complex car hi-fi setups. Ten Class D power amplifiers and an integrated 14-channel DSP give you full control over front, rear, center, and subwoofer – also ideal for current BMW and Mercedes models with powerful under-seat or footwell subwoofers. Intelligent high-level inputs with EPS, start-stop compatibility, and auto-turn-on facilitate integration. The system is conveniently controlled via the new V3 DSP software or the V3 app. At Carhifi.shop, you will find the M10 including suitable accessories.
Technical Highlights
- 10 Class D channels with integrated 14-channel DSP (Analog Devices ADAU1466)
- High-quality Burr-Brown converters (PCM3168A)
- Dual 64-bit signal processing, 295 MHz; control via V3 DSP Software and V3 App
- Intelligent high-level inputs with EPS (Error Protection System)
- Start-stop ready and automatic turn-on function
- Soft-clipping for safe operation at 2 ohms
- Signal-to-noise ratio ≥ 95 dB; frequency response 15 Hz – 22 kHz (-3 dB)
- Total harmonic distortion ≤ 0.05 % (1 kHz, 4 ohms, 90 % power)
- Separately adjustable input sensitivities (channels 1–8, 9–10, AUX) with clipping LED
- Optional accessories: Bluetooth USB dongle BTS-HD/BTA2 for audio streaming & app control; digital remote control DRC1 with OLED display
Output Power
- 8 x 80 / 135 W RMS @ 4 / 2 ohms + 2 x 120 / 220 W RMS @ 4 / 2 ohms
- Bridged: 4 x 270 W + 1 x 440 W RMS @ 4 ohms
- Dynamic Headroom Technology (DHR) for short power peaks
- Channels 1–8: up to 155 W RMS per channel @ 2 ohms
- Channels 9/10: up to 220 W RMS per channel @ 2 ohms

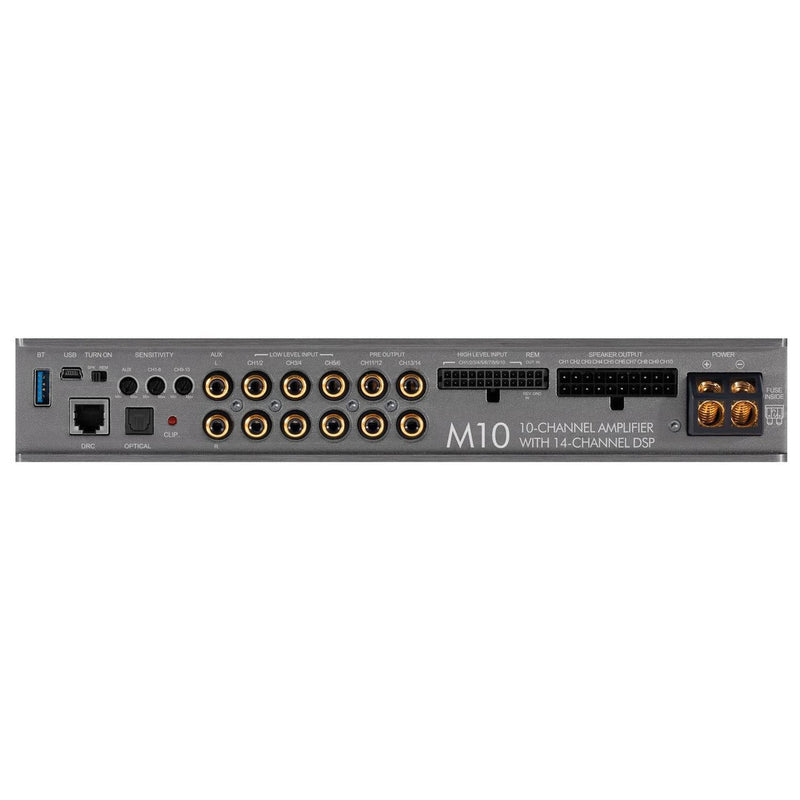

Connections & Interfaces
- 8 x high-level input 8–24 V RMS with EPS
- 2 x high-level input 32 V RMS with EPS
- 6 x RCA low-level input 2–6 V RMS
- 1 x RCA AUX input stereo 1–8 V RMS
- 1 x optical input stereo, PCM 192 kHz / 24 bit
- 4 x RCA pre-amplifier output (configurable via DSP)
- 10 x amplified speaker outputs
Installation & Compatibility
Thanks to its high/low-level architecture, the M10 can be flexibly integrated into factory and aftermarket systems. Especially in BMW and Mercedes, you achieve precise control including powerful under-seat or footwell subwoofers. The compact design facilitates concealed installation.
- Dimensions: 280 x 45 x 166 mm
