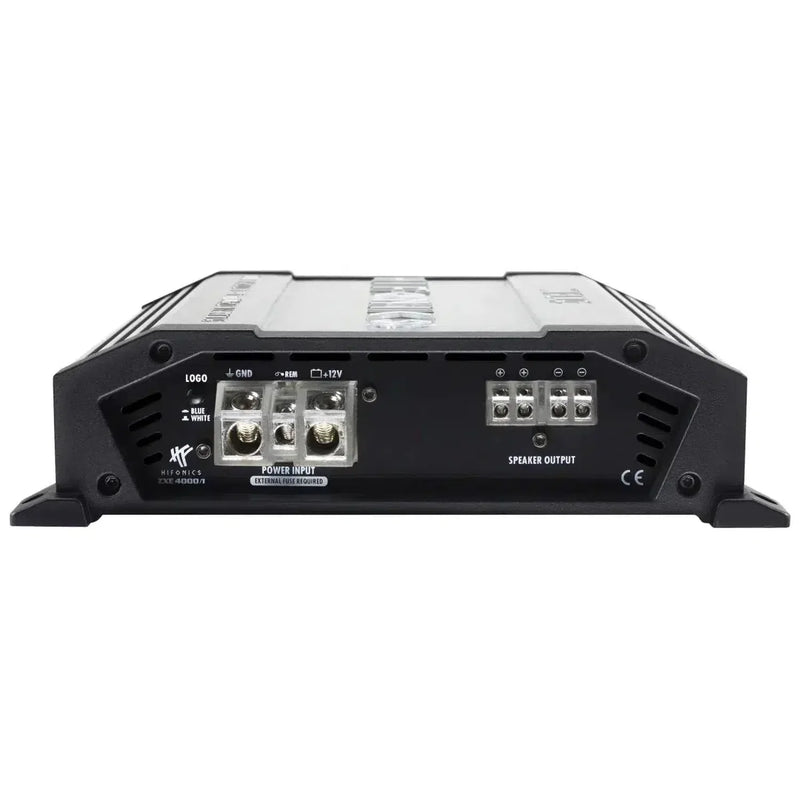

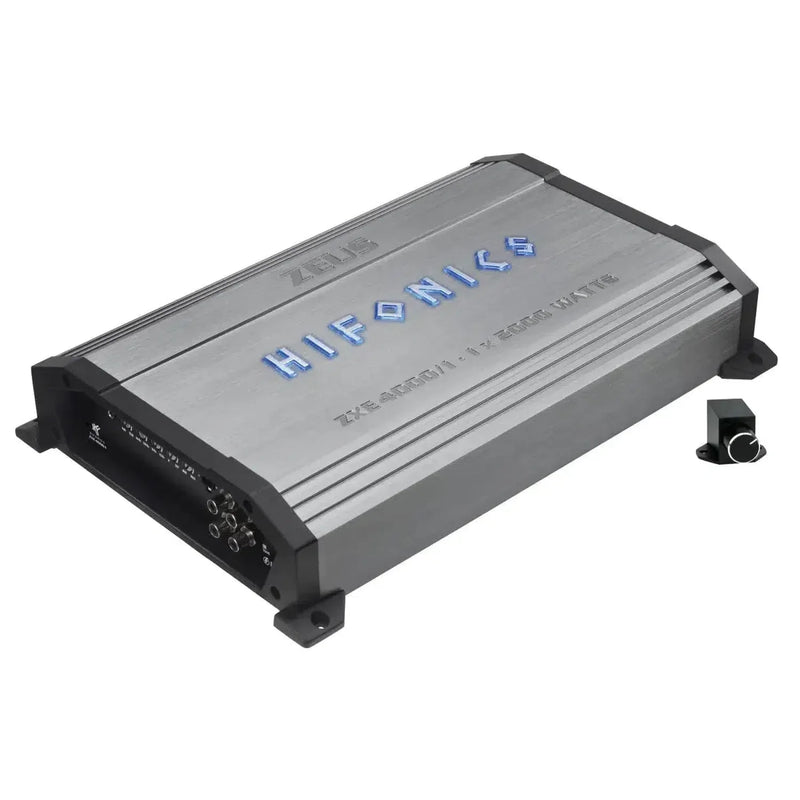

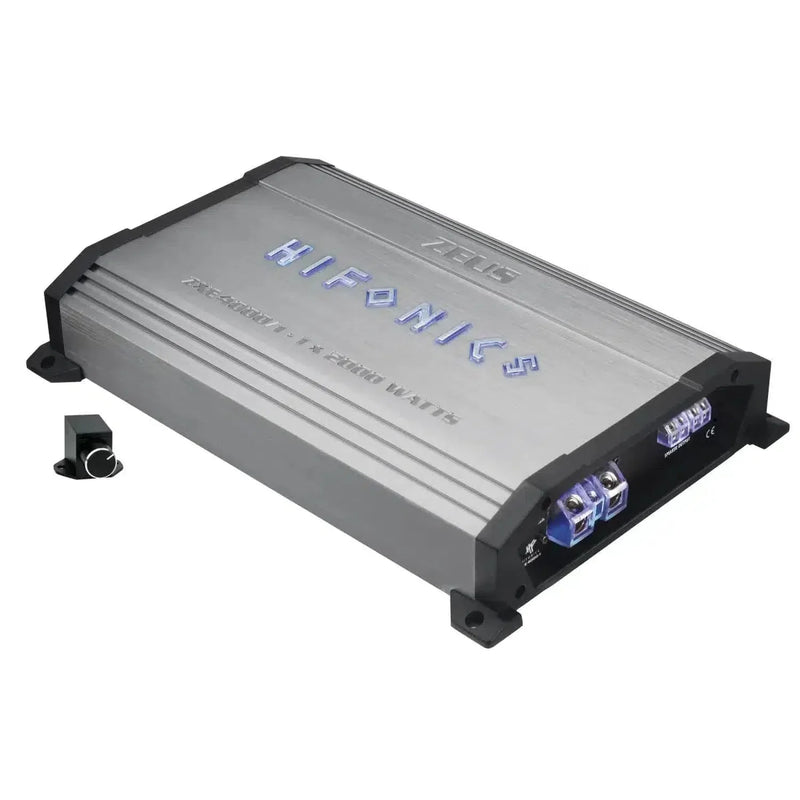

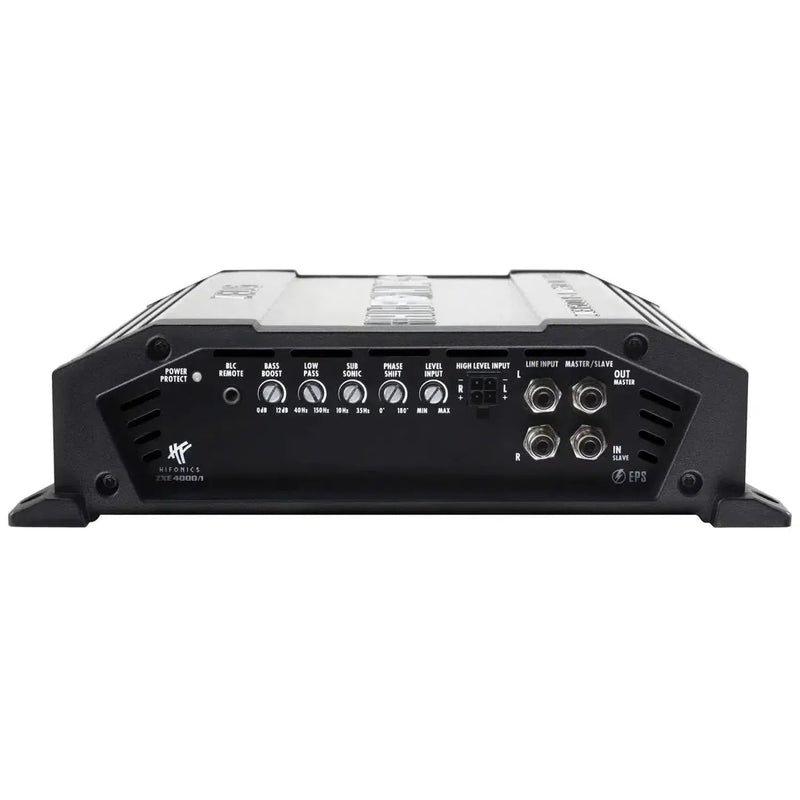

Hifonics Zeus Evolution ZXE4000/1

Hifonics Zeus Evolution ZXE4000/1 – 1-Channel Class-D Monoblock for Controlled Subwoofer Bass

The Hifonics Zeus Evolution ZXE4000/1 is a compact 1-channel amplifier that cleanly and efficiently drives your subwoofer. Thanks to high-level inputs with EPS, automatic turn-on function, and start/stop compatibility, you can easily integrate it with factory or aftermarket radios. Low-pass, subsonic, phase, and bass boost can be precisely adjusted. With the master/slave option, you can pair two identical devices for more power. The brushed aluminum housing with black end caps and illuminated logo ensures a robust, tidy installation.

Technical Highlights

• Screw-on RCA jacks for stable signal connections
• High-level inputs with EPS (Error Protection System) for secure OEM integration
• Automatic turn-on function, start/stop ready
• Bass level remote control included
• Master/Slave function for pairing two identical amplifiers
• Die-cast aluminum side panels, gray, brushed aluminum heatsink
• Illuminated logo badge (blue or white) and blue terminal illumination

Technical Data

• 1-Channel Class D Digital Amplifier (Monoblock)
• Power: 1 x 800/1400/2000 W RMS @ 4/2/1 Ohm
• Subsonic filter: 10 – 35 Hz
• Low-pass (LPF): 40 – 150 Hz
• Phase Shift: 0 – 180°
• Bass Boost: 0 – 12 dB
• Incl. Bass Remote
• Dimensions: 248 x 64 x 362 mm

Installation & Compatibility

Thanks to its compact design, the monoblock can be flexibly placed in the vehicle. Via the high-level inputs, you can integrate it directly with factory radios, and the auto-turn-on function ensures clean power-up without an ignition positive. With the adjustable filters, you can precisely adapt the amplifier to your subwoofer and vehicle. If you want more output power, you can combine two identical ZXE4000/1 units using the master/slave function.
