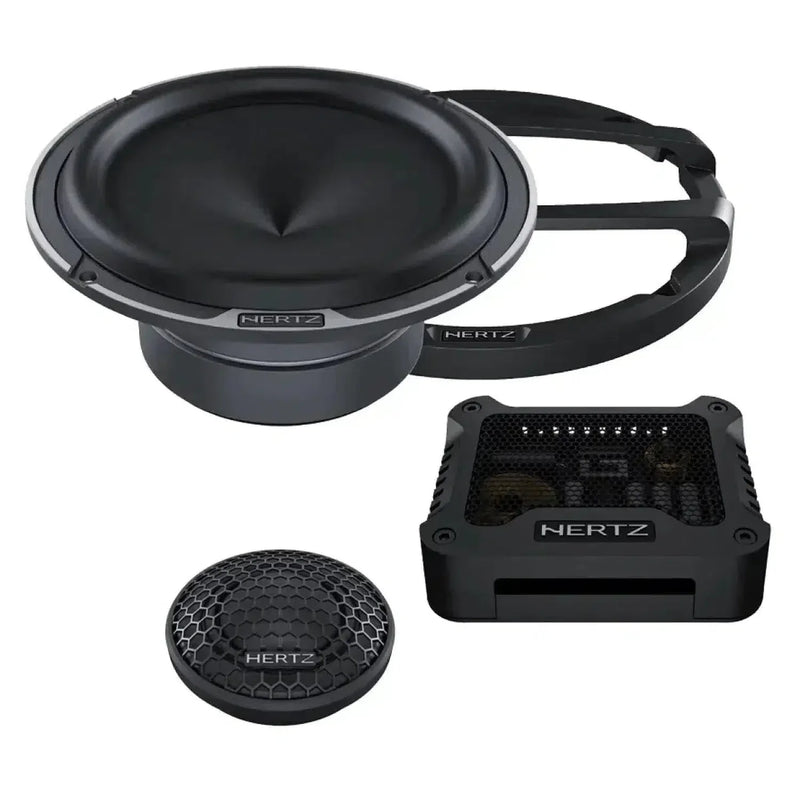

Hertz Mille Legend MLK 165.3 - 165 mm 2-Way Front System with Passive Crossover
The Hertz Mille Legend MLK 165.3 is a 6.5-inch component system for the vehicle front, delivering precise mids, clean highs, and controlled dynamics. The set combines the ML 28.3 Legend tweeter, the ML 165.3 Legend woofer, and the MLCX 165.3 crossover to form a cohesive 2-way system for demanding car hi-fi setups.
Technical Highlights
The woofer features a Boundary-Free surround for increased effective cone area and controlled excursion. The V-Cone made of cotton-fiber-reinforced pressed paper ensures good dispersion and a natural sound. A six-spoke aluminum basket mechanically stabilizes the unit. The driver uses a high-density ferrite magnet, optimized for linear behavior in the mid-range. The passive 2-way crossover MLCX 165.3 crosses over at 3.5 kHz with 12 dB/Oct and cleanly connects the woofer and tweeter. With 150 W RMS (300 W Peak) at 4 ohms and a wide frequency response of 40 Hz to 25 kHz, the set is suitable for powerful amplifiers as well as high-quality OEM upgrades.
Technical Data (System)
- Size: 165 mm (6.5 inches)
- Power Handling (RMS): 150 W
- Power Handling (Peak): 300 W
- Impedance: 4 Ohm
- Sensitivity: 91 dB SPL
- Frequency Response: 40 Hz â 25 kHz
- Crossover: 2-way, passive
- Crossover Frequency: 3.5 kHz, 12 dB/Oct
- Tweeter Diaphragm: 35 mm
- Tweeter Voice Coil: Ă 28 mm
- Woofer Voice Coil: Ă 36 mm
- Woofer Weight: 1.65 kg
- Tweeter Weight: 0.075 kg
- Crossover Weight: 0.37 kg
Electro-acoustic Parameters (Woofer)
- Effective Diameter (D): 132 mm
- DC Resistance (Re): 3.3 Ohm
- Free Air Resonance (Fs): 65 Hz
- Voice Coil Inductance (Le): 0.37 mH
- Equivalent Volume (Vas): 9 l
- Moving Mass (Mms): 17 g
- Compliance (Cms): 0.3 mm/N
- Force Factor (BL): 6 T·m
- Total Q (Qts): 0.57
- Electrical Q (Qes): 0.64
- Mechanical Q (Qms): 5.4
- SPL (Woofer): 92 dB
Scope of Delivery
- 1 Pair Hertz ML 165.3 Legend Woofers (165 mm)
- 1 Pair Hertz ML 28.3 Legend Tweeters
- 1 Pair Hertz MLCX 165.3 Passive 2-Way Crossovers
Installation & Compatibility
The MLK 165.3 fits into common 165mm door speaker slots and is suitable as a high-quality 2-way front system. With 4 Ohm impedance, it harmonizes with many factory radios and aftermarket amplifiers. For full potential, a stable amplifier in the power range of around 150 W RMS per channel is recommended. The included crossovers facilitate clean connection and reliable separation between woofer and tweeter.
