Hertz Mille Legend ML 700.3 - 3-inch Midrange Speaker for Precise Mids
The Hertz Mille Legend ML 700.3 is a 3-inch midrange speaker for demanding front setups. It expertly covers the range from upper bass to high frequencies and can be ideally combined with other components of the Mille Legend series. With its neodymium drive, lightweight cellulose cone, and optimized mechanics, it plays dynamically, controllably, and with high detail – perfect for active setups or high-quality crossover 3-way systems at Carhifi.shop.
Technical Highlights
- Size: 70 mm (3 inches)
- Power Handling (Peak): 100 W – with high-pass 250 Hz / 12 dB per octave
- Impedance: 4 Ohm
- Voice Coil: 20 mm Ø
- Frequency Response: 200 Hz – 20 kHz
- Magnet: Neodymium, size 45 x 25 x 3.5 mm
- Cone: pressed cellulose membrane with cotton fibers
- Weight: 0.21 kg
Special Features

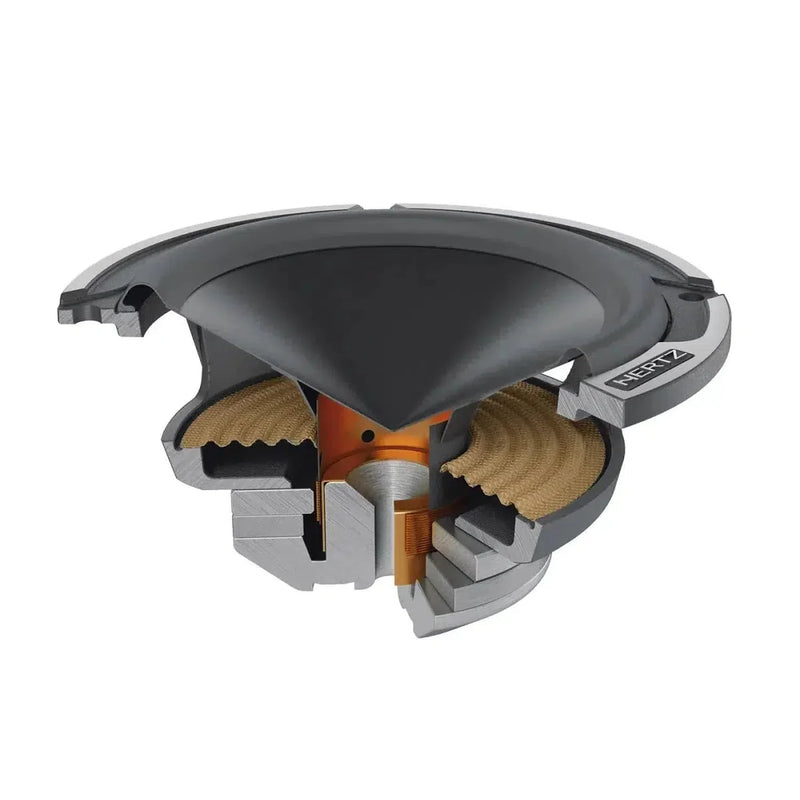

- FEA-developed neodymium magnet structure for high dynamics and control.
- CNC-machined low-carbon steel plates for maximum magnetic conductivity and low distortion at high levels.
- Gold-plated central pole in high-purity copper and single-layer voice coil for extended high-frequency range.
- Exponential V-cone with optimized geometry for linear frequency response and clean radiation.
- CONEX spider with special profile for high acoustic transparency in the mid and high frequencies.
- Boundary-Free IIR rubber surround for better efficiency and extended upper bass range.
- Press-pulp cone with cotton fibers: stiff and lightweight for wide frequency response and fine resolution.
- Optimized cone-to-spider coupling (FEA) for stable connection and enhanced high-frequency extension.

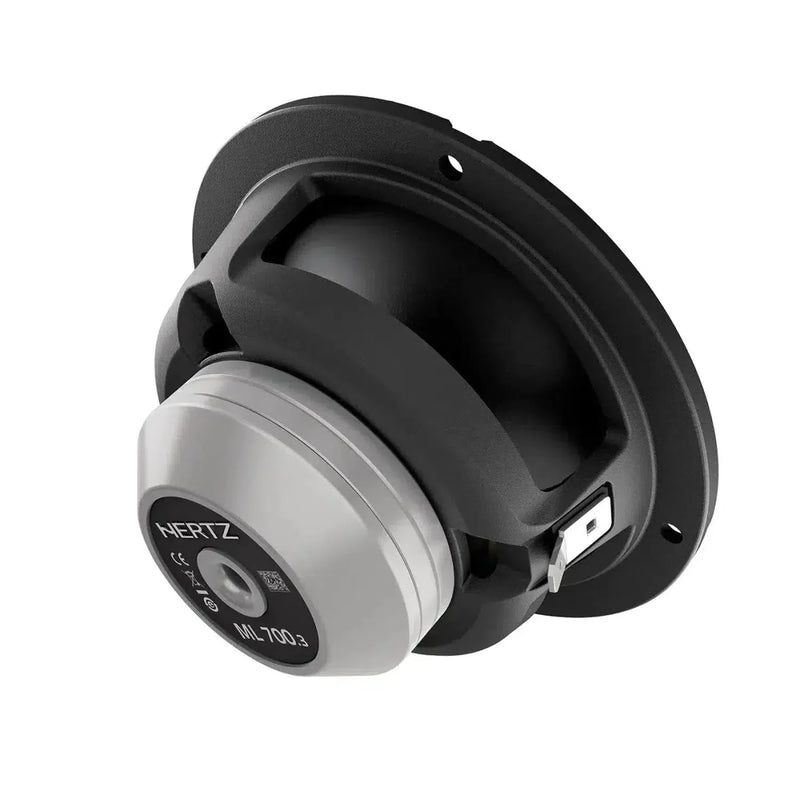

- Three-spoke, low-resonance aluminum basket with integrated vents for thermal stability.
- CNC-machined, diamond-cut basket rim with brand detail.

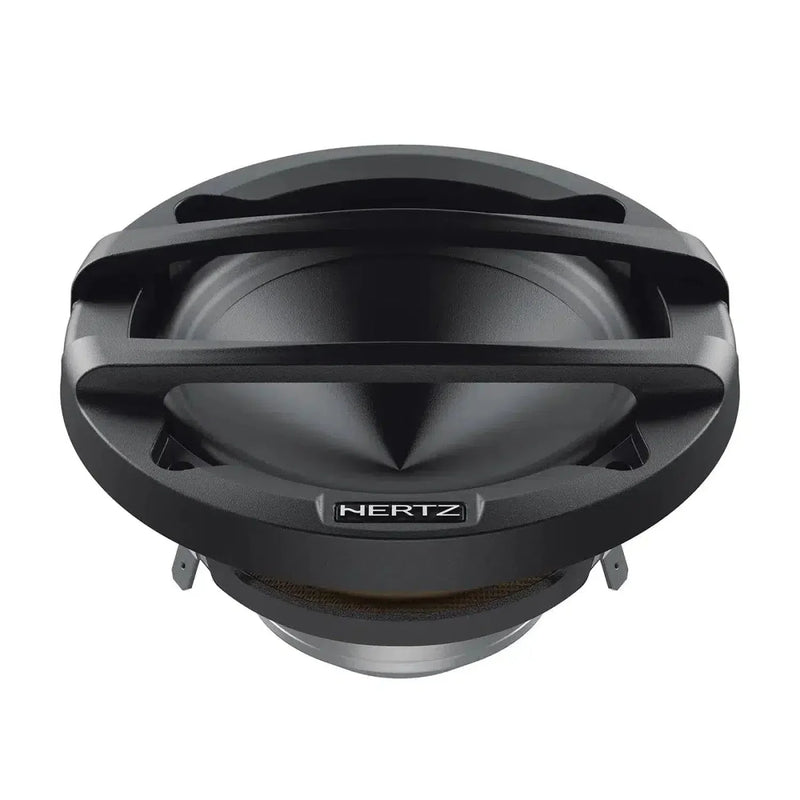

- Die-cast aluminum grille with diamond-cut brand emblem in the supplied design.
Electro-acoustic Data
- Effective Membrane Diameter (D): 65 mm
- Re: 3.8 Ohm
- Fs: 110 Hz
- Le: 0.05 mH
- Vas: 1.1 l
- Mms: 2.7 g
- Cms: 0.7 mm/N
- BL: 3.3 T·m
- Qts: 0.57
- Qes: 0.67
- Qms: 4
- Sound Pressure Level (SPL): 90 dB
Dimensions
- A: 87.8 mm
- B: 74 mm
- C: 47 mm
- D: 41.3 mm
- E: 93 mm
- F: 17 mm
Frequency Response & Resources
View Hertz ML 700.3 Frequency Response Graph
Installation & Compatibility
The ML 700.3 is designed for high-quality front systems in vehicles. Use it as a midrange speaker in an active or passive 3-way setup. For high power handling, a high-pass filter around 250 Hz with 12 dB/octave is recommended (corresponding to the peak specification). Pay attention to the mounting holes and depth according to the dimensioned drawing to avoid resonances and ensure proper ventilation of the drive.
