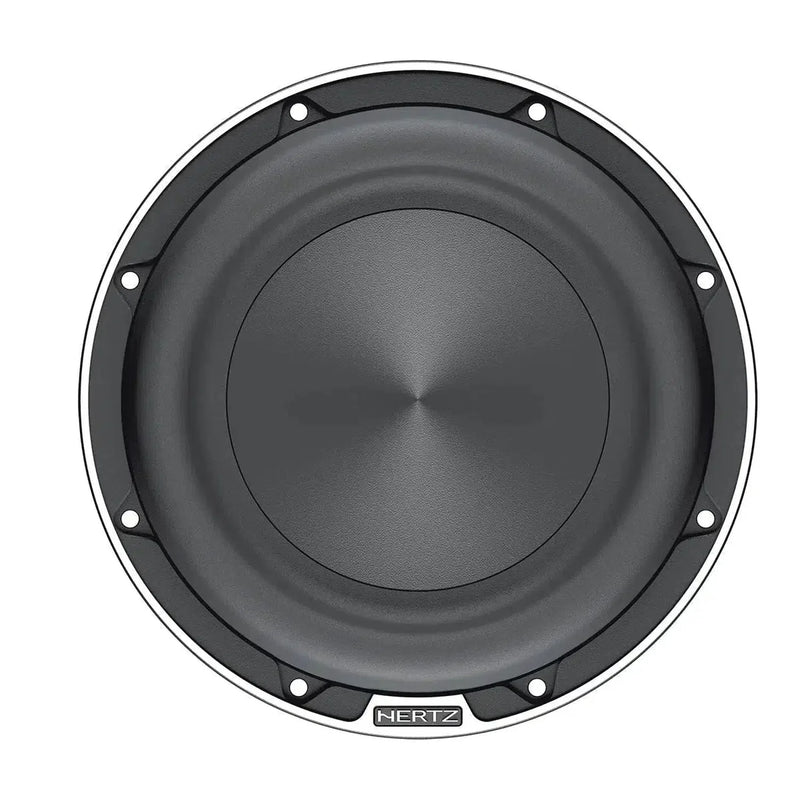

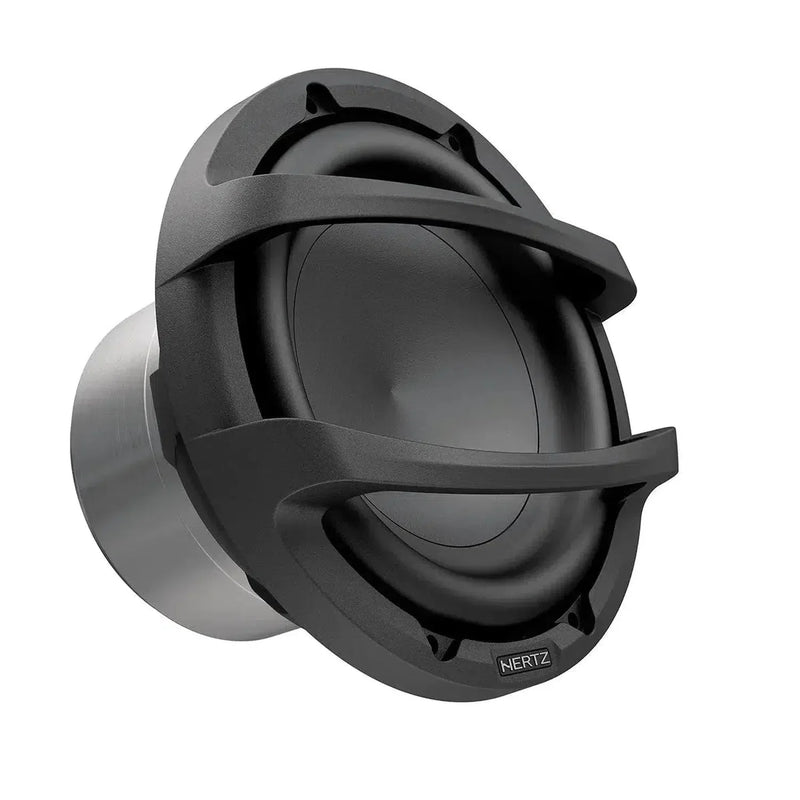

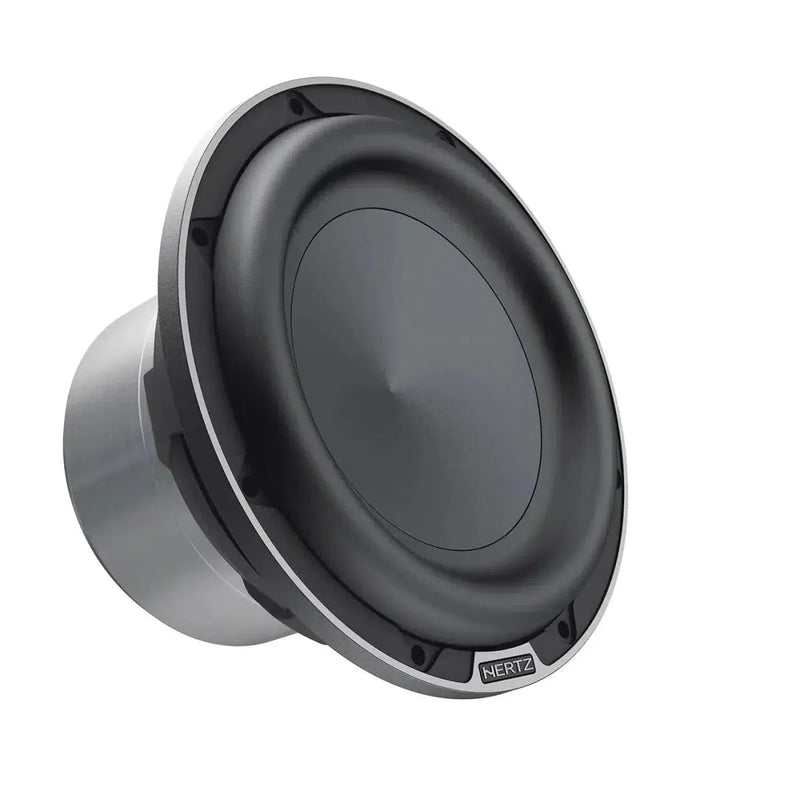

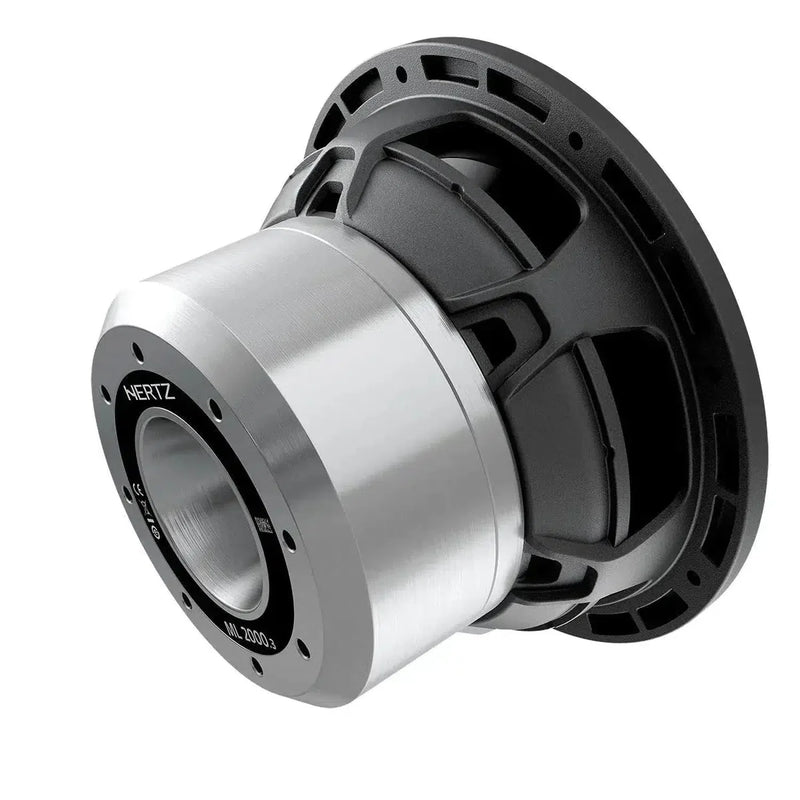

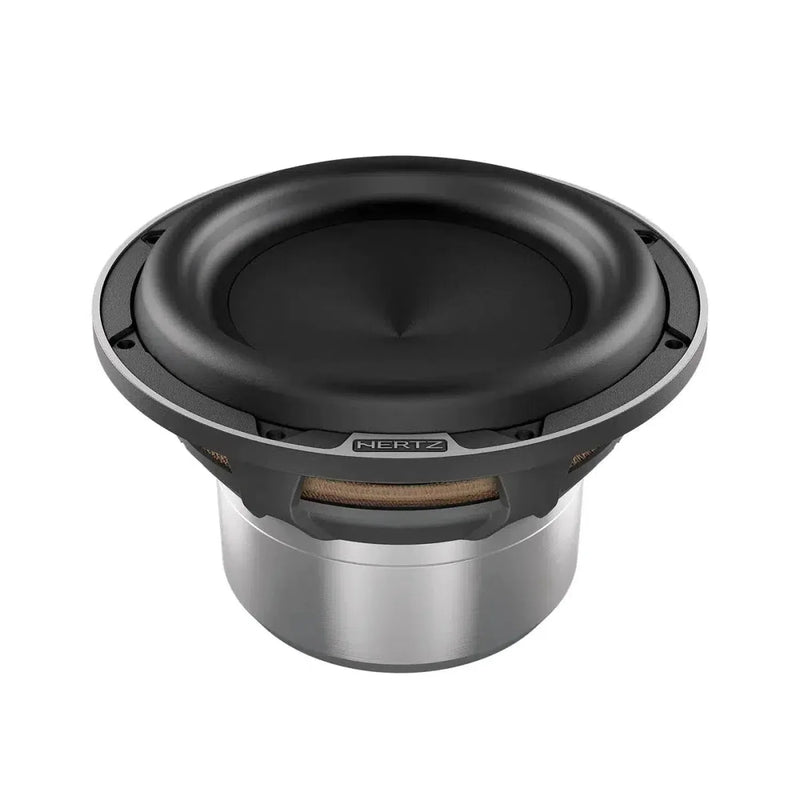

Hertz Mille Legend ML 2000.3

Hertz Mille Legend ML 2000.3 - 8-inch Subwoofer for compact, precise bass setups

The Hertz Mille Legend ML 2000.3 is an 8-inch subwoofer that enables high levels and clean control even in very small enclosures. It was developed for sealed boxes and combines a powerful 100 mm voice coil with a large neodymium magnet assembly and a stiff, mineral-reinforced paper cone. This gives you powerful, fast bass in a small space – ideal for side pockets or trunk niches.

Technical Highlights

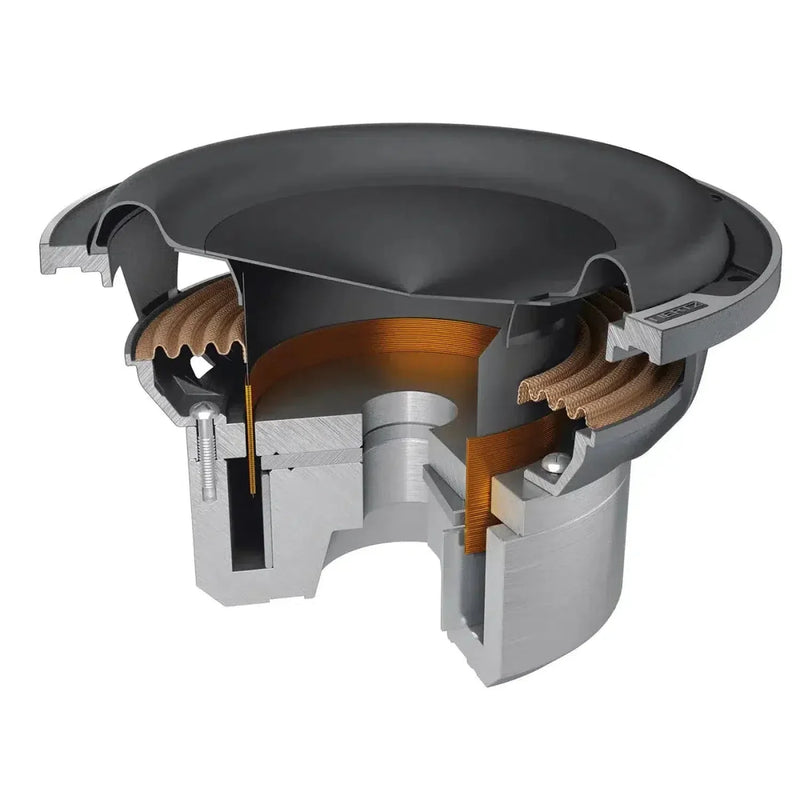

• Large neodymium magnet, FEA-optimized for stable magnetic field at high excursions
• CNC-machined steel plates with very low carbon content for high magnetic conductivity and low distortion
• Inner-pole motor design with high efficiency/size ratio
• CCAW voice coil, 100 mm (4"), rated up to 1400 W musical power at low operating temperature
• In/Out coil winding for uniform cooling of all layers
• TIL former (fiberglass composite) for good heat dissipation and high stiffness
• Aluminum shorting ring on the pole piece for distortion reduction and better low-frequency extension
• "Boundary Free" IIR rubber surround for more usable cone area and SPL
• Exponential V-cone geometry for high cone stiffness even at large excursions
• Pressed paper cone with minerals for stiffness and damping
• Low-resonance aluminum basket with integrated ventilation under the spider
• Optimized for sealed enclosures from 10 to 17 liters

Technical Data

• Size: 200 mm (8")
• Power handling RMS: 700 W
• Power handling Peak: 1400 W
• Impedance: 4 Ohm
• Voice coil: Ø 100 mm
• Frequency response: 30 – 600 Hz
• Magnet size (W x D x H): 95 x 28 x 5 mm
• Magnet: Neodymium
• Cone: Pressed paper cone with mineral powders
• Xmech: ±23 mm
• Weight: 6.12 kg

Electroacoustic Parameters (Thiele/Small)

• Effective cone diameter (D): 165 mm
• Xmax: 13 mm
• Re: 2.7 Ohm
• Fs: 40 Hz
• Le: 0.72 mH
• Vas: 9.5 l
• Mms: 110 g
• Cms: 0.15 mm/N
• BL: 11 T·m
• Qts: 0.56
• Qes: 0.63
• Qms: 5
• SPL: 86 dB

Dimensions

• A: 217 mm
• B: 138 mm
• C: 138 mm
• D: 117 mm
• E: 223 mm
• F: 46 mm

Enclosure Recommendations

The ML 2000.3 is designed for sealed enclosures. You have three practical setups to choose from:

1) Sealed Compact – 10 liters
Very space-saving, strong power-to-size ratio (e.g., side pockets).

2) Sealed – All-round

• Vb: 17 l (0.60 cu.ft.)
• Fb: 50 Hz
• Qtc: 0.85
• External dimensions (W x H x D): 450 x 350 x 190 mm
• Mounting diameter: 236 mm
• Material thickness: 19 mm

Panel cutting (sealed compact)

• A: 320 x 280 mm (2x)
• B: 320 x 152 mm (2x)
• C: 242 x 152 mm (2x)

3) Sealed – Performance
Recommended for tight, precise bass. 10 Hz / 24 dB/octave rumble filter is advisable.

• Vb: 17 l (0.6 cu.ft.)
• Fb: 50 Hz
• Qtc: 0.70
• External dimensions (W x H x D): 350 x 300 x 250 mm
• Mounting hole (M): 186 mm
• Wood thickness: 19 mm

Panel cutting (sealed performance)

• A: 350 x 300 mm (2x)
• B: 350 x 212 mm (2x)
• C: 262 x 212 mm (2x)

Installation & Compatibility

• Impedance 4 Ohm – ideal for powerful monoblocks at 4 Ohm
• Recommended amplifier power: approx. 500–700 W RMS at 4 Ohm
• Optimized for sealed enclosures in the 10–17 liter range
• High linear excursion (Xmax 13 mm) for controlled deep bass in small volumes
