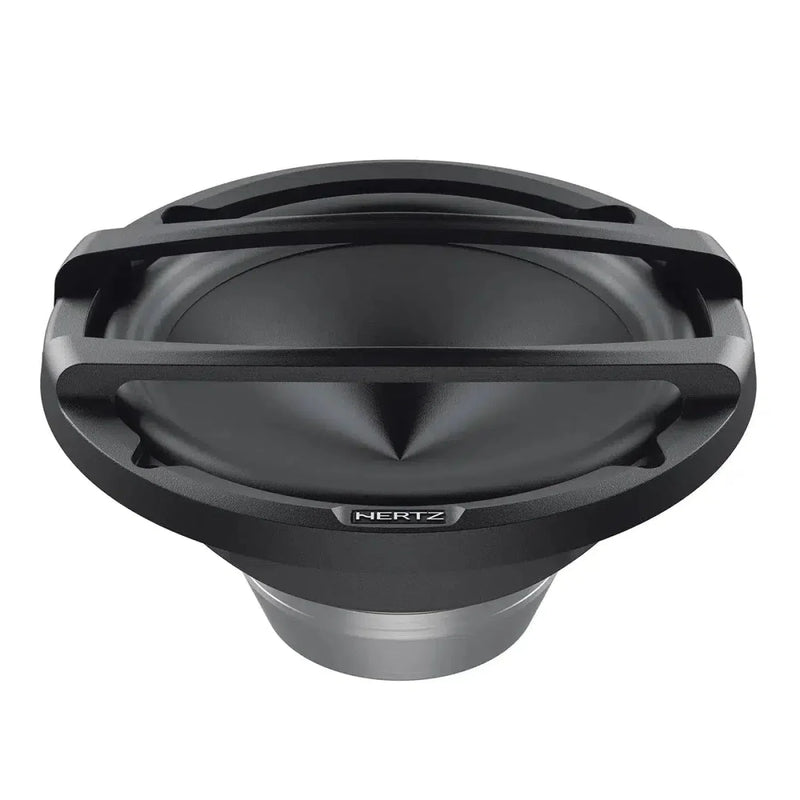

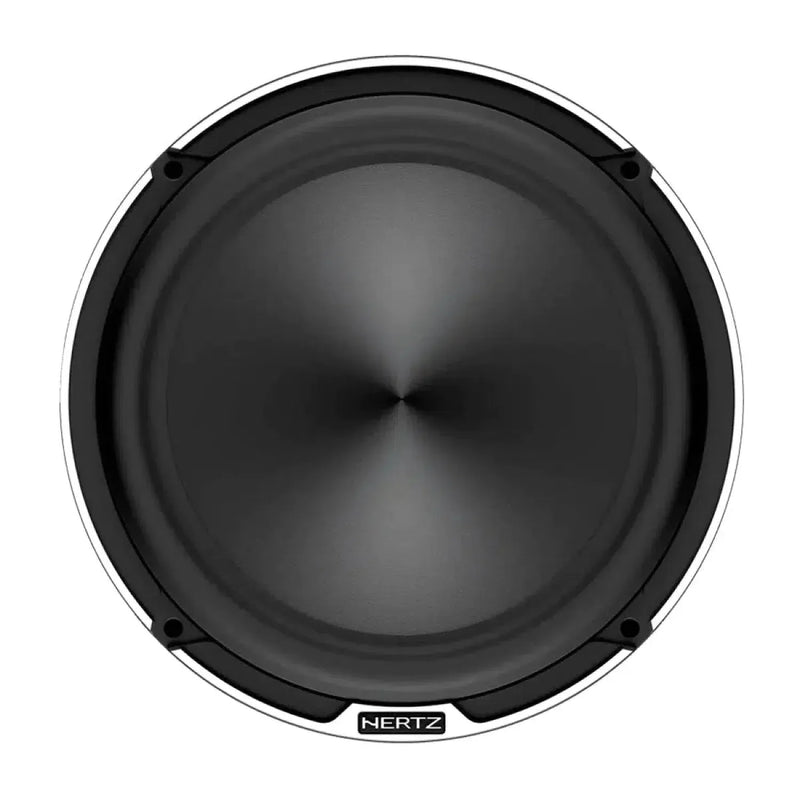

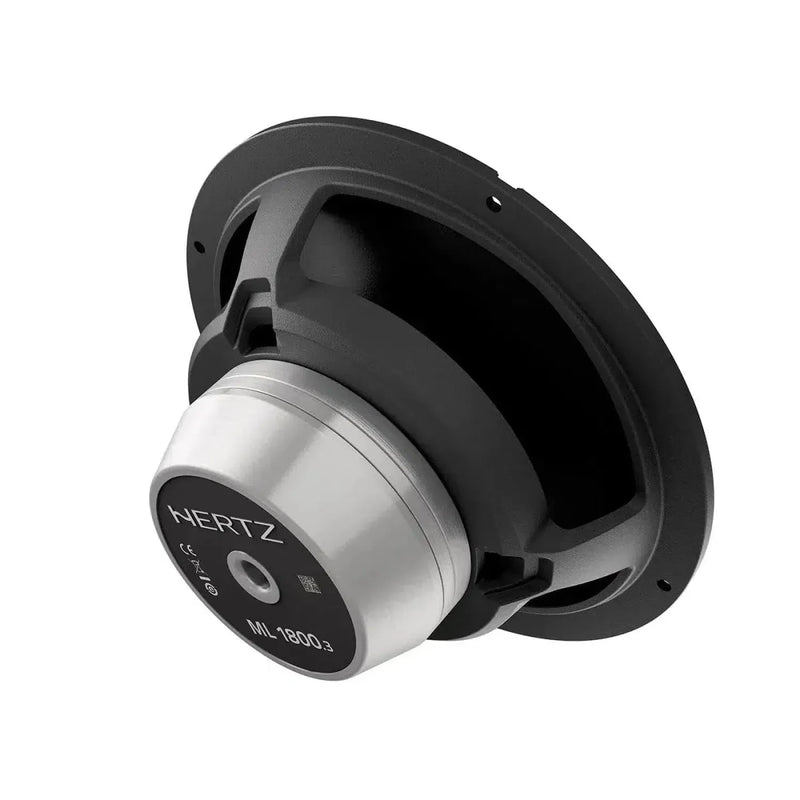

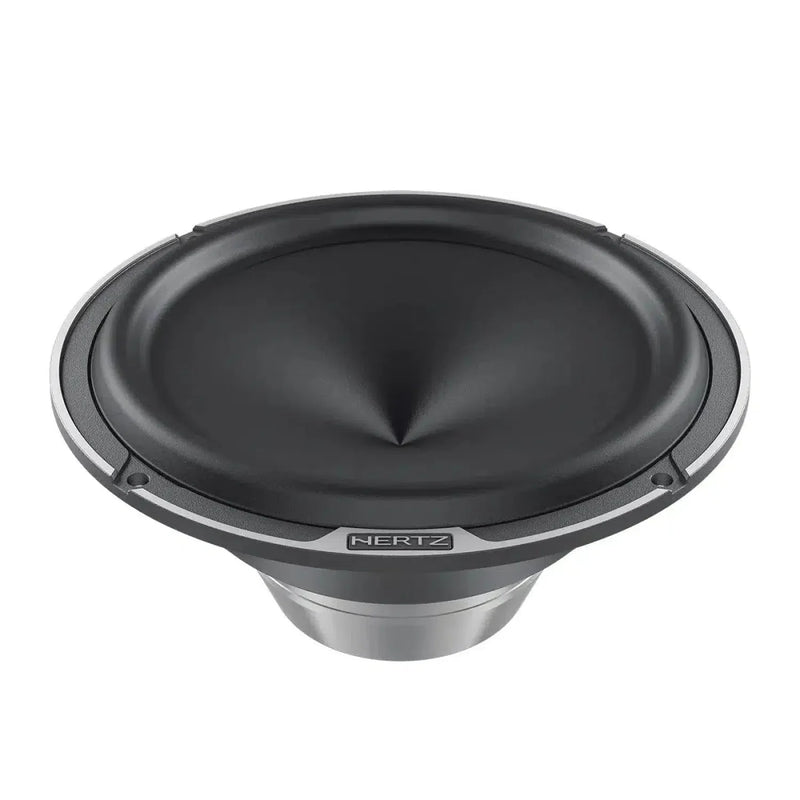

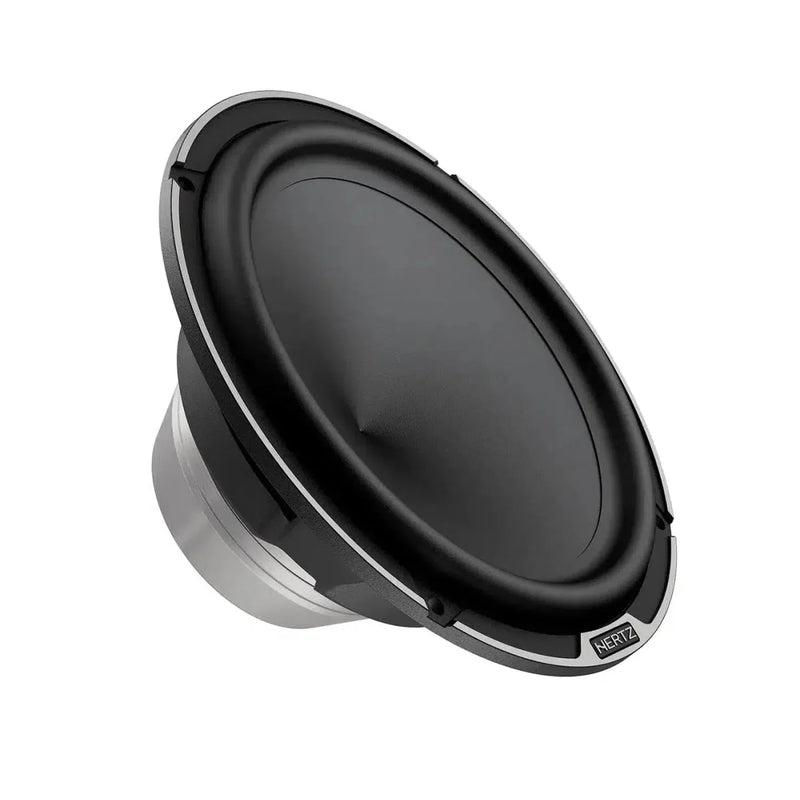

Hertz Mille Legend ML 1800.3 - 6.5 Inch Midwoofer for Precise Mid-Bass
The Hertz Mille Legend ML 1800.3 is a 6.5-inch midwoofer for ambitious front systems. It combines the known precision of the ML 1650.3 with more depth and higher control. The 50mm dual voice coil provides high thermal reserves, and the "Boundary Free Surround" increases the effective cone area for more sound pressure. Ideal if you are looking for a tight, controlled kick bass in the door with a clean transition to the mid-range. Available at Carhifi.shop.
Technical Data
- Size: 180 mm
- Power Handling (RMS): 200 W
- Power Handling (Peak): 400 W
- Impedance: 4 Ohm
- Voice Coil: Ø 50 mm (Dual)
- Frequency Response: 38 – 6,000 Hz
- Magnet Size (W x D x H): 90 x 60.7 x 5 mm
- Weight: 1.71 kg
- Magnet: Neodymium
- Cone: Pressed pulp cone with cotton fibers
- Xmech: ±10 mm
Physical Dimensions
- A: 184 mm
- B: 160 mm
- C: 88 mm
- D: 76 mm
- E: 189.2 mm
- F: 27 mm
Electro-acoustic Parameters
- D: 149 mm
- Re: 3.2 Ohm
- Fs: 60 Hz
- Le: 0.35 mH
- Vas: 12.2 l
- Mms: 27.5 g
- Cms: 0.3 mm/N
- BL: 7.8 T·m
- Qts: 0.50
- Qes: 0.53
- Qms: 7.22
- SPL: 93 dB

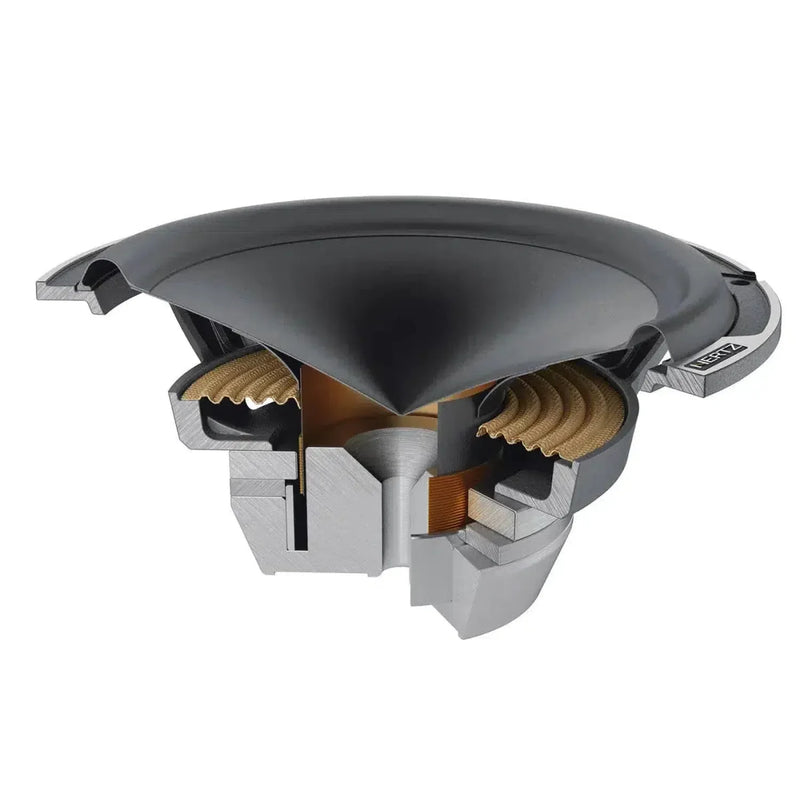

Technical Highlights
- Neodymium magnet, FEA optimized for dynamic control even under high load.
- CNC-machined plates made of low-carbon material for high magnetic conductivity and low distortion.
- Aluminum-coated poles for linear impedance modulation and reduced distortion.
- 50mm CCAW dual voice coil on polyamide former for high power handling and low compression playback.
- Exponential V-cone with optimized geometry for linearity and wide dispersion.
- “Boundary Free” IIR rubber surround for more efficiency and extended mid-bass range.
- Pressed pulp cone with cotton fibers: high rigidity with low weight, wide frequency range.
- Three-spoke, acoustically open and resonance-free aluminum alloy basket with ventilation openings.
- CNC-machined, diamond-cut basket trim with Hertz logo.
- Standard aluminum grille with diamond-cut Hertz logo.
Installation & Compatibility
The ML 1800.3 is suitable as a powerful midbass in 2-way or 3-way front systems, actively or passively operated. A stable amplifier with clean control at 4 Ohm and about 200 W RMS per channel is ideal. It plays powerfully and precisely in doors, doorboards, or compact enclosures.
