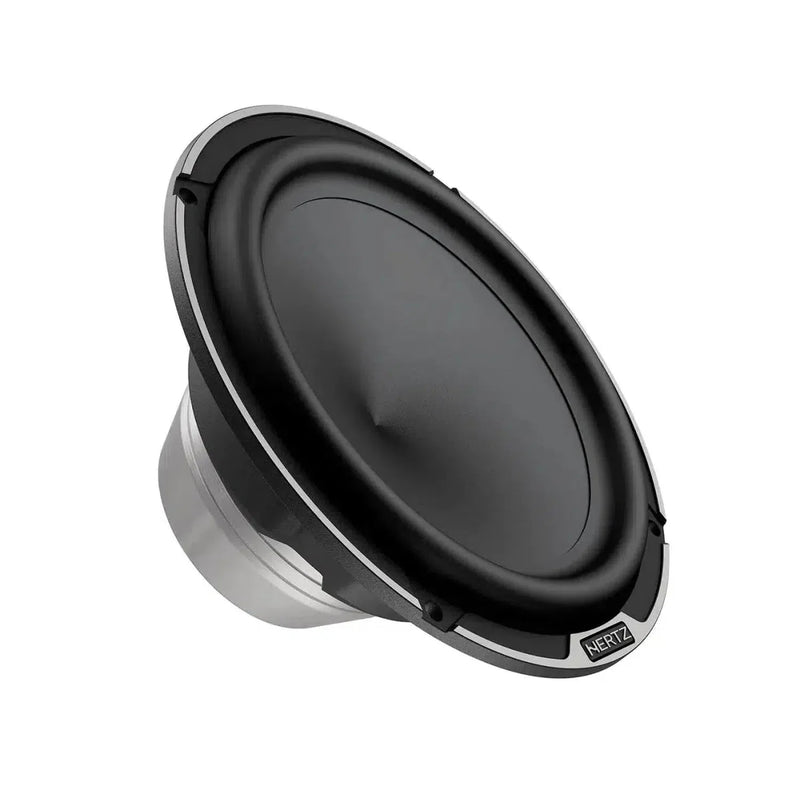

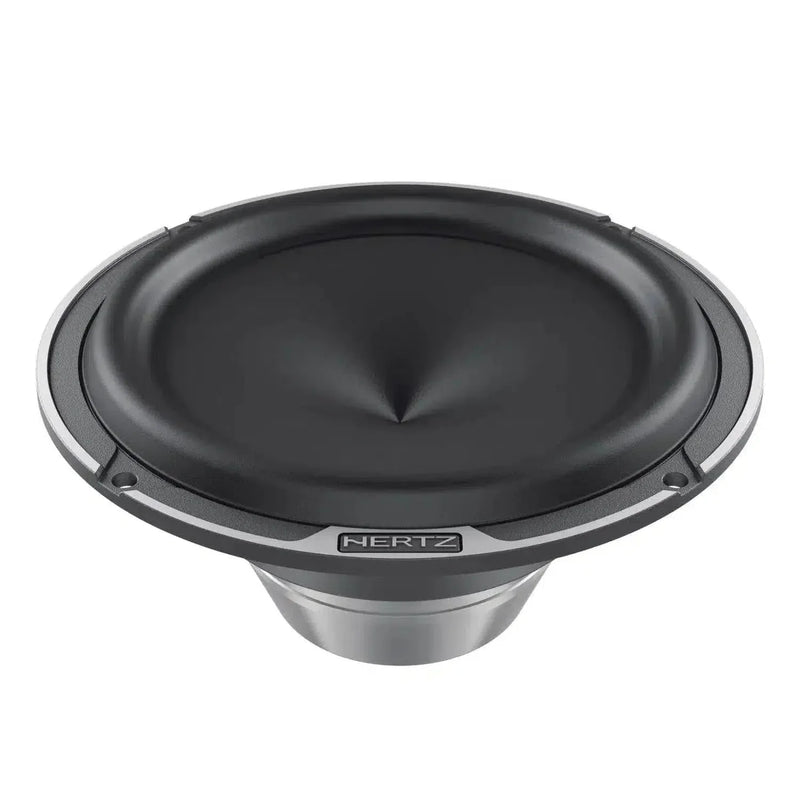

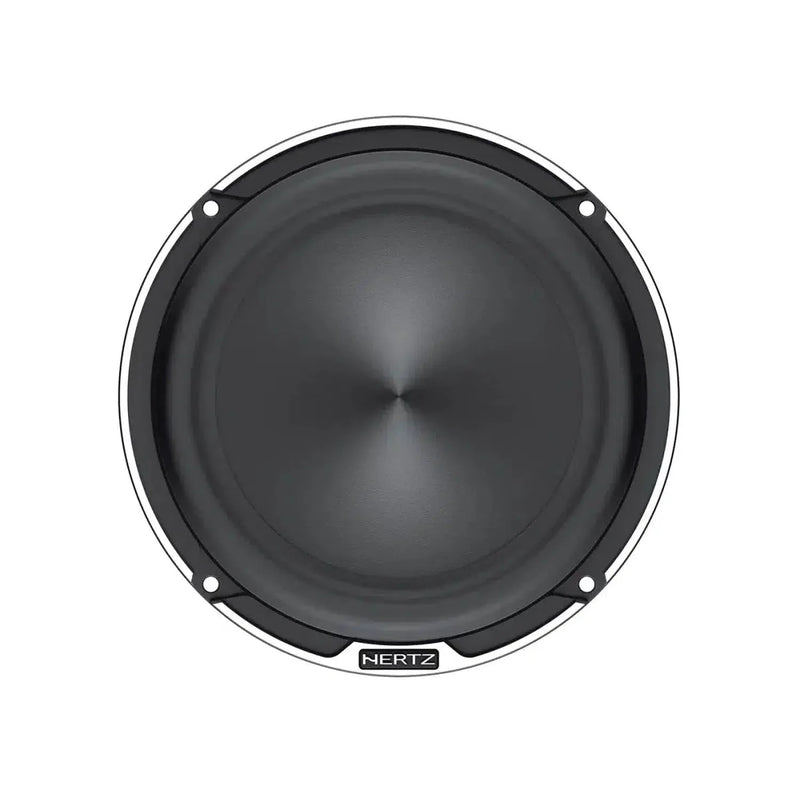

Hertz Mille Legend ML 1650.3 - 16.5 cm Mid-Woofer for Precise Mid-Bass
The Hertz Mille Legend ML 1650.3 is a 6.5-inch (16.5 cm) mid-woofer for high-performance door installations. Featuring a neodymium motor, 36mm CCAW dual voice coil, and a stiff pulp cone with cotton fibers, it delivers controlled mid-bass and clean mids. The usable frequency range extends from 40 Hz to 6.5 kHz, with 93 dB efficiency and 4 Ohm impedance â ideal for high-quality 2-way front systems, whether passive or active via DSP. Available at Carhifi.shop.
Technical Highlights

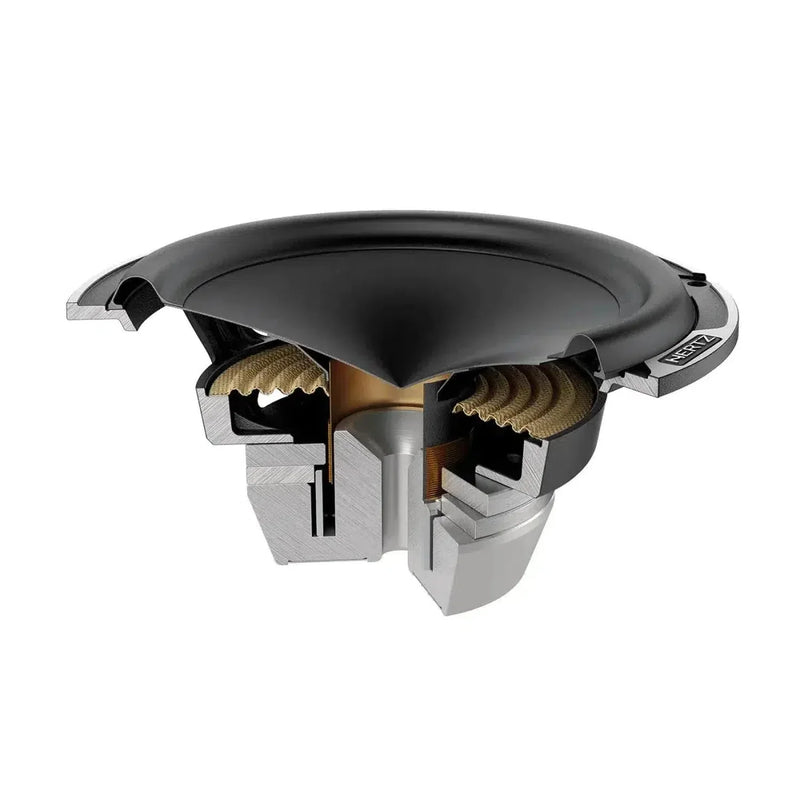

For maximum control and low distortion, the ML 1650.3 utilizes an FEA-optimized neodymium motor, low-carbon CNC-machined steel plates, and aluminum-coated pole pieces for linear impedance control. The 36mm dual CCAW voice coil on a polyamide former offers high thermal stability. The Exponential V-cone geometry and "Boundary Free" IIR rubber surround improve efficiency and dispersion, while the three-spoke aluminum basket with ventilation ensures mechanical stability.
Technical Data
- Component: Woofer (Mid-woofer application)
- Size: 165 mm (6.5 inches)
- Power Handling (RMS): 125 W
- Power Handling (Peak): 250 W
- Impedance: 4 Ohm
- Voice Coil: Ă 36 mm (CCAW, dual)
- Frequency Response: 40 â 6,500 Hz
- Magnet: Neodymium, Size 80 x 45 x 5 mm
- Weight: 1.29 kg
- Cone: Pressed pulp cone with cotton fibers
- Xmech: ±9 mm
Physical Specifications
- A: 165 mm
- B: 141 mm
- C: 80 mm
- D: 69 mm (Mounting Depth)
- E: 170 mm
- F: 26 mm
Electro-Acoustic Specifications
- Effective Piston Diameter (D): 132 mm
- DC Resistance (Re): 3.3 Ohm
- Free Air Resonance (Fs): 65 Hz
- Voice Coil Inductance (Le): 0.24 mH
- Equivalent Volume (Vas): 8.3 l
- Moving Mass (Mms): 17.5 g
- Compliance (Cms): 0.3 mm/N
- Force Factor (BL): 7 T·m
- Total Q (Qts): 0.52
- Electrical Q (Qes): 0.52
- Mechanical Q (Qms): 5.3
- Efficiency (SPL): 93 dB
Features
- Neodymium magnet system optimized via FEA simulation â high dynamics and precise control.
- CNC-machined plates from low-carbon steel for maximum magnetic conductivity and low distortion at high power.
- Aluminum-coated pole pieces for linear impedance modulation and reduced distortion.
- 36 mm CCAW dual voice coil on polyamide former â high power handling and low-compression reproduction even during demanding passages.
- Exponential V-cone with optimized geometry for linear behavior and wide mid-range dispersion.
- "Boundary Free" IIR rubber surround for increased efficiency and extended mid-bass range.
- Pressed pulp cone with cotton fibers â stiff and lightweight for wide frequency response and controlled breakup.

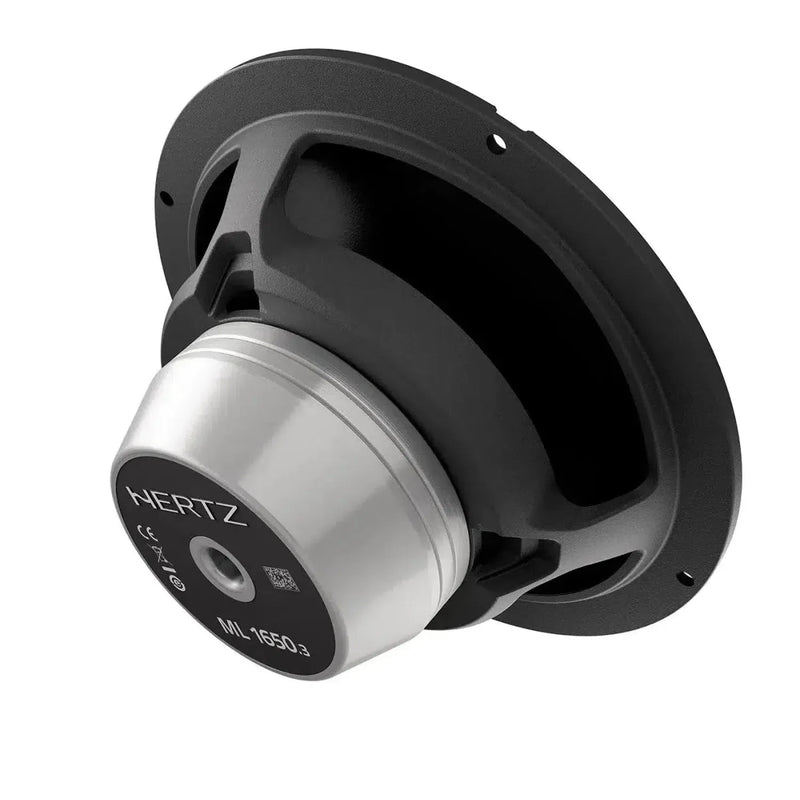

- Three-spoke, low-resonance basket made of aluminum alloy with integrated ventilation for thermal and mechanical stability.
- CNC-machined, diamond-cut trim and mounting ring with Hertz logo.

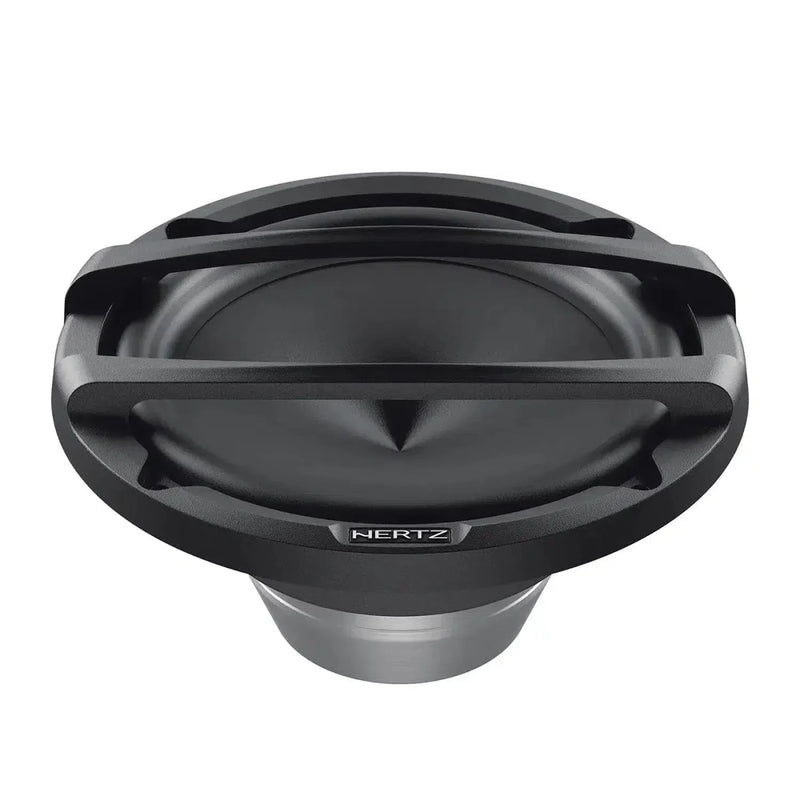

- Standard cast aluminum front grille with diamond-cut Hertz logo.
Installation & Compatibility
The ML 1650.3 fits into the common 165 mm class and is suitable for door and kick panel positions. With a 141 mm mounting hole and 69 mm mounting depth, it can be installed in many vehicles. Stable adapter rings and solid door insulation are recommended. Operation can be passive with high-quality crossovers or active via DSP; the wide bandwidth allows flexible crossover to the subwoofer and tweeter.
