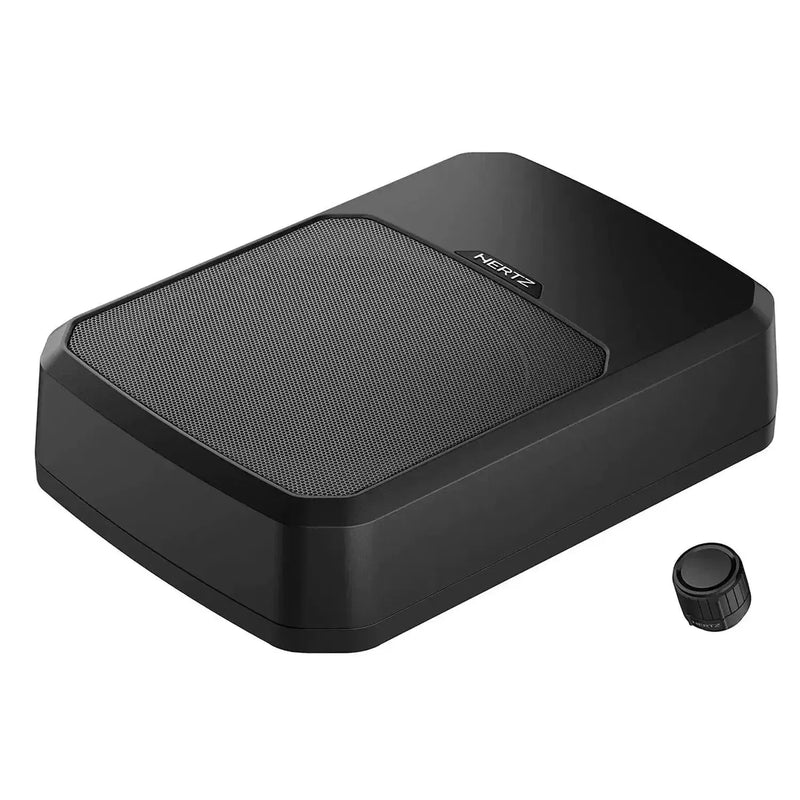

Hertz DBA 201F - Super Flat 8-inch Active Enclosed Subwoofer for Precise Bass

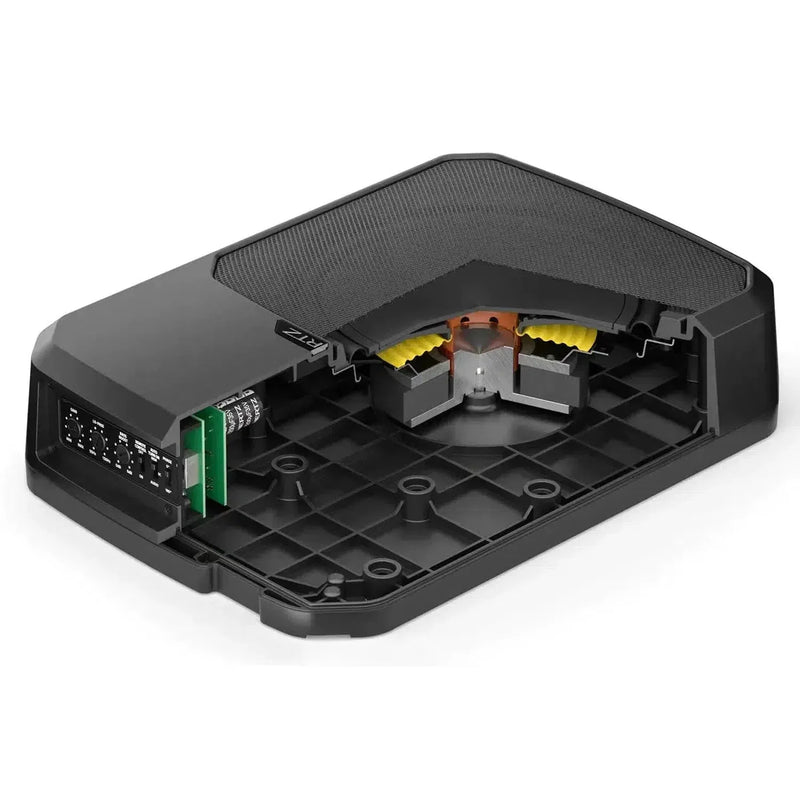

The Hertz DBA 201F is an active, particularly flat 8-inch enclosed subwoofer that requires little space yet delivers commanding deep bass. Its sealed super-flat enclosure was optimized using FEM simulation. This keeps the diaphragm controlled even at high excursions, giving you clean, defined bass in your vehicle.

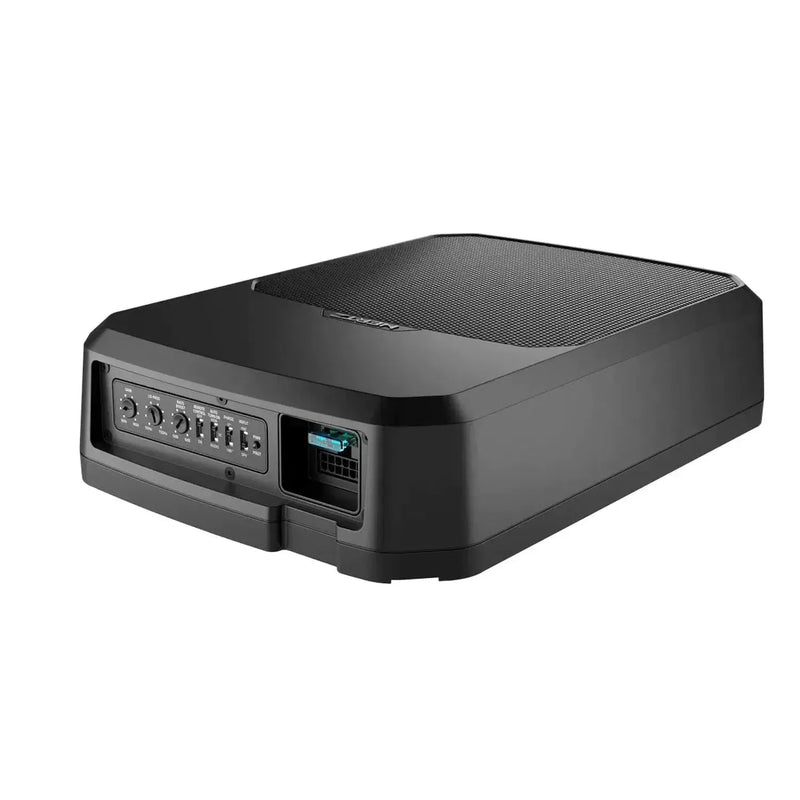

Several options are available for integration into existing systems. The DBA 201F can be connected via low-level or high-level inputs and switches on automatically when needed – via remote, via the PRE signal (from 10 mV), or via DC detection at the speaker input. Thanks to its wide operating voltage and start-stop capability, it runs stably in everyday use.
Technical Highlights
- Size: 200 mm
- Power Handling (RMS): 220 W
- Power Handling (Peak): 440 W
- Impedance: 0.4 Ohm
- Construction: Super Flat, Sealed
- Voice Coil: Ø 38.6 mm
- Frequency Response: 32 - 400 Hz
- Magnet Size (W x D x H): 110 x 45 x 17 mm
- Weight: 4.3 kg
- Magnet Material: High Density Flux Ferrite
- Cone: Pressed Paper
- Voice Coil Type: Copper
- Operating Voltage: 6.5 - 18 V DC (Fuse 15 A)
- Start-Stop Voltage: 6 V DC
- Consumption at 14.4 V DC (max. music power): 8.5 A
- Remote IN Turn On: 4 V DC (1 mA)
- PRE Input Signal Turn ON: 10 mV RMS
- SPK Input DC Turn On: 2 V DC
Installation & Compatibility
Thanks to its flat, sealed enclosure, the Hertz DBA 201F is ideal for vehicles with limited space, for example, in the trunk or behind seats. The combination of high-level and low-level inputs makes it compatible with factory radios and aftermarket head units. Auto Turn-On simplifies retrofitting without a separate remote output. With its 15A fuse and wide voltage range, the subwoofer is suitable for everyday use – even in start-stop vehicles.
