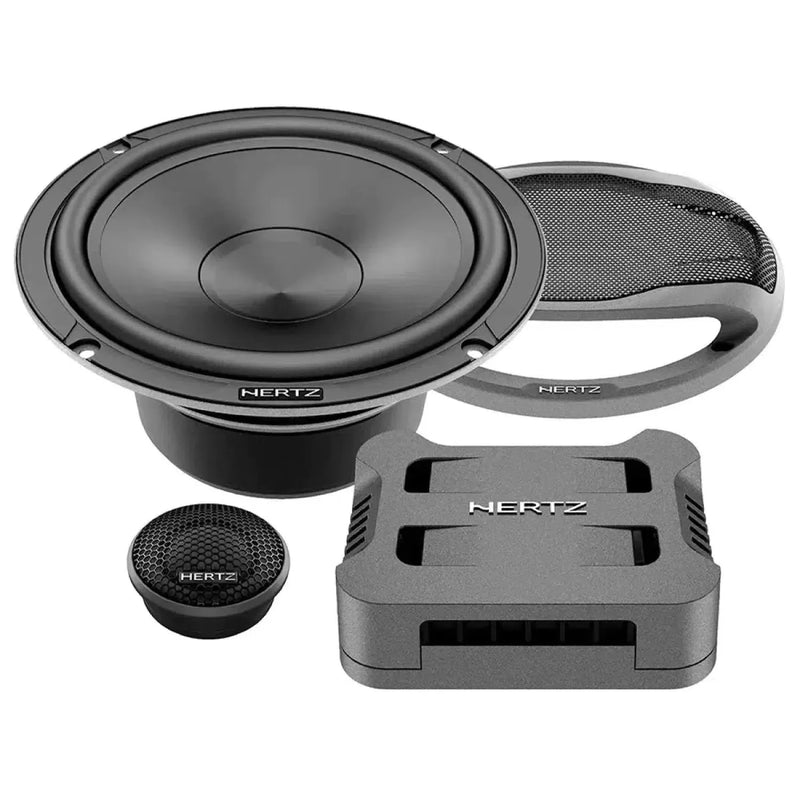

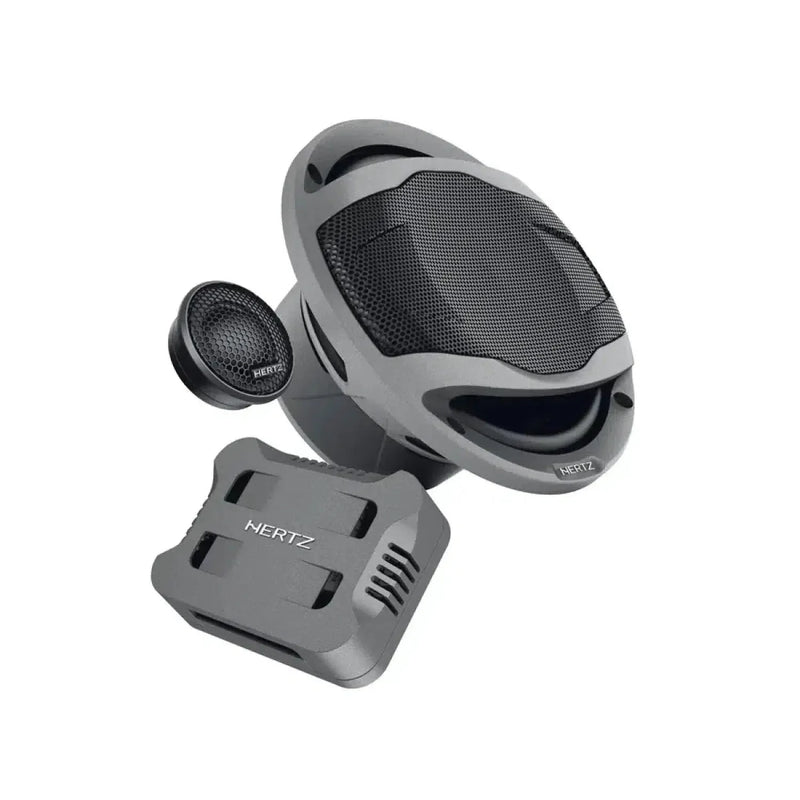

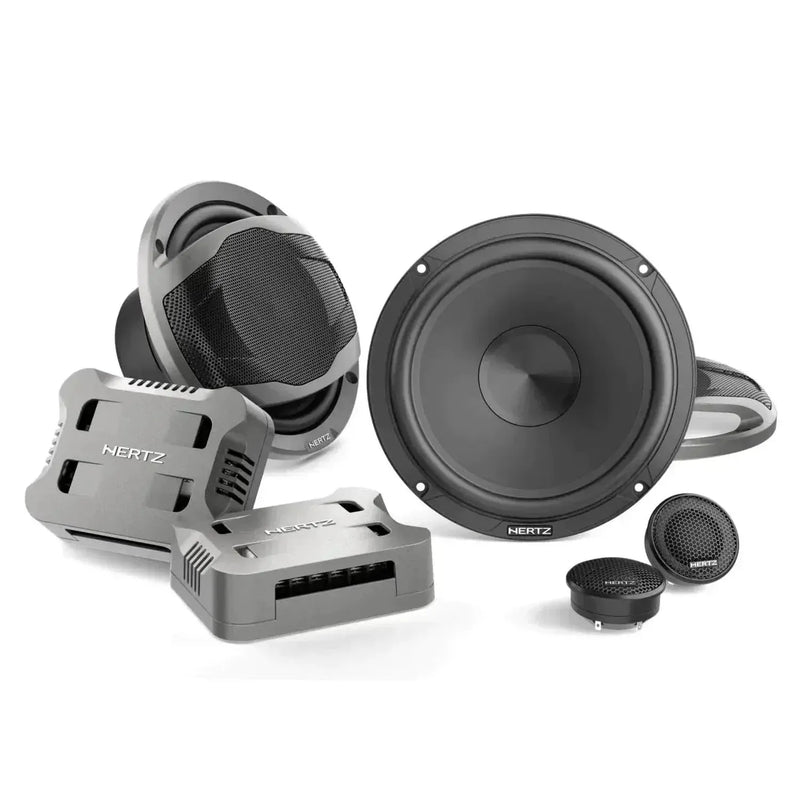

Hertz Cento Pro CPK 165 - 16.5 cm 2-Way Front System for Clear Treble and Powerful Bass
The Hertz Cento Pro CPK 165 is a 2-way component system that precisely and balancedly reproduces your vehicle's sound. It combines the CP 165 woofer with the CP 25 tweeter for a wide, linear frequency response. The Center Tuning Duct technology optimizes air exchange in the chassis and helps control resonances. Light, well-damped materials and a low resonance frequency of the woofer ensure clean bass and detailed mids. With the passive 2-way crossover, you safely separate at 2.8 kHz â ideal for a cohesive soundstage and clear treble. Available at Carhifi.shop.
Technical Highlights
- Size: 165 mm (6.5 inches)
- Power Handling (RMS): 105 W
- Power Handling (Peak): 315 W
- Impedance: 4 Ohm
- Tweeter Diaphragm: 29 mm
- Woofer Voice Coil: Ă 25 mm
- Tweeter Voice Coil: Ă 25 mm
- Sensitivity: 92.5 dB SPL
- Frequency Response: 45 Hz â 22.5 kHz
- Crossover Frequency: 2.8 kHz, 12 dB/Oct.
- Crossover Type: Passive 2-Way Crossover
- Woofer Weight: 1.07 kg
- Tweeter Weight: 0.07 kg
- Crossover Weight: 0.2 kg
Electro-Acoustic Parameters
- Effective Membrane Diameter (D): 131.5 mm
- DC Resistance (Re): 3.3 Ohm
- Free-Air Resonance (Fs): 60 Hz
- Voice Coil Inductance (Le): 0.3 mH
- Equivalent Volume (Vas): 11.5 l
- Moving Mass (Mms): 15.4 g
- Compliance (Cms): 0.44 mm/N
- Force Factor (BL): 5.45 T·m
- Total Q Factor (Qts): 0.57
- Electrical Q Factor (Qes): 0.66
- Mechanical Q Factor (Qms): 4.3
- Sound Pressure Level (SPL): 92.5 dB
Installation & Compatibility
The CPK 165 fits into the 165 mm class and operates at 4 Ohm â ideal for many factory and aftermarket radios as well as powerful amplifiers. The external, passive 2-way crossover facilitates clean separation between the CP 165 and CP 25. Position the 29 mm tweeter as close to ear level as possible (e.g., A-pillar or mirror triangle) to improve the soundstage. For dynamic reserves, an amplifier power of around 100 W RMS per channel is recommended.
