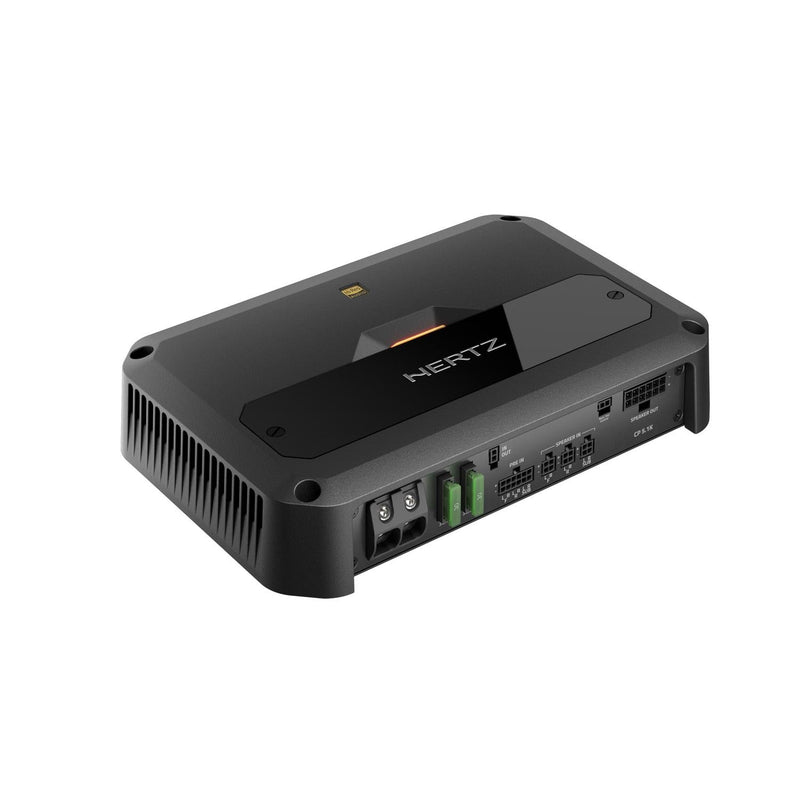

Hertz Cento CP 5.1K

Hertz Cento CP 5.1K - 5-Channel Class-D Amplifier for Front/Rear + Subwoofer

The Hertz Cento CP 5.1K is a 5-channel Class-D amplifier that cleanly powers your entire front, rear, and subwoofer system. It combines high efficiency with clear performance, flexible filters, and auto-turn-on via the speaker inputs – ideal if you're looking for a compact, all-in-one solution that's easy to integrate.

Technical Highlights

• 5-channel amplifier (fully bridgeable), Class D
• Hi-Res Audio certified
• Frequency range according to manufacturer's text: 10 Hz – 41 kHz
• Bandwidth @ -3 dB: 10 Hz – 47 kHz (Front/Rear), 10 Hz – 500 Hz (Sub)
• Signal-to-noise ratio (A-weighted @ 1 V input): 101 dBA (Front/Rear), 116 dBA (Sub)
• Distortion (THD @ 100 Hz, 70 % rated power): 0.01 % (Front/Rear), 0.06 % (Sub)
• Damping factor @ 1 kHz, 1 W: 160 (Front/Rear), 180 (Sub)
• Efficiency: 83 % (datasheet); Manufacturer's statement in text: over 85 %
• Power supply: 9 – 18 VDC; Rated range 11 – 15 VDC
• Integrated fuses: 2 x 30 A
• Idle current: 1.90 A; Standby: 4 µA
• Current draw at minimum load (max. music power): 48 A
• Remote IN: 4 – 17 VDC (1 mA)
• ART Auto-Remote On/Off via SPK-IN (BTL radio only): 1.5 VDC

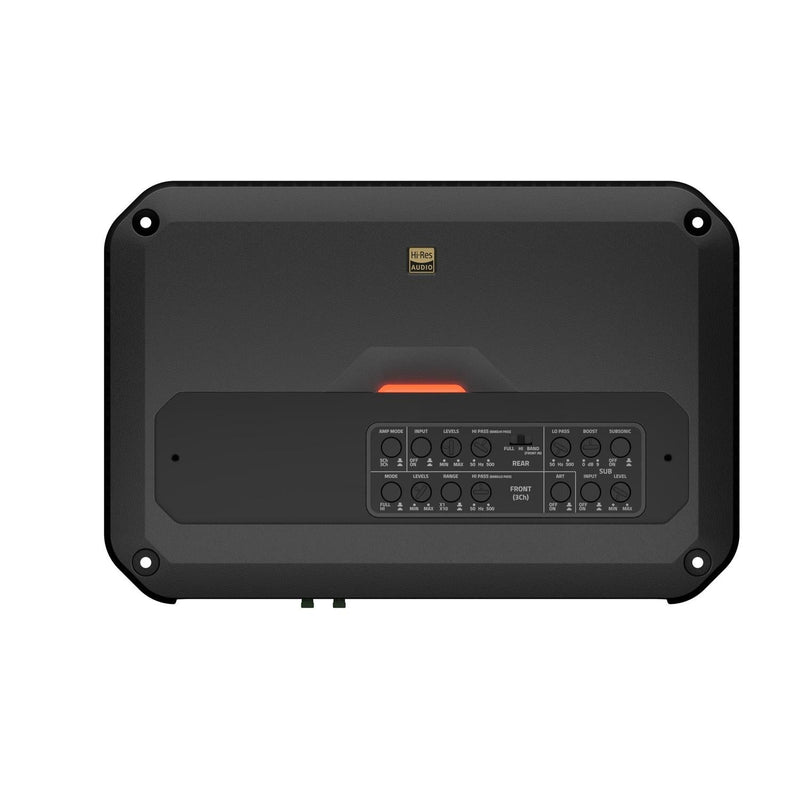

• Adjustable crossovers: yes; adjustable input levels
• Ready to Plug connectivity
• Compact cast aluminum housing

Power & Loads

• Minimum load impedance (5-channel operation): 2 Ω
• Minimum load impedance (3-channel operation): 4 Ω + 4 Ω + 2 Ω
• Output power (RMS @ 1 % THD):
• – 5 channels @ 4 Ω: 80 W x 4 + 330 W x 1
• – 5 channels @ 2 Ω: 130 W x 4 + 510 W x 1
• – 3 channels @ 2 Ω / 4 Ω: 260 W x 2 + 510 W x 1
• – 2 channels @ 4 Ω: 260 W x 2 + 320 W x 1
• Total power: 1030 W

Installation & Compatibility

The CP 5.1K fits into systems with a 12V electrical system and operates stably at 2-Ω loads in 5-channel mode. Thanks to SPK-IN with ART (Auto-Turn-On), you can integrate it with factory radios with BTL output without a separate remote signal. The fully bridgeable architecture allows for conversion to 3-channel setups (front bridged + sub) or powerful 2-channel configurations. Adjustable input levels and crossovers facilitate clean tuning.

Available at Carhifi.shop.
