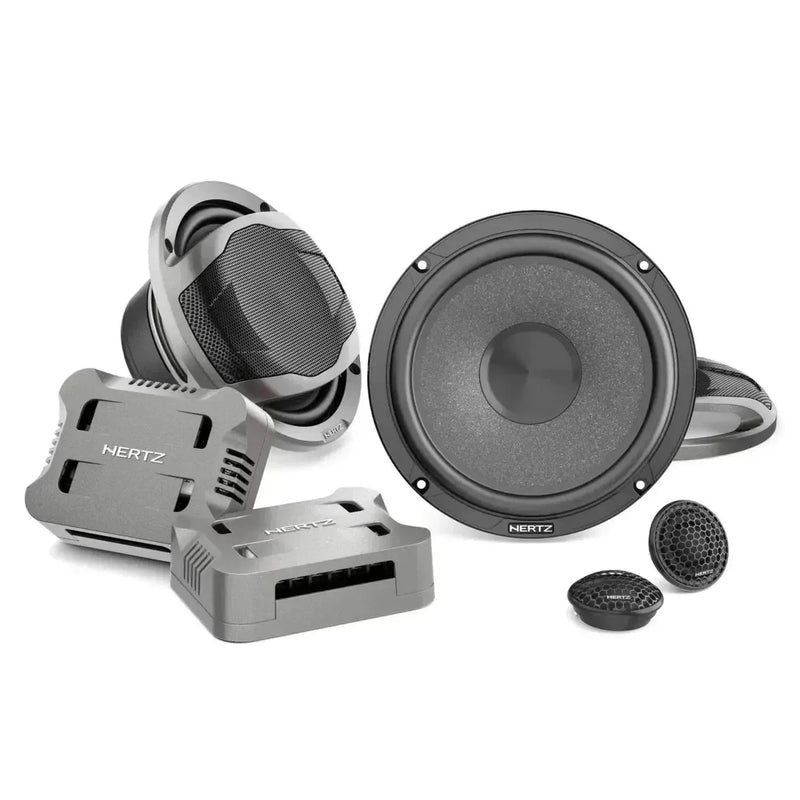

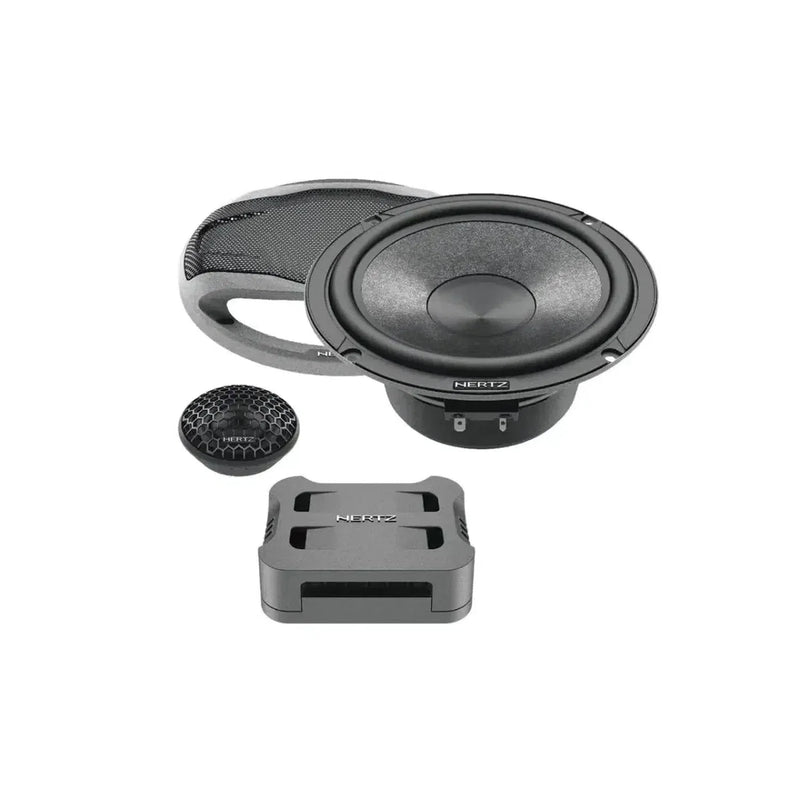

Hertz Cento CK 165 - 16.5 cm 2-Way Front System with Precise Treble and Powerful Mid-Bass
The Hertz Cento CK 165 is a 2-way component system for the vehicle front, delivering clean highs, present mids, and controlled mid-bass. At its core are the C 26 tweeter with a 26 mm Tetolon dome and 20 mm voice coil, and the C 165 mid-woofer with an SPP-M membrane. Ultra-compact CCX 2 crossovers, a balanced frequency response – even off-axis – and practical tweeter level adjustment ensure a harmonious setup for everyday use.
Technical Highlights
- 26 mm Tetolon dome (C 26) with 20 mm voice coil for natural, detailed highs
- 165 mm SPP-M (semi-pressed paper with mica) mid-woofer (C 165) for a good balance of lightness and damping
- Passive 2-way setup with 12 dB/oct. crossover at 2.5 kHz (CCX 2)
- Tweeter level adjustable via switch (0, +3 dB)
- RMS 95 W, Peak 285 W, 4 Ohm, 93 dB SPL
- Frequency response 55 Hz – 22.5 kHz
- Compact crossovers and protective grilles included
Construction in Detail

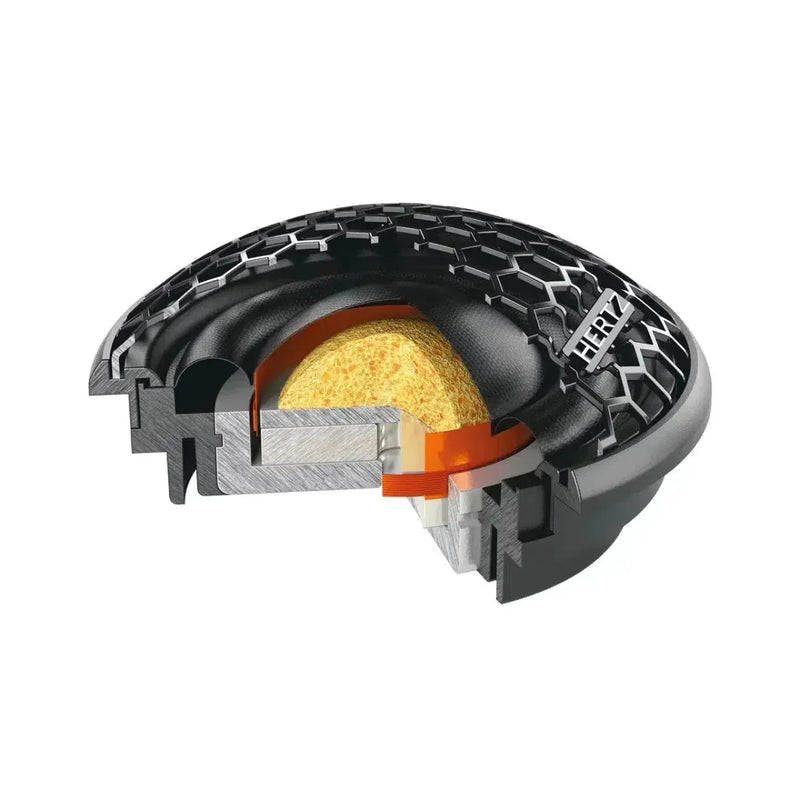

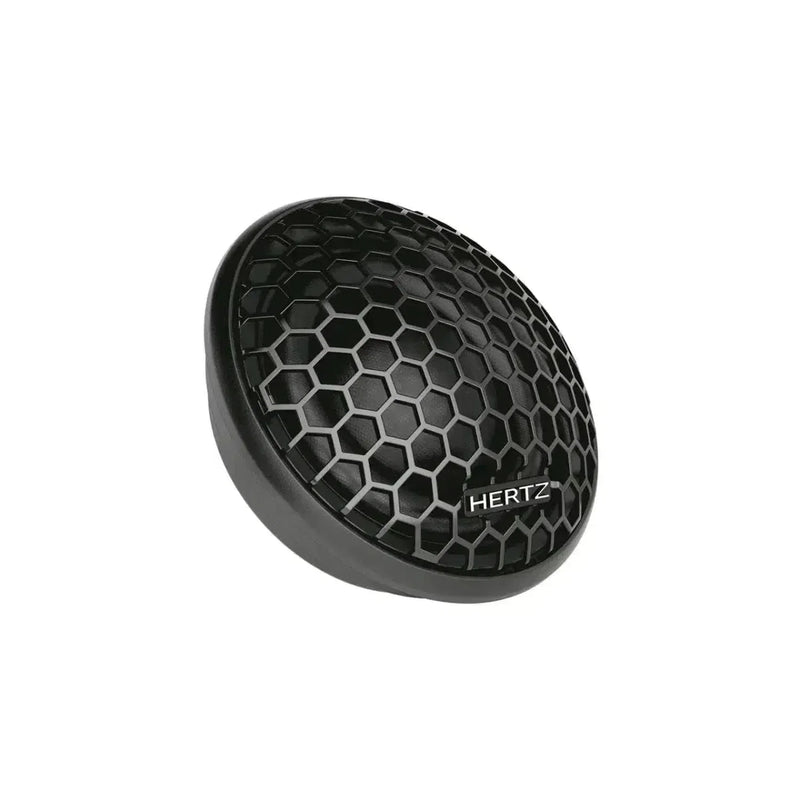

- C 26 Tweeter
- 26 mm Tetolon fiber dome and 20 mm (0.8") voice coil for natural, finely resolved high-frequency reproduction
- High-flux Neodymium magnet for precise control during dynamic transients in the mid/high range
- Front panel geometry optimized by FEM for linear frequency response in off-axis mounting
- Extensive accessories for integration into OEM positions

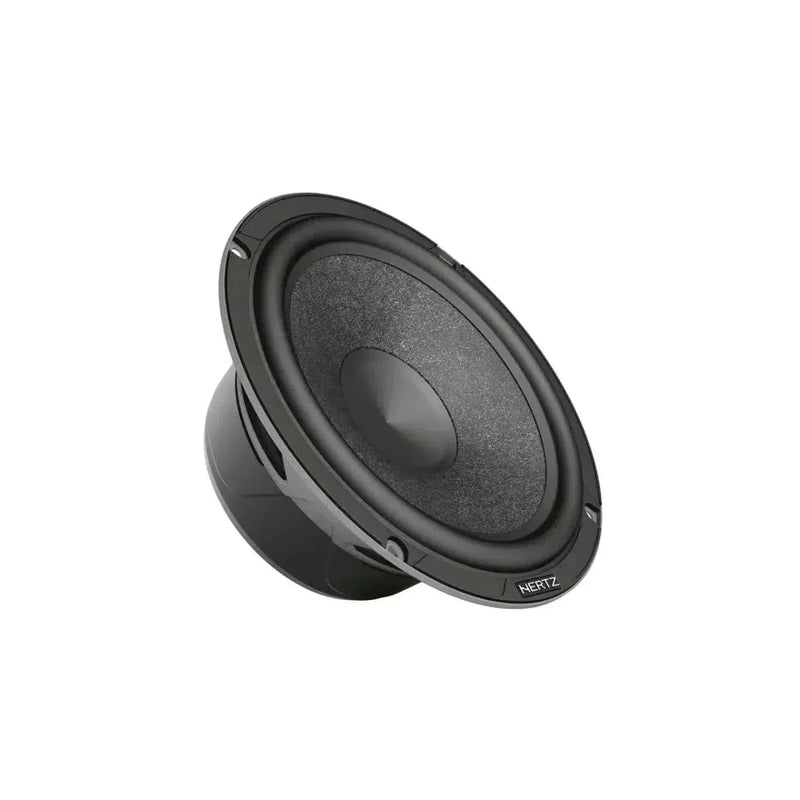

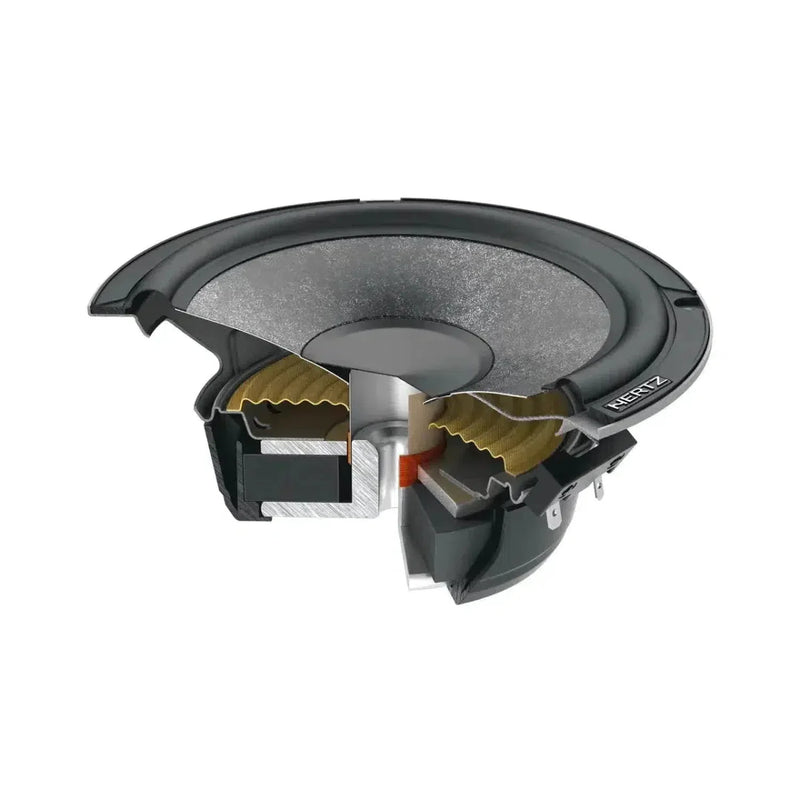

- C 165 Mid-woofer
- 165 mm SPP-M membrane (semi-pressed paper with mica) for balanced stiffness and damping
- High-density ferrite magnet and low-carbon pole plates for distortion reduction at high levels
- 25 mm (1") voice coil with aluminum former for high excursion and power handling
- Open three-spoke basket with rubber magnet cover to dampen disruptive vibrations

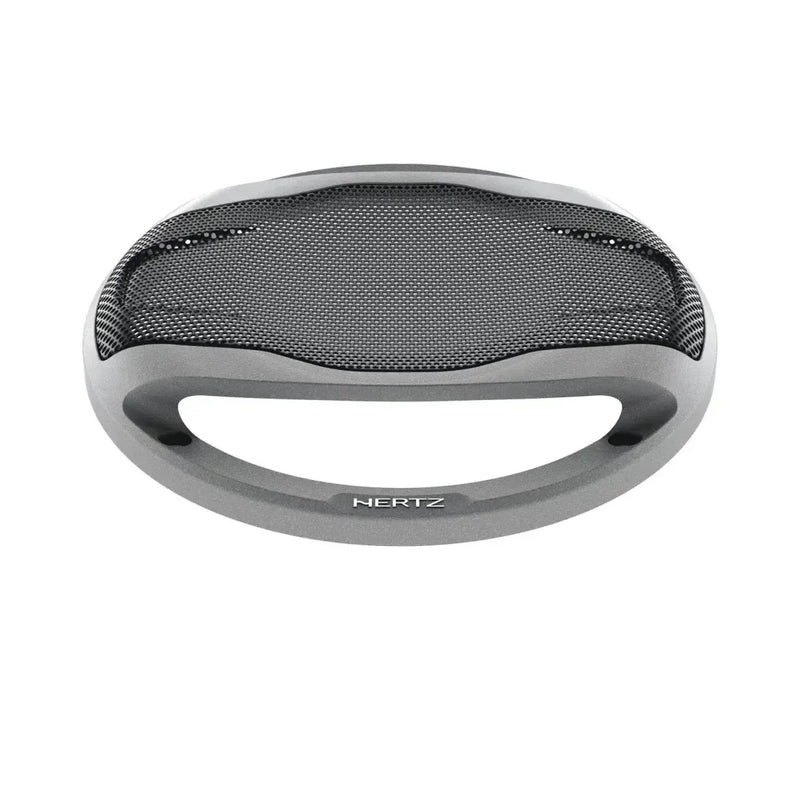

- ABS protective grille with metallic finish and additional metal grille

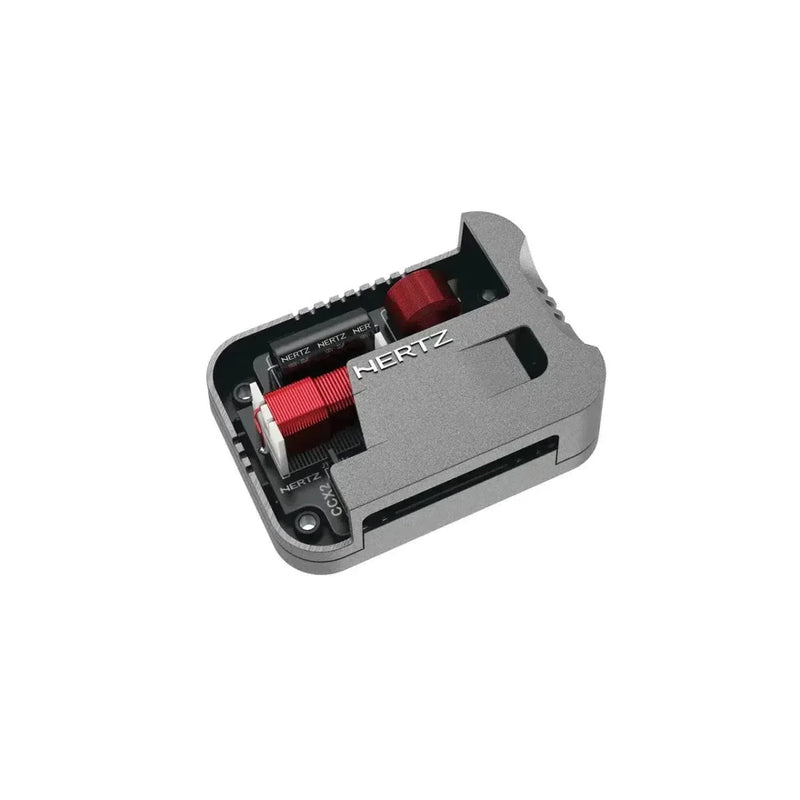

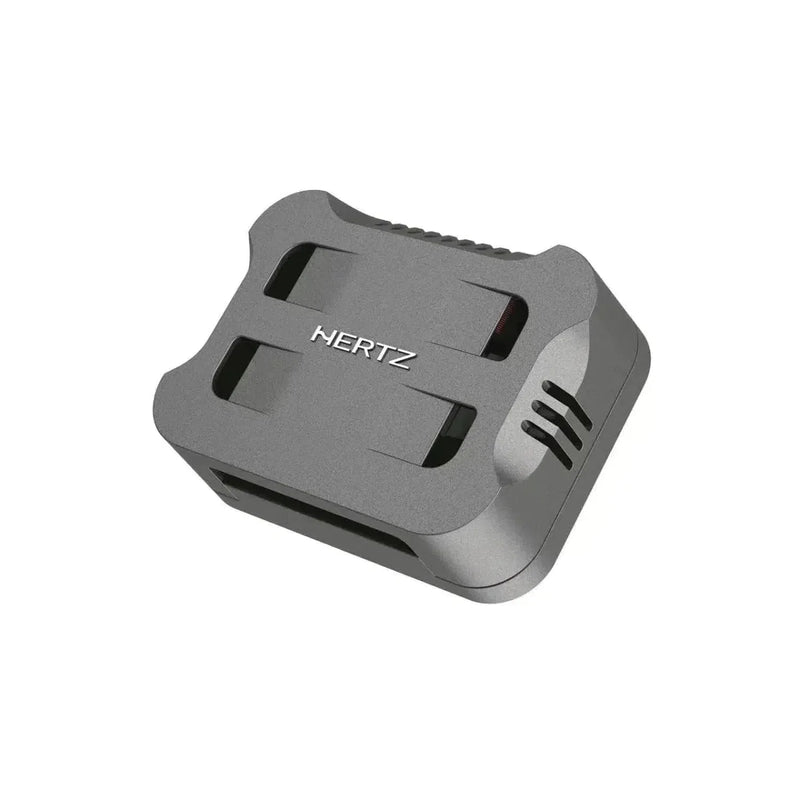

- CCX 2 Crossover
- Tweeter level adjustable via three-position switch (0, +3 dB)
- Low-loss capacitors and low-impedance inductors made of pure copper for high transparency
- Compact housing with metallic finish and ventilation for effective heat dissipation
Technical Data
- Size: 165 mm
- Power Handling (RMS/Peak): 95 W / 285 W
- Impedance: 4 Ohm
- Tweeter Diaphragm: 26 mm
- Woofer Voice Coil: Ø 25 mm
- Tweeter Voice Coil: Ø 20 mm
- Sensitivity: 93 dB SPL
- Frequency Response: 55 Hz – 22.5 kHz
- Crossover Frequency: 2.5 kHz @ 12 dB/oct.
- Crossover: Passive, 2-Way
- Woofer Weight (each): 0.96 kg
- Tweeter Weight (each): 0.03 kg
- Crossover Weight (each): 0.185 kg
Electro-acoustic Data
- D: 131.5 mm
- Re: 3.2 Ohm
- Fs: 60 Hz
- Le: 0.2 mH
- Vas: 13.24 l
- Mms: 13.9 g
- Cms: 0.51 mm/N
- BL: 4.9 T·m
- Qts: 0.59
- Qes: 0.69
- Qms: 3.9
- SPL: 93 dB
Installation & Compatibility
With a nominal size of 165 mm and compact crossovers, the Cento CK 165 fits many common door and OEM positions. The FEM-optimized tweeter front plays balanced even with off-axis alignment. The level switch helps you adapt the high frequencies to the vehicle interior and installation location. The system operates at 4 Ohm and is compatible with factory radios, DSP amplifiers, or classic 2-channel amplifiers.
