ESX Vision VX3000Pro

ESX VX3000Pro - 1-Channel Monoblock for Precise Subwoofer Control

The ESX VX3000Pro is a mono amplifier that powers your subwoofers with high continuous output and efficient Ultra Class D technology. It delivers 1200/2200/3300 watts RMS at 4/2/1 Ω, providing stable reserves for large systems. Separate RCA inputs for low and high level facilitate integration into factory and aftermarket radios. A massive aluminum heatsink ensures reliable heat dissipation, while the clipping LED and 3-way protection circuit secure operation. Available at Carhifi.shop.

Technical Highlights

• Mono Ultra Class D digital amplifier with efficiency up to 96%
• Classic ribbed aluminum heatsink for stable thermals
• Screwed RCA jacks and massive power and speaker terminals
• Clipping LED for signal control and 3-way protection circuit
• Variable Bass Boost: 0–12 dB adjustable at 30–70 Hz

Power & Filters

• Power: 1 x 1200/2200/3300 Watts RMS @ 4/2/1 Ω
• Subsonic filter: 10–100 Hz
• Low Pass (LPF): 50–5000 Hz
• Bass Boost: 0–12 dB @ 30–70 Hz

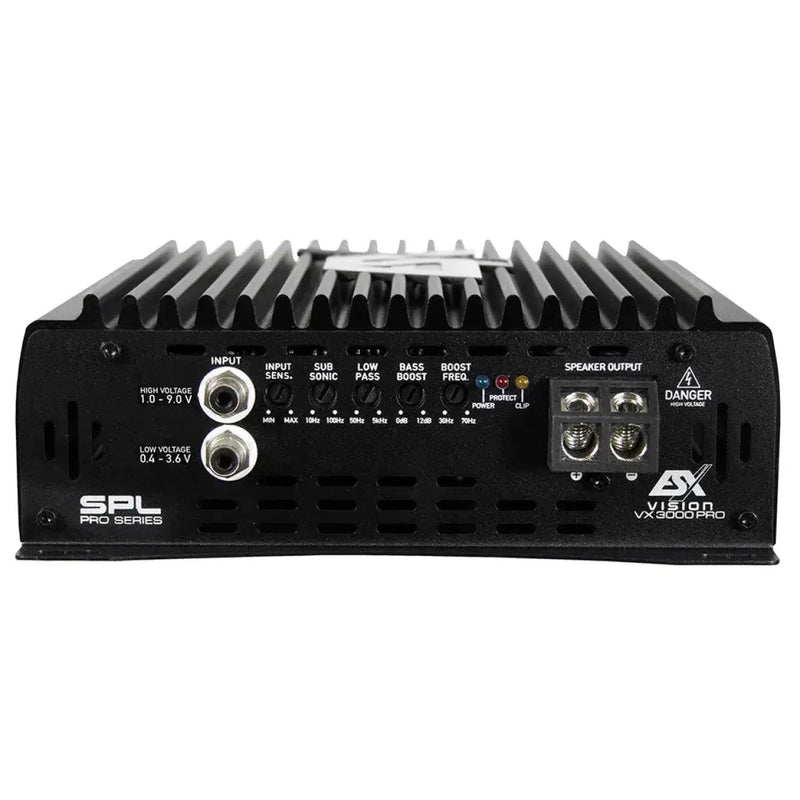

Connections & Signal

• RCA low-level input (mono): 0.4–3.6 V
• RCA high-level input (mono): 1.0–9.0 V

Dimensions

• 191 x 66 x 230 mm

Installation & Compatibility

The VX3000Pro is designed as a 1-channel monoblock for subwoofer systems. Thanks to low- and high-level RCA, it can be operated with both aftermarket head units and many OEM radios. The robust connection terminals support secure wiring, and the compact design facilitates placement in the vehicle.
