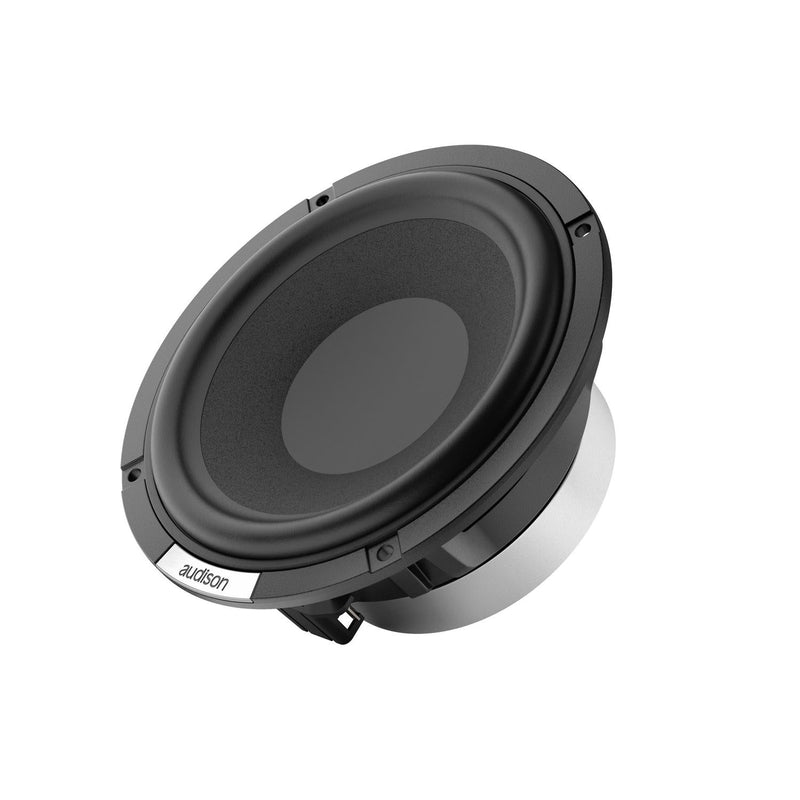

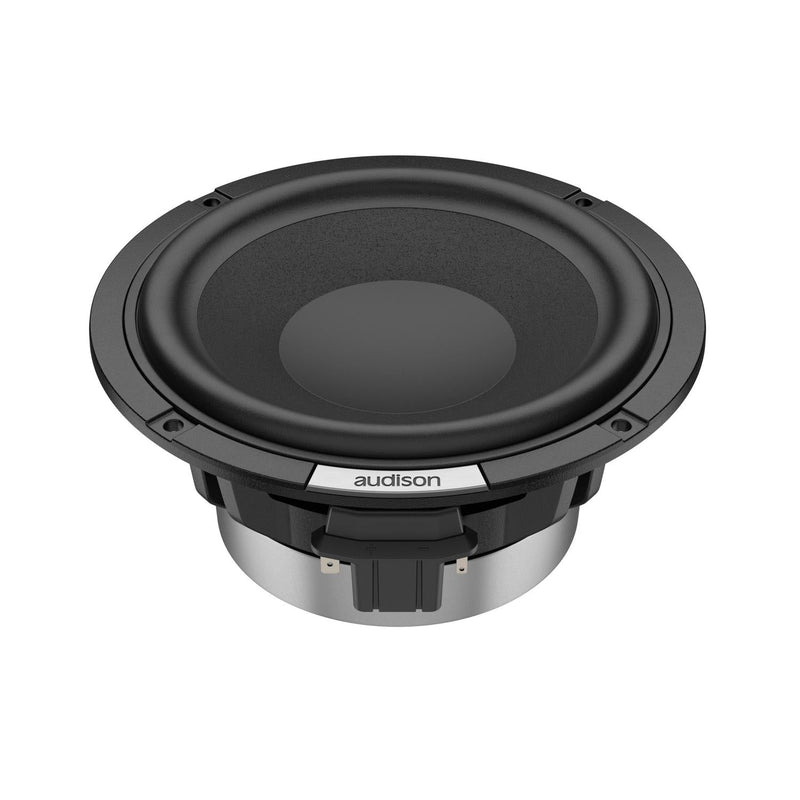

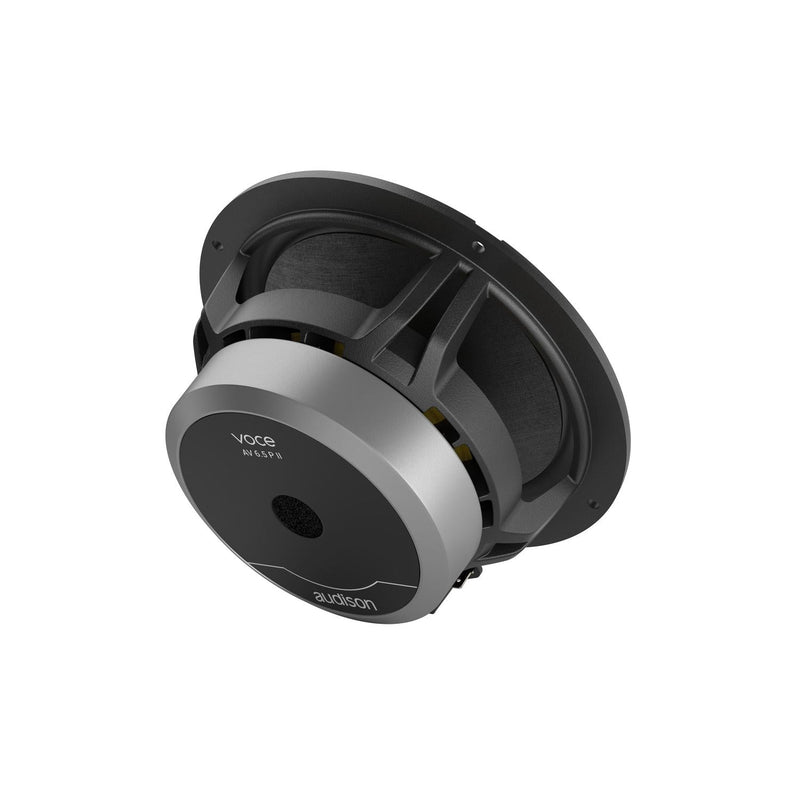

Audison Voce II AV 6.5 P II - 165 mm 4-Ohm Midwoofer for Precise In-Car Sound
The Audison Voce II AV 6.5 P II is a 165 mm midwoofer that delivers clean mids and controlled bass in the door or in custom installations. The construction with a 40 mm CCAW voice coil, FEM-optimized magnetic system, and low inductance ensures efficient drive, low distortion, and stable performance even during longer sessions. Thanks to its natural roll-off, it can be driven very well with gentle 6 dB/oct. filters â ideal for high-quality 2-way or active setups. Optional metal grilles in black or silver complete the installation.
Technical Highlights

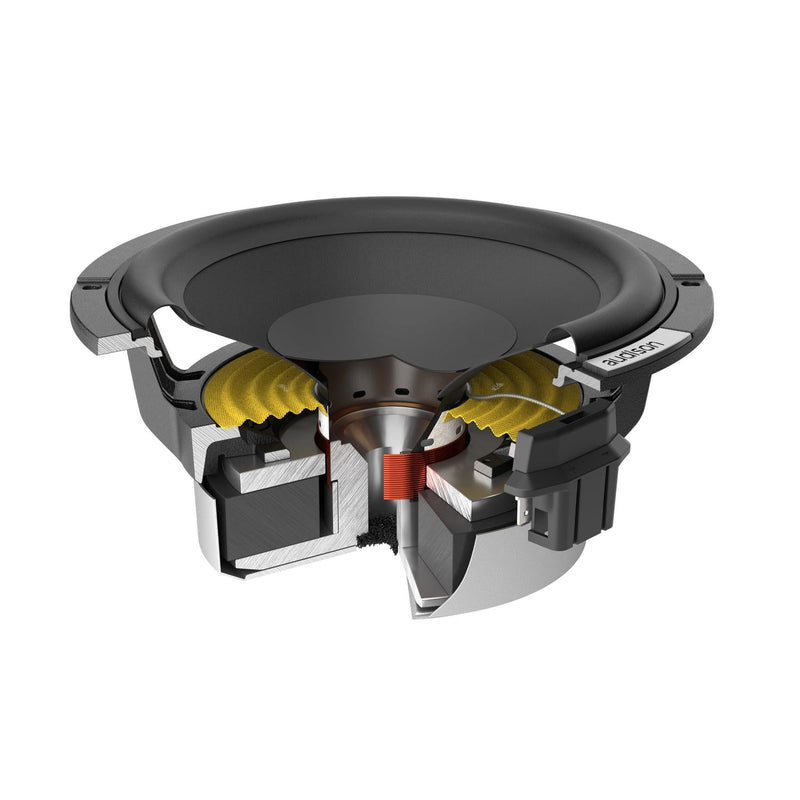

- 40 mm CCAW voice coil for high excursion and good heat dissipation
- Low inductance for clean reproduction in the upper mid-range
- Oversized magnet assembly for high thermal stability
- FEM-optimized magnetic circuit geometry to increase efficiency
- Semi-pressed cellulose cone with cotton fibers for a wide frequency range
- Die-cast aluminum components to support cooling
- Butyl rubber surround with high-excursion characteristics for linear travel

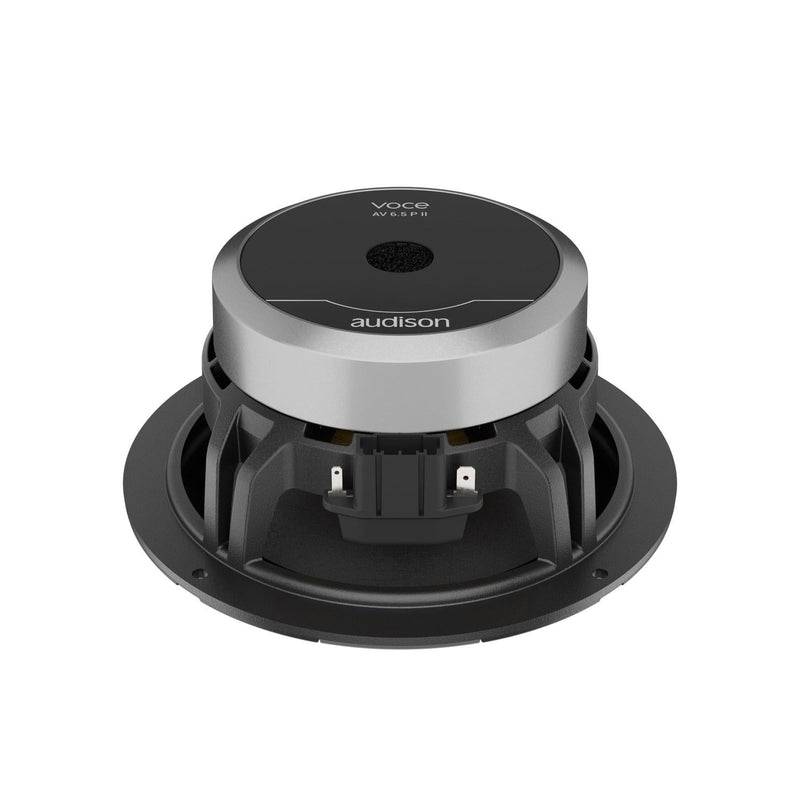

- Practical OEM and FASTON connectors for flexible integration

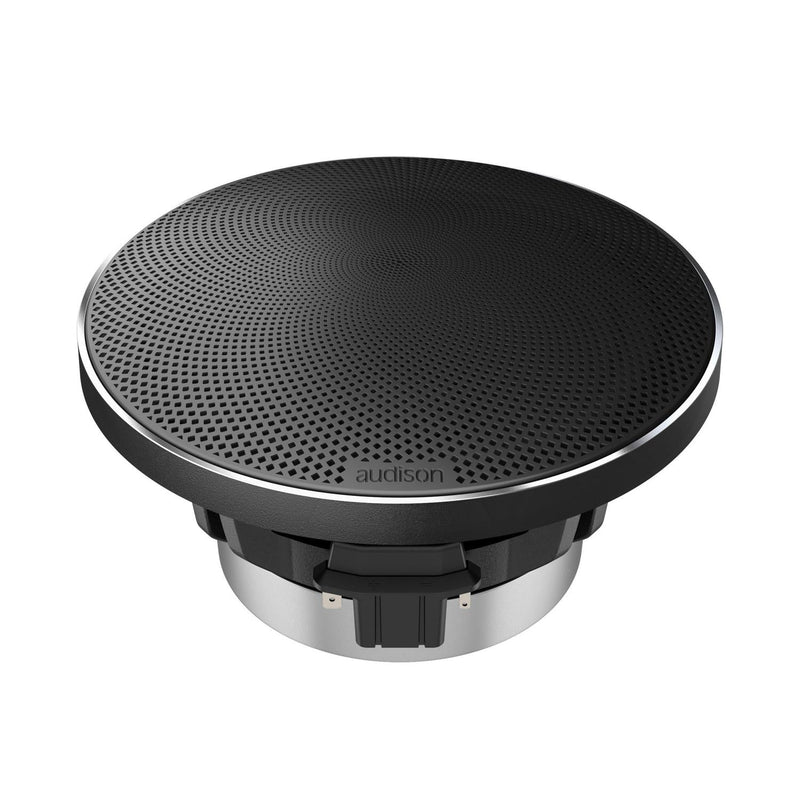

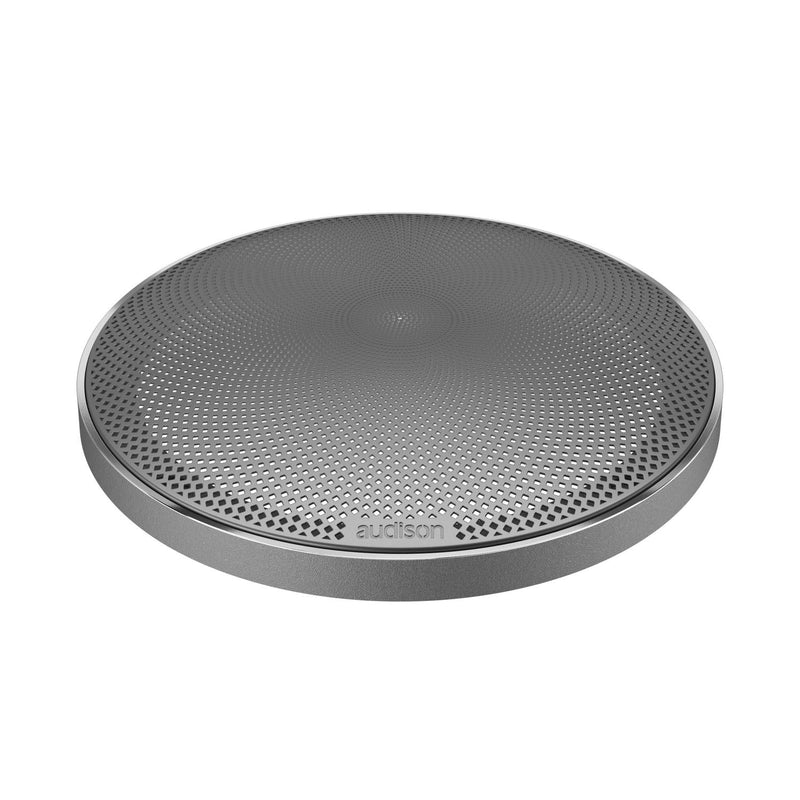

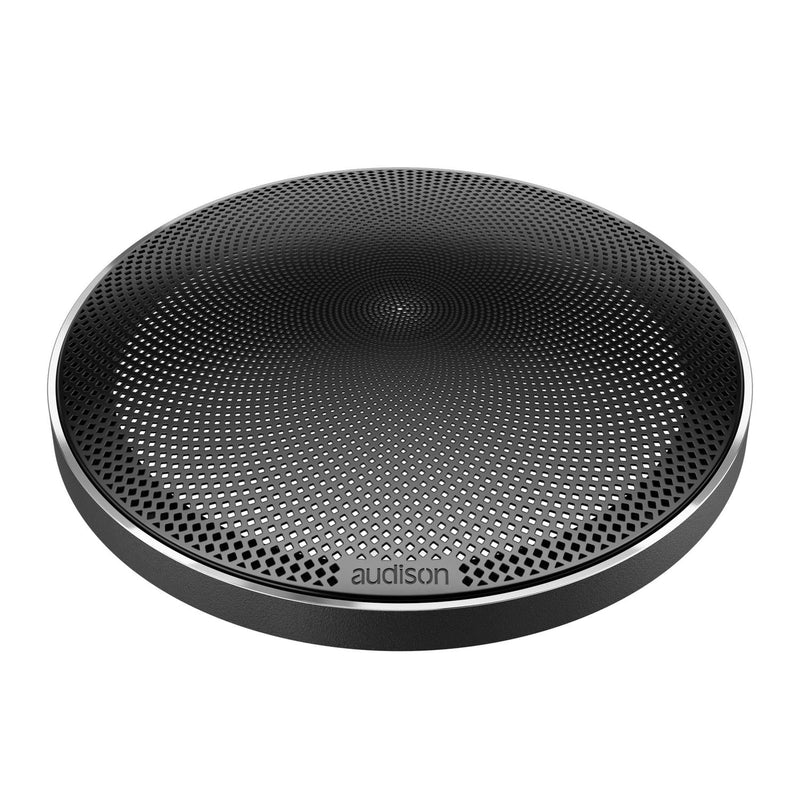

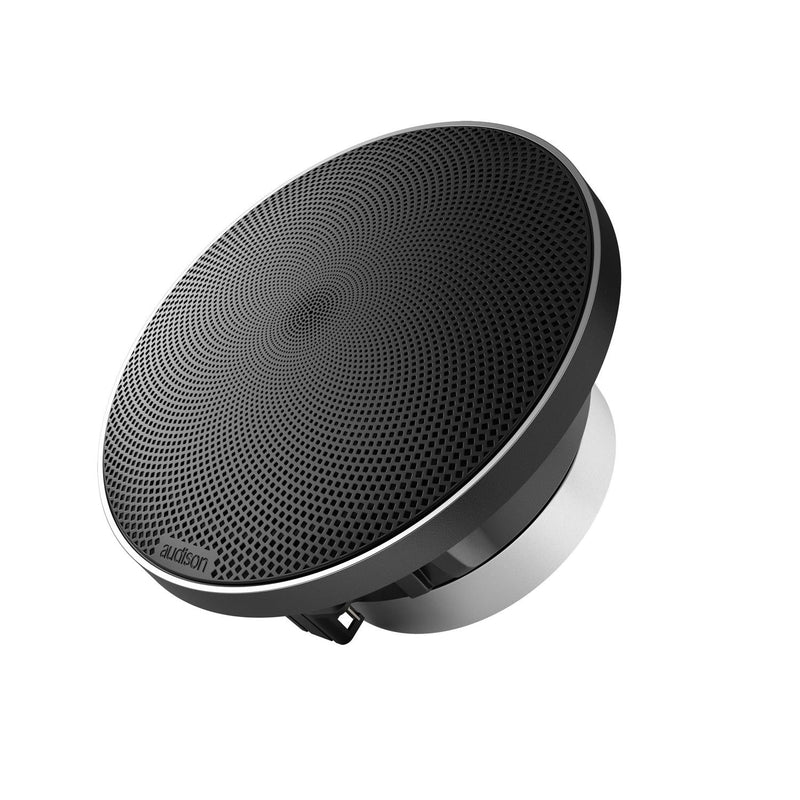

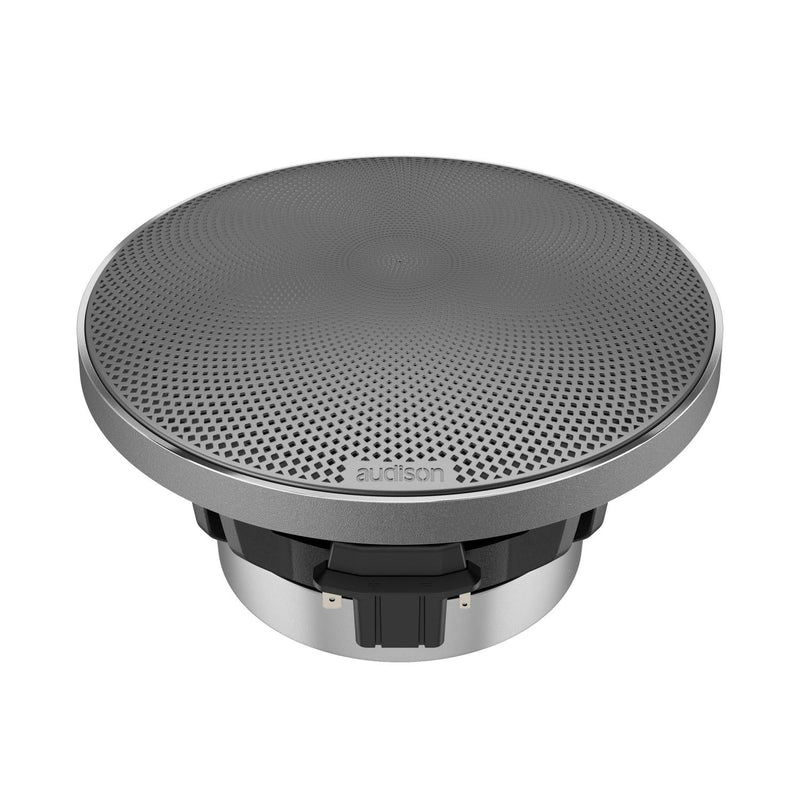

- Optional metal grilles in black or silver
- eID technology for unique product tracking
Technical Data
- Nominal Diameter: 165 mm
- Impedance: 4 Ohm
- Minimum Impedance: 3.1 Ohm
- Peak Power Handling: 300 W
- Continuous Power Handling (RMS): 150 W
- Sensitivity: 91 dB
- Frequency Response: 45 â 7500 Hz (-6 dB)
- Voice Coil Diameter: 40 mm
- Chassis Material: Aluminum
- Magnet Material: High Density Flux Ferrite
- Magnet Size (DxDxH): 100 x 45 x 18 mm
- Voice Coil Material: CCAW
- Basket Material: Fiberglass
- Cone Material: Semi-pressed paper
- Surround Material: Rubber
- Xmax: 4.95 mm
- Xmech: 7.5 mm
- Voice Coil Winding Height: 13 mm
- Air Gap Height: 6 mm
Electro-acoustic Data
- Re: 2.9 Ohm
- Fs: 66 Hz
- Le: 0.3 mH
- Vas: 9.09 l
- Mms: 15.3 g
- Cms: 0.38 mm/N
- BL: 5.5 Tâąm
- Qts: 0.57
- Qes: 0.61
- Qms: 9.06
General
- Weight: 1.6 kg
Dimensions
- Dimension A: 165 mm
- Dimension B: 140.8 mm
- Dimension C: 74.2 mm
- Dimension D: 69.8 mm
- Mounting Hole Distance (Center/Center): 155 mm
- Mounting Hole Diameter: 4.5 mm
Installation & Compatibility
The 165 mm form factor fits into many common door positions. With 4 Ohm impedance and 91 dB efficiency, the driver can be driven efficiently both actively and passively. Thanks to OEM and FASTON connectors, you can quickly integrate it into your existing setup. In combination with gentle 6 dB/oct. crossovers, you achieve a homogeneous connection to tweeters or woofers. Suitable optional protective grilles can be found at Carhifi.shop.
