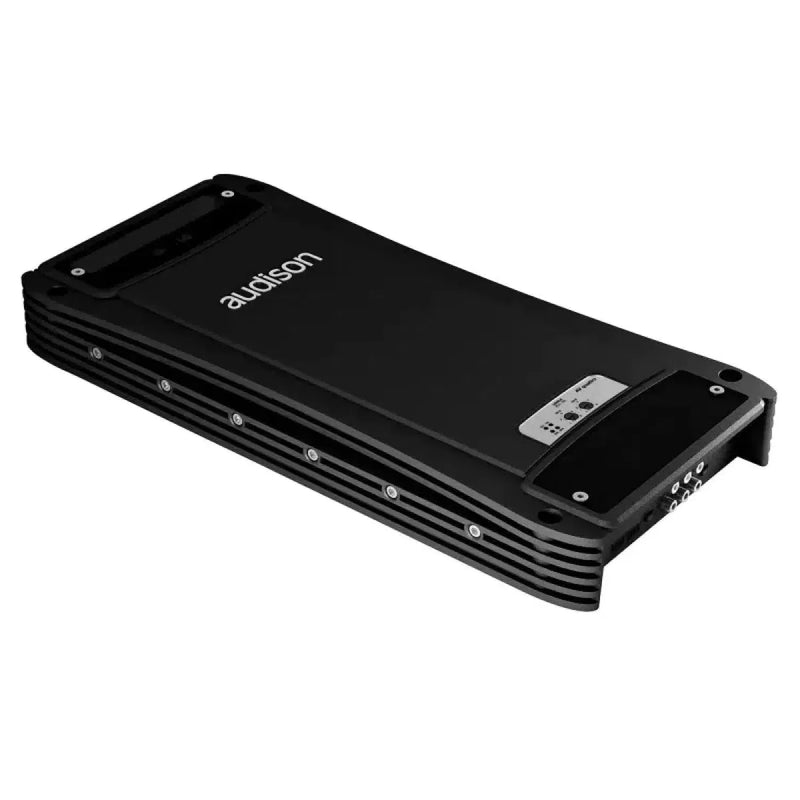

Audison Voce AV quattro - 4-Channel Amplifier with Hi-Res Bandwidth and Flexible Configuration

The Audison Voce AV quattro is an AB-class 4-channel amplifier that can be operated freely as a 4-, 3- or 2-channel amplifier. Thanks to AMP (Amplifier Management Processor), the amplifier runs stably in continuous operation, while ART takes care of automatic power on and off. With its Hi-Res capable bandwidth of 4 Hz to 60 kHz and precise 24 dB/oct. filters, your system can be finely tuned – from the front system to the subwoofer.

Technical Highlights

• AB class for dynamic, detailed sound
• Operating modes: 4-, 3- or 2-channel
• Hi-Res Audio thanks to 4 Hz – 60 kHz bandwidth (-3 dB)
• AMP: Stable, safe operation under load
• ART: Auto Remote On/Off (via BTL speaker output, switchable)
• Integrated 12/24 dB/oct. filters including bass boost and subsonic
• Hi-level and Low-level inputs for OEM integration

Power & Operating Modes

• Total power RMS: 800 W
• Minimum impedance (stereo): 2 Ω
• Output power (RMS) @ 14.4 V, 1% THD:
  • 4 channels: 120 W x 4 (4 Ω)
  • 4 channels: 200 W x 4 (2 Ω)
  • Combined: 120 W x 2 (4 Ω) + 200 W x 2 (2 Ω)
  • 3 channels: 120 W x 2 (4 Ω) + 400 W x 1 (4 Ω)
  • 3 channels: 200 W x 2 (2 Ω) + 400 W x 1 (4 Ω)
  • 2 channels (bridged): 400 W x 1 (4 Ω) + 400 W x 1 (4 Ω)

Inputs, Filters & Control

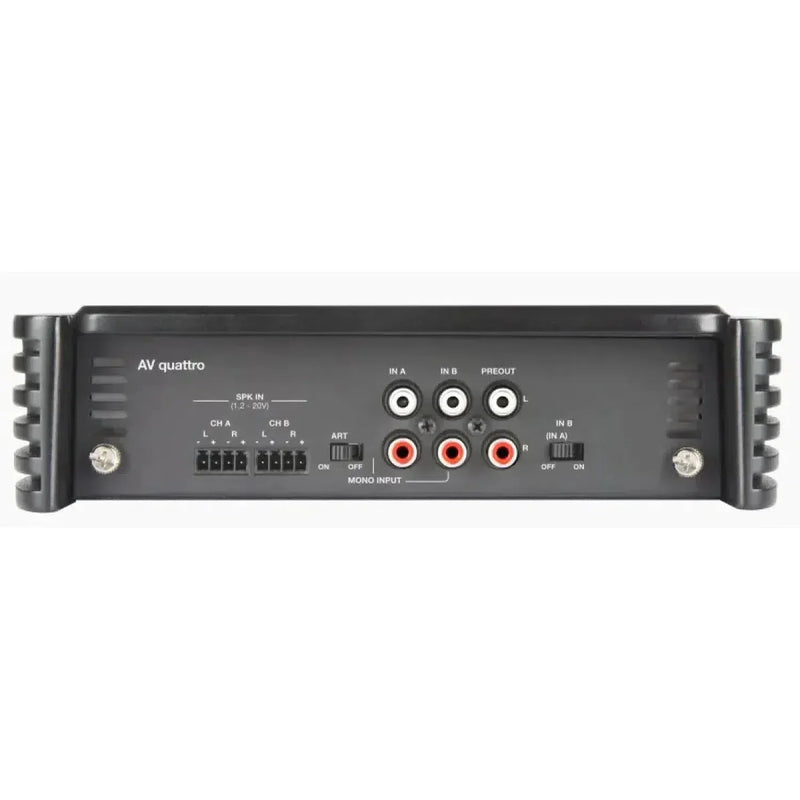

• Inputs: Pre-In / Speaker-In (Hi-Level)
• Input sensitivity Pre-In: 0.3 – 5 V RMS; Impedance: 15 kΩ
• Input sensitivity Speaker-In: 1.4 – 24 V RMS; Impedance: 5 kΩ
• Pre-Out: Full Range

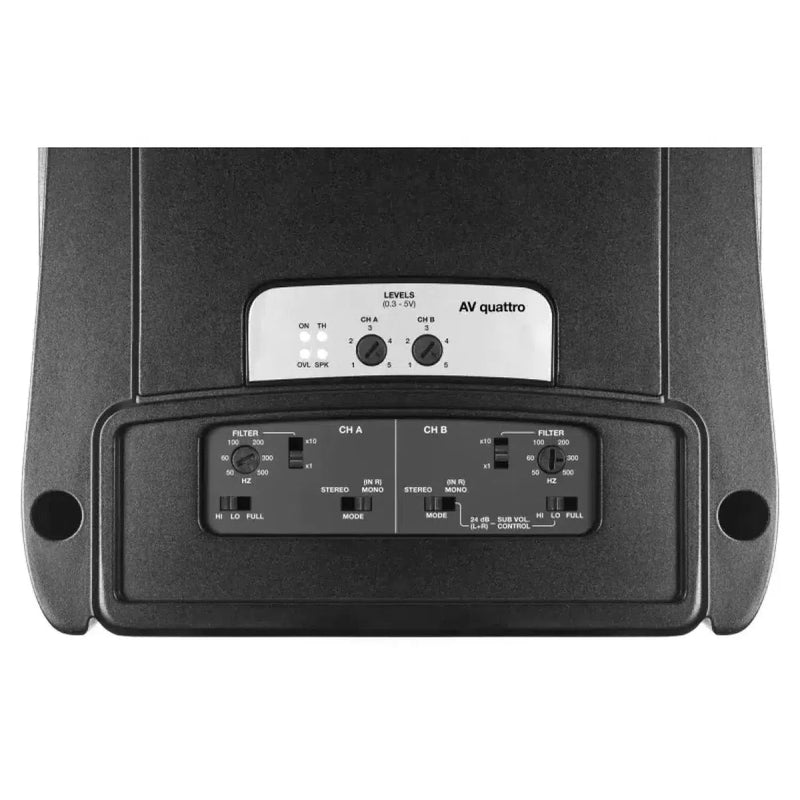

• Filters A & B (Full / High-Pass / Low-Pass): 50 – 50,000 Hz (2 ranges) @ 12 dB/oct.
• Filter B (Mono Low-Pass): 50 – 500 Hz @ 24 dB/oct.
• Remote-Sub-Level: -50 to +6 dB
• Adjustable Crossover: Yes
• Digital input: No

Sound & Measurements

• THD @ 100 Hz, 4 Ω, 70% rated power: 0.04%
• Bandwidth (-3 dB, 2 Vrms, 4 Ω): 4 Hz – 60 kHz
• S/N (A-weighted @ 1 V): 100 dBA
• Damping factor (1 kHz, 4 Ω): 100

CEA Specifications

• Power @ 4 Ω, 1% THD+N, 14.4 V: 120 W x 4
• S/N (ref. 1 W output): 80 dBA

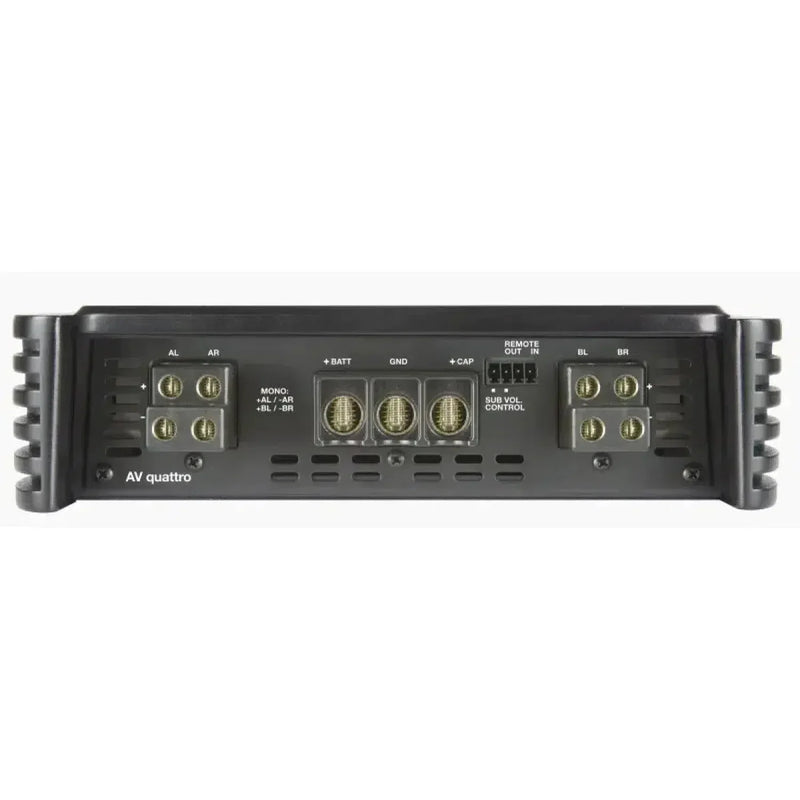

Power Supply & Control

• Supply voltage: 11 – 15 V DC
• Idle current: 1.8 A
• Resting current (off): 0.02 mA
• Current draw @ 14.4 V, 2 Ω, max. music power: 55 A
• Fuse: 60 A
• Remote IN: 7 – 15 V DC / 1 mA
• Remote OUT: 12 V DC / 50 mA
• ART Auto Turn-On/Off: selectable (BTL-Speaker-Output)

Dimensions & Weight

• Length (A): 470 mm
• Mounting length (B): 399 mm
• Width (C): 220 mm
• Mounting width (D): 198 mm
• Height (E): 58 mm
• Weight: 7.2 kg

Installation & Compatibility

The AV quattro can be integrated into both factory systems (via Hi-Level) and aftermarket systems. With the flexible filters, you can configure front/rear setups or a front-plus-sub scenario. ART eliminates the need for a separate remote signal in many vehicles. When installing, ensure adequate ventilation – AB-class delivers sound quality but generates waste heat under load.

If you're looking for a robust, precisely tunable amplifier for high-quality speaker systems and powerful subwoofers, the Audison Voce AV quattro provides a precise control center – available at Carhifi.shop.
