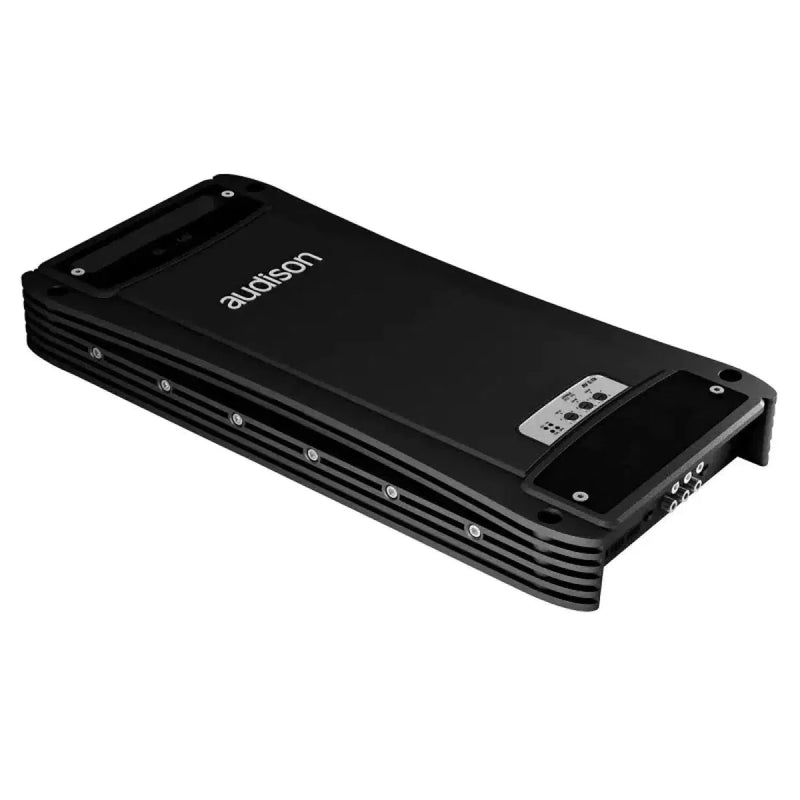

Audison Voice AV 5.1k

Audison Voce AV 5.1k - 5-Channel Amplifier with 1650 W for Front, Rear and Sub

The Audison Voce AV 5.1k is a 5-channel amplifier that operates with a hybrid design of Class A, AB and D. This allows you to power front, rear and subwoofer from one amplifier – or drive an active front plus a powerful sub. The integrated mono section delivers up to 1000 W, while two Class A channels provide high-resolution front signals and two AB channels ensure dynamic drive. The analog input stage can be converted using an optional digital input card.

Technical Highlights

• Hybrid design: 2x Class A (75 W), 2x Class AB (up to 250 W), 1x Class D Mono (up to 1000 W)
• Total RMS power: 1650 W
• Flexible setups: Front/Rear/Sub or active Front + Sub
• Hi-Level and Low-Level inputs, automatic turn-on (ART) for OEM radios
• Adjustable crossovers including bandpass for B channels and steep 24 dB/Oct. Low-Pass on the Sub channel
• Pre-Out Full Range for expansion or measurement purposes
• Remote Sub Level Control: -50 to +6 dB
• Hi-Res Audio Certification (4 – 60 kHz bandwidth)

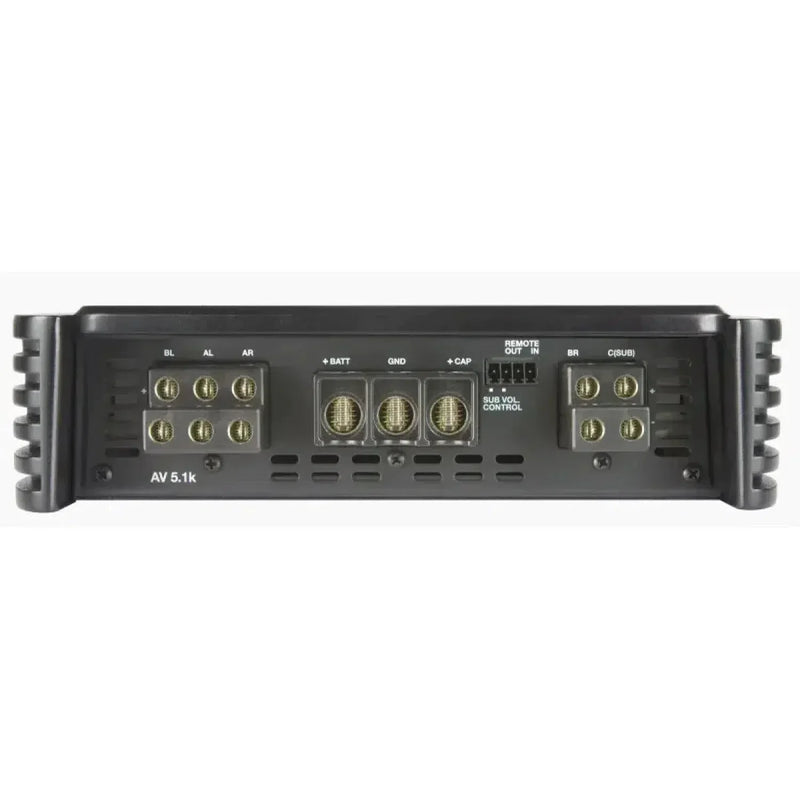

• Power supply 11–15 V DC, 100 A fuse

Detailed Technical Data

• Channels: 5
• Amplifier Class: AB-Class
• Hi-Level Input: Yes
• Low-Level Input: Yes
• Digital Input: No (analog input card optionally exchangeable for digital)
• Supply Voltage: 11 – 15 V DC
• Fuse: 100 A
• Idle Current: 3 A
• Idle Current in Off State: 0.02 mA
• Current Consumption @ 14.4 V DC, 2 Ω, max. music power: 110 A
• Remote OUT: 12 V DC / 50 mA
• Remote IN: 7 – 15 V DC / 1 mA
• ART: Automatic On/Off with BTL speaker outputs (selectable)

Amplifier Section

• Total RMS Power: 1650 W
• Minimum Impedance (A/B/C): 4 Ω / 2 Ω / 2 Ω
• Output Power (RMS) @ 14.4 V DC, 1% THD:
  • 5-Channel: 75 W x2 (4 Ω) + 140 W x2 (4 Ω) + 600 W x1 (4 Ω)
  • 5-Channel: 75 W x2 (4 Ω) + 140 W x2 (4 Ω) + 1000 W x1 (2 Ω)
  • 5-Channel: 75 W x2 (4 Ω) + 250 W x2 (2 Ω) + 1000 W x1 (2 Ω)
• Distortion (THD @ 100 Hz, 4 Ω, 70% rated power): A/B: 0.05% | C (Sub): 0.3%
• Bandwidth (-3 dB): A/B: 5 – 20 kHz | C (Sub): 7 – 350 Hz
• S/N (A-weighted @ 1 V): A/B: 100 dB | C (Sub): 87 dB
• Damping Factor: A/B (1 kHz @ 4 Ω): 100 | C (Sub) (100 Hz @ 4 Ω): 80
• Input Sensitivity Pre-In: 0.3 – 5 V RMS | Impedance: 15 kΩ
• Input Sensitivity Speaker-In: 1.4 – 24 V RMS | Impedance: 5 kΩ
• Adjustable Crossover: Yes

CEA Specifications

• Output Power @ 4 Ω, 1% THD+N, 14.4 V: 75 W x2 + 140 W x2 + 600 W x1
• S/N (ref. 1 W output):
  • 75 W Channels: 80 dBA
  • 140 W Channels: 80 dBA
  • 600 W Channel: 78 dBA

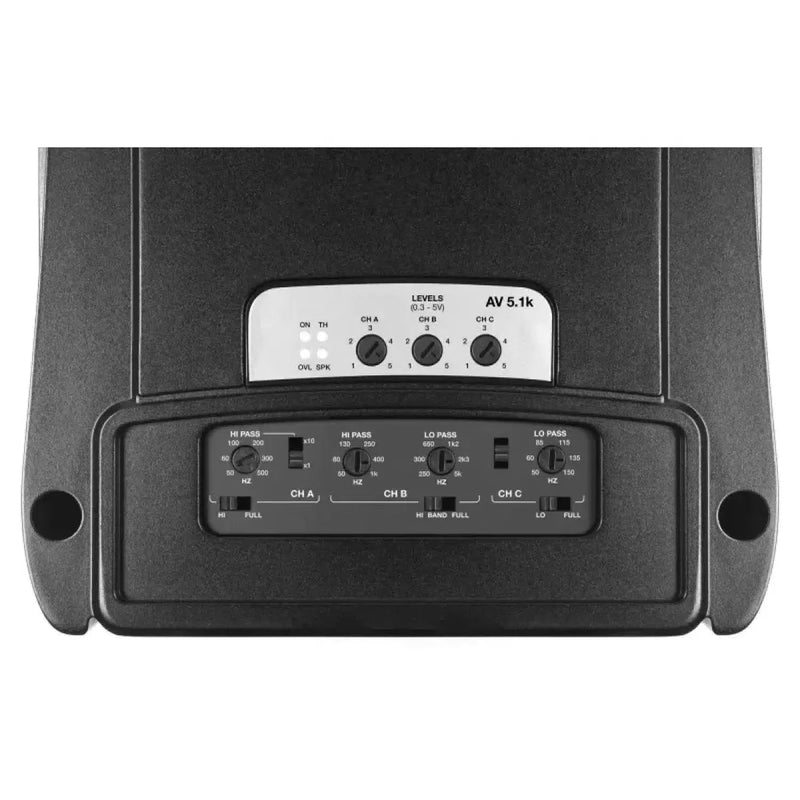

Inputs, Filters & Connections

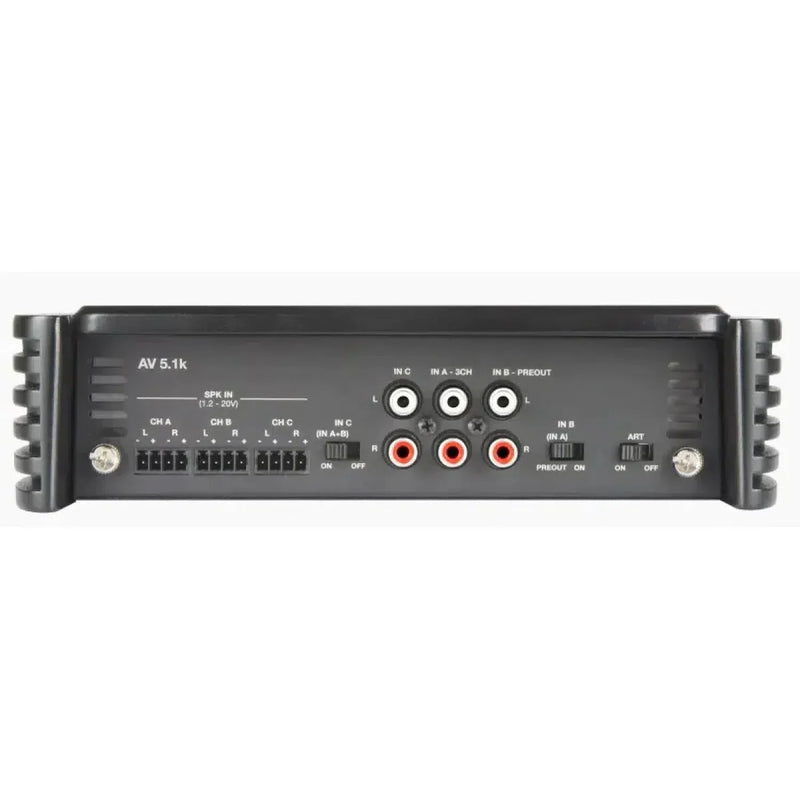

• Input Types: Pre-In / Speaker-In
• Pre-Out: Full Range
• Filter A Channels (Full / High-Pass): 50 – 5,000 Hz (2 ranges) @ 12 dB/Oct.
• Filter B Channels (Full / High-Pass / Band-Pass): 50 – 1,000 Hz (Hi) / 250 – 5,000 Hz (Lo) @ 12 dB/Oct.
• Filter C Channel (Full / Low-Pass): 50 – 150 Hz @ 24 dB/Oct.
• Remote Sub Volume: -50 to +6 dB

Dimensions & Weight

• Dimension A: 470 mm
• Dimension B: 399 mm
• Dimension C: 220 mm
• Dimension D: 198 mm
• Dimension E: 58 mm
• Weight: 7.2 kg

Special Features

• Hybrid design with two 75 W Class A channels, two 250 W Class AB channels and one 1000 W Class D mono channel
• Hi-Res Audio certification thanks to 4 – 60 kHz bandwidth

Installation & Compatibility

With Hi-Level inputs, ART auto-turn-on and Pre-Out, the AV 5.1k is ideal for factory radios and aftermarket head units. The power reserves cover classic 2-way front systems plus sub or an active front setup with subwoofer. Power is supplied via 11–15 V DC, fused with 100 A.
