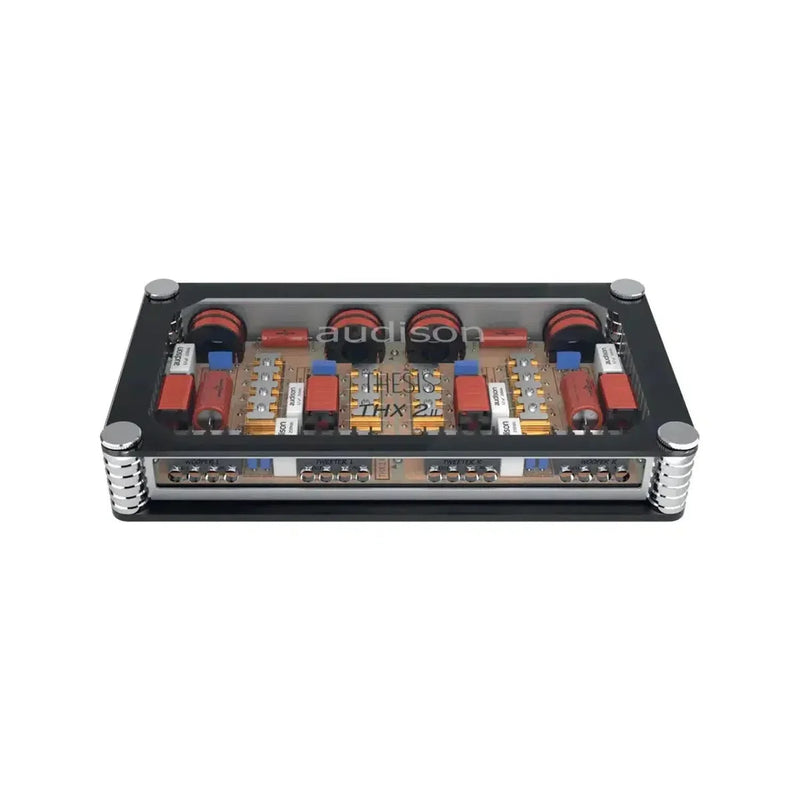

Audison Thesis THX 2 II - 2-way passive crossover for precise sound tuning
The Audison Thesis THX 2 II is a 2-way passive crossover that allows you to achieve a clean and controlled separation between the woofer/midrange and tweeter. High-quality components and a sophisticated filter topology ensure that the amplifier and loudspeakers work together optimally. You can adjust the treble in four steps â from rather analytical to somewhat softer â and even implement bi-amping if required.
Technical Highlights
- Uncompromising component selection: precise resistors, capacitors, and inductors
- Compensation networks for woofers and tweeters to optimize the load seen by the amplifier
- Finely tuned envelope filtering for a consistently built vertical soundstage in the vehicle interior
- Four tweeter level stages via L-Pad: -4 / -2 / 0 / +1.5 dB
- Mid-frequency level control: -3 to 0 dB, centered at 900 Hz
- Option for bi-amplification (bi-amping)
Dimensions
- Dimension A: 348 mm
- Dimension B: 324 mm
- Dimension C: 66.5 mm
- Dimension D: 190 mm
- Dimension E: 166 mm
Installation & Compatibility
The Thesis THX 2 II is aimed at 2-way front systems where passive separation is preferred. Thanks to the variable tweeter and midrange levels, the system can be adapted to vehicle acoustics, seating position, and listening preferences. In combination with a stable amplifier, you benefit from the optimized load matching of the compensation networks. Available at Carhifi.shop.
