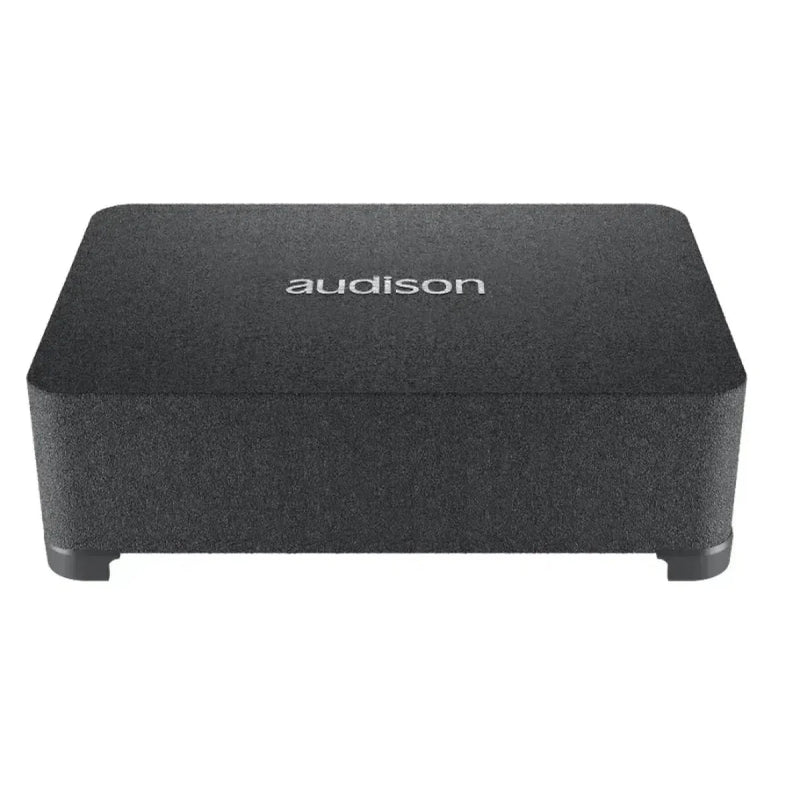

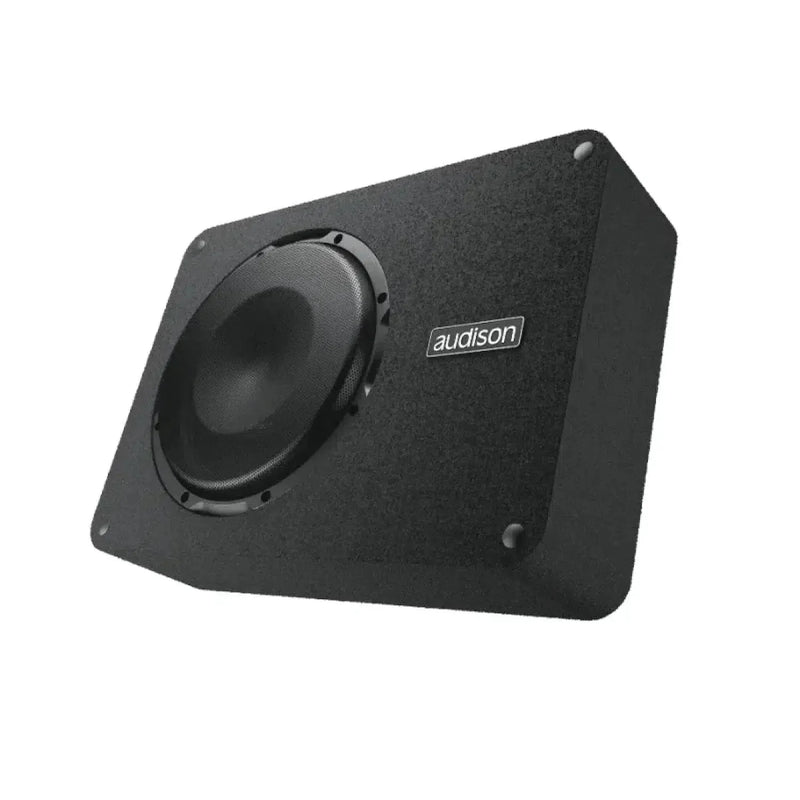

Audison Prima APBX 10 S4S - 10-inch Enclosed Subwoofer with Precise Deep Bass
The Audison Prima APBX 10 S4S is a shallow 10-inch enclosed subwoofer that delivers cleanly defined bass with compact installation dimensions. With 400 W continuous power and 800 W peak power, it plays controlled and dynamically. The single 4-ohm voice coil, a high-density flux ferrite magnet, and the pressed paper cone with cotton fibers ensure efficient drive and natural bass reproduction. The Sub Smart Plug (SSP) terminal strip allows you to connect the system securely and quickly. Depending on the installation situation, you can choose between down-firing for more depth or up-firing for noticeable punch. Available at Carhifi.shop.
Technical Highlights
- 2-Side/2-Sound Concept: Down-firing for powerful lows or up-firing for more attack.
- SSP terminal with pressure contacts and plug-and-play terminal strip for fast, error-free connection and flexible impedance configuration.

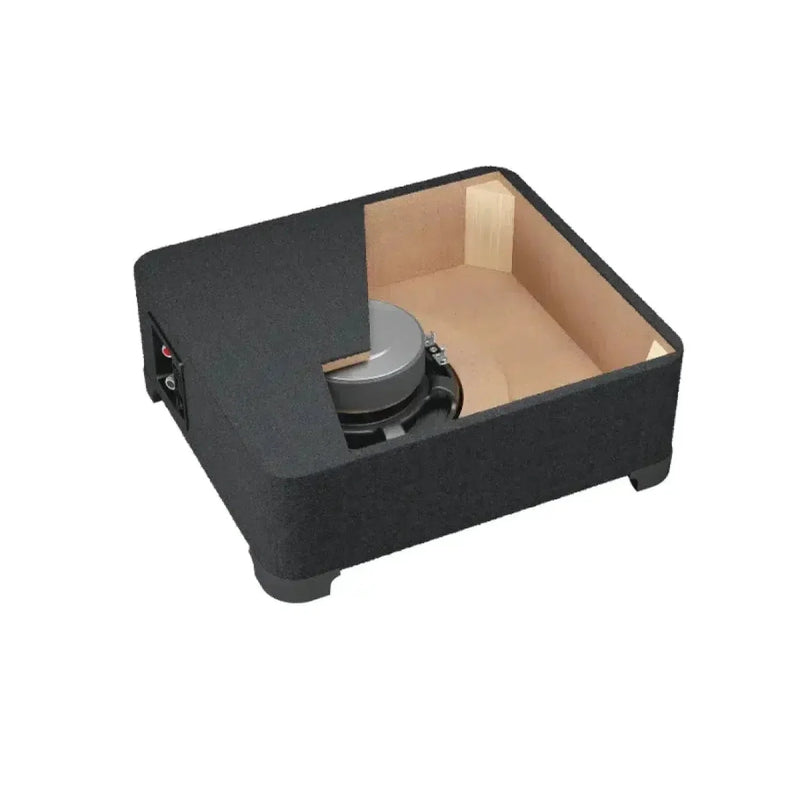

- Ultra-flat, sealed enclosure (142 mm) â tuned for the APS 10 D driver.
- Rounded enclosure edges for easy placement and reduced resonances.
- Special cone/dust cap/basket geometry for long linear excursion: 11 mm (one-way).
- Massive, FEM-optimized motor for precise control at high excursion.
- Water-repellent treated 10-inch paper cone with FEM and Klippel-optimized profile.
- Perfect complement to the AP F8.9 bit (2 channels bridged, 260 W RMS) including usable bass boost and parametric EQ function of the integrated DSP.
- Robust metal grille protects the subwoofer in everyday use.
- Feet with Velcro for secure hold on carpet and quick disassembly.
Technical Data
- Chassis Size: 250 mm (10 inches)
- Power Handling (Continuous): 400 W RMS
- Power Handling (Peak): 800 W
- Impedance: 4 Ohm (Single Voice Coil)
- Magnet: High Density Flux Ferrite
- Cone: Cotton-Fibre Pressed Paper Cone
Dimensions
- Length: 470 mm
- Width: 334 mm
- Height: 120 mm
Installation & Compatibility
The shallow, sealed enclosure is ideal for the trunk and can be oriented flexibly: Down-firing uses the vehicle floor to emphasize deep frequencies, while up-firing delivers more precision and kick. The SSP terminal strip simplifies connection to common amplifiers. In combination with the Audison AP F8.9 bit, you can use the integrated DSP functions for precise bass tuning. At Carhifi.shop, you get the APBX 10 S4S as a practical solution for powerful, controlled bass with minimal space requirements.
