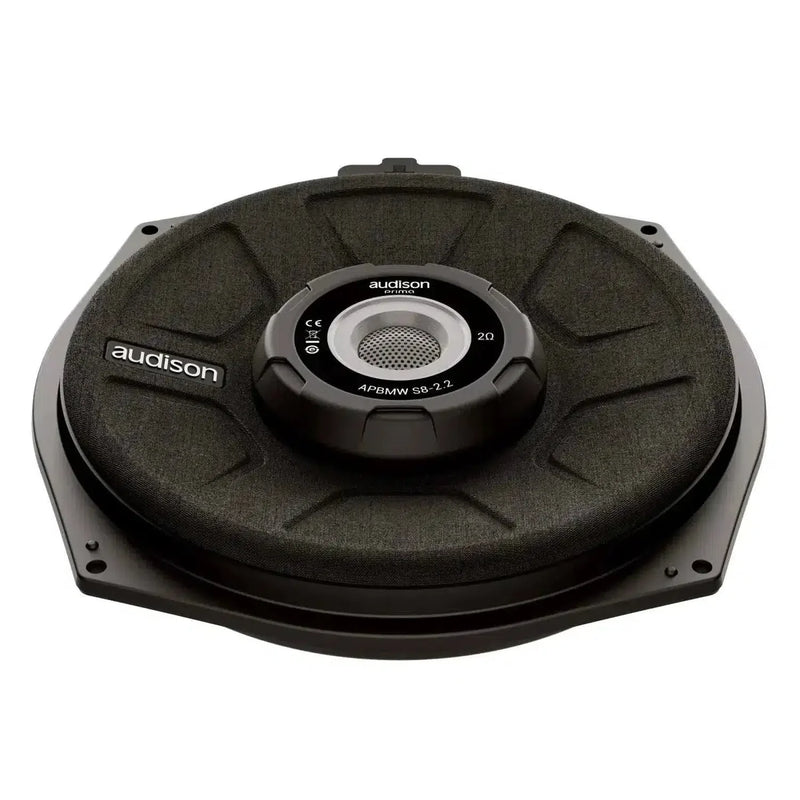

Audison Prima APBMW S8-2.2

Audison APBMW S8-2.2 – 200 mm Underseat Subwoofer for BMW/Mini, 2 Ohm, 150 W RMS

The Audison APBMW S8-2.2 is a 200mm subwoofer specifically designed for BMW and Mini models for the underseat position. With 2 Ohms, 150 W continuous power, and 300 W peak power, it efficiently utilizes the existing installation space and delivers dry, deep frequencies from 40 to 500 Hz. The compact Neodymium motor keeps the installation depth low while ensuring control and efficiency.

Technical Highlights

• 200mm underseat driver with 2 Ohms for high output from common car hi-fi amplifiers
• 150 W RMS, 300 W Peak – stable in continuous operation and with reserves for dynamic peaks
• Frequency response 40–500 Hz – precise bass reproduction in the factory installation location
• Neodymium magnet – strong motor force with small size
• SPL 91 dB, Xmax 7 mm, Xmech 10 mm – high efficiency and excursion capability
• Lightweight paper cone with rubber surround, stiff aluminum basket
• Low mounting height (dimension D 55.2 mm) for the underseat position
• Tuned for BMW/Mini underseat enclosures for direct replacement

Technical Data

• Size: 200 mm
• Power handling (Peak): 300 W
• Power handling (Continuous): 150 W
• Impedance: 2 Ohm
• Frequency response: 40–500 Hz
• Magnet material: Neodymium
• Voice coil: Ø 50 mm
• Voice coil material: Copper
• Woofer Qes: 0.67
• Basket material: Aluminum
• Cone material: Pressed paper
• Chassis material: Plastic
• Surround material: Rubber
• Xmax: 7 mm
• Xmech: 10 mm

Electro-acoustic Properties

• D: 159 mm
• Driver displacement volume: 1.2
• Re: 2.2 Ohm
• Fs: 40 Hz
• Vas: 22.3 l
• Mms: 42 g
• Cms: 0.4 mm/N
• BL: 5.6 T•m
• Qms: 2.1
• Qts: 0.5
• Membrane area: 198.6 cm²
• Le (Standard): 0.3 mH
• Reference Efficiency: 0.18
• SPL: 91 dB

General

• Weight: 1.21 kg

Dimensions

• Dimension A: 217 mm
• Dimension B: 239 mm
• Dimension C: 191 mm
• Dimension D: 55.2 mm
• Dimension E: 32 mm
• Dimension F: 229 mm
• Dimension G: 5 mm

Features

• Acoustically tuned for BMW/Mini to efficiently utilize the underseat bass range and achieve clear, powerful lows.

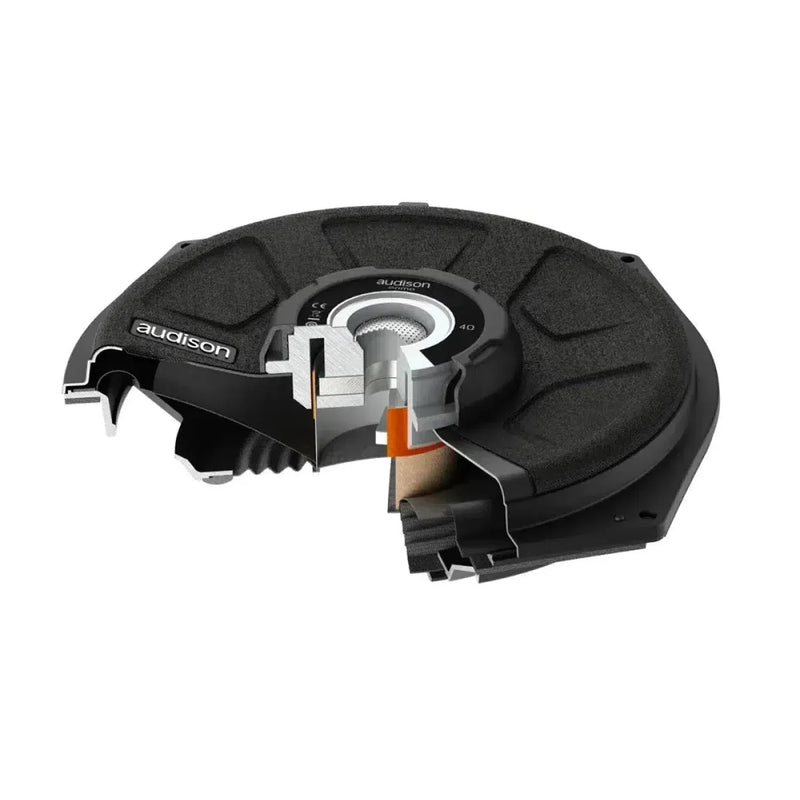

• Neodymium magnet assembly with inverted acoustic structure and internal cone – high performance with compact volume and low weight.
• 38 mm voice coil on aluminum former – high thermal resistance and stability even with large excursion.
• Two 5 mm gaskets for precise OEM positioning are included.
• 2-Ohm configuration for maximum power, e.g., with Audison AP 8.9 bit in an actively crossed-over setup.

Installation & Compatibility

Suitable for numerous BMW and Mini models in the front underseat position:

• BMW 1 Series: E81, E82, E87, E88, F20, F21, F52
• BMW 2 Series: F22, F23, F45, F46, F87
• BMW 3 Series: E90, E91, E92, E93, F30, F31, F34, F35, F80
• BMW 4 Series: F32, F33, F36, F82, F83
• BMW 5 Series: E60, E61, F07, F10, F11, F18, G30, G31
• BMW 6 Series: F06, F12, F13, F14
• BMW 7 Series: F01, F02, F03, F04, G11, G12
• Mini: F55, F56, R60, R61, F54, F60, F57
• BMW X1: E84, F48, F49, E83
