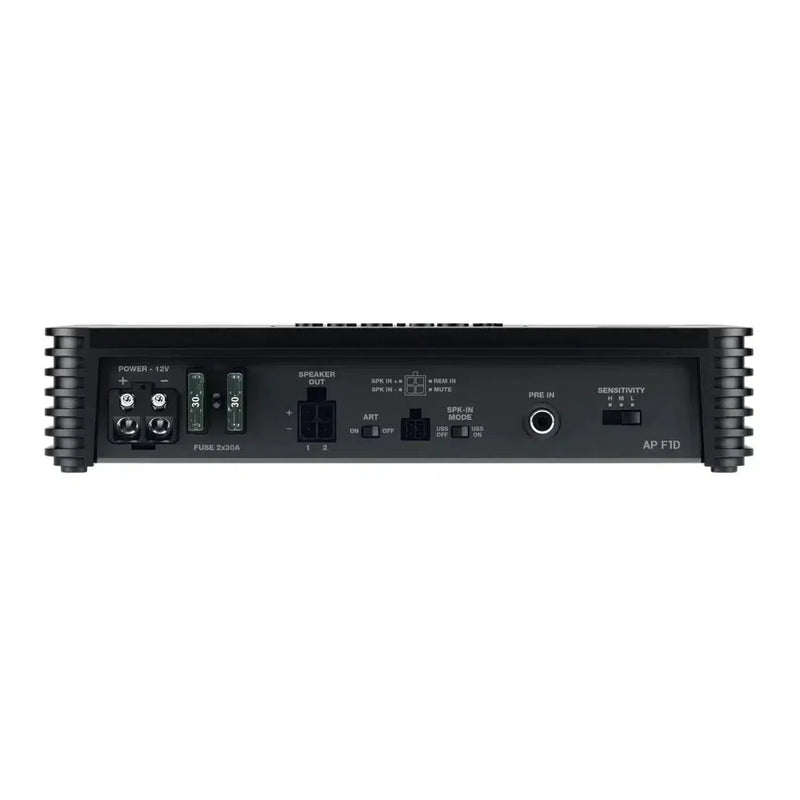

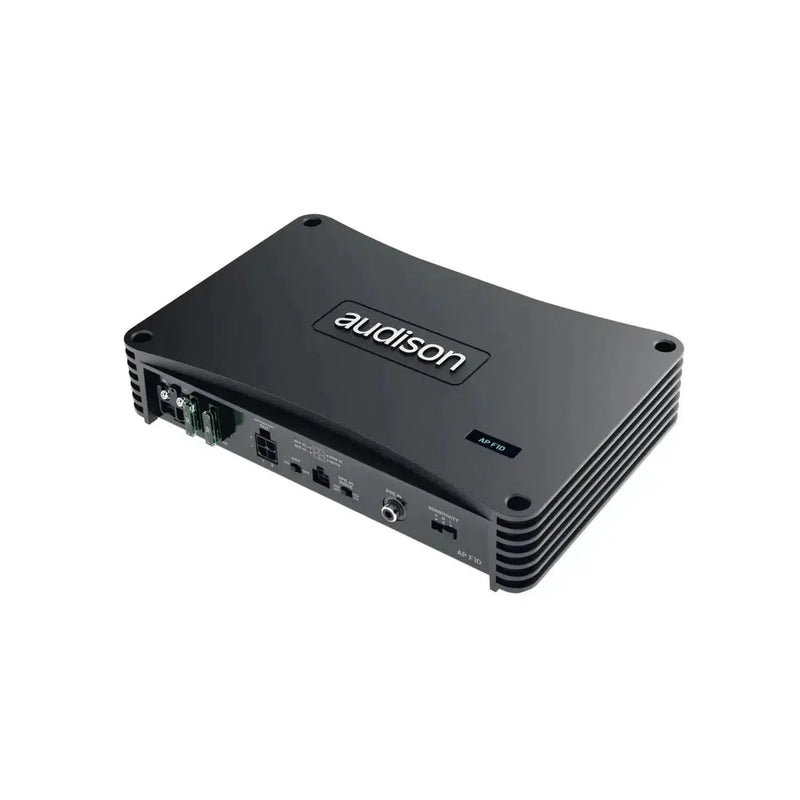

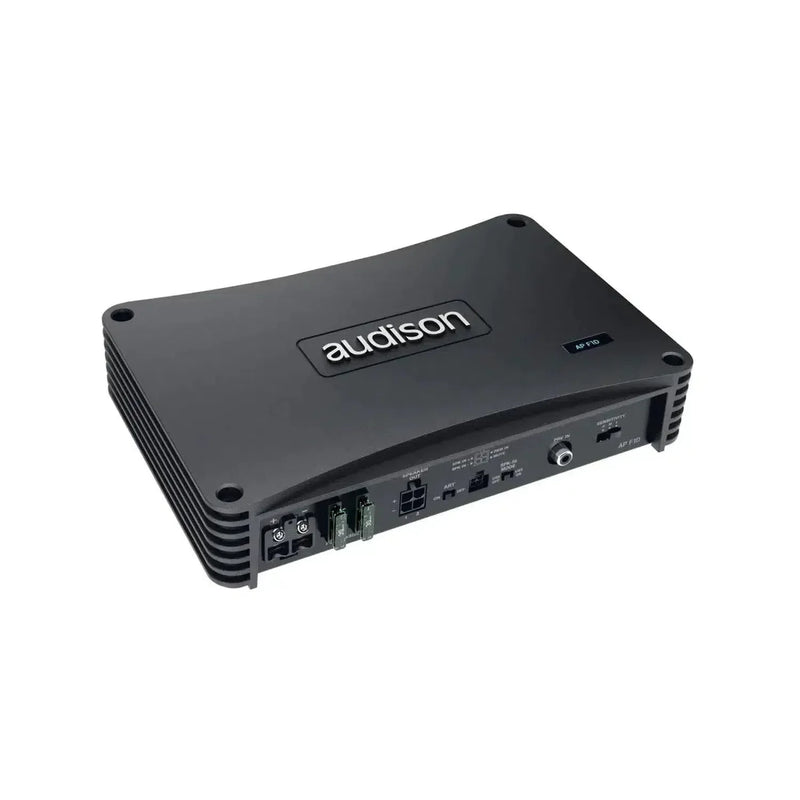

Audison Prima AP F1D - 1-Channel D-Class Monoblock for Subwoofers, 1000 W @ 1 Ω
The Audison Prima AP F1D is a compact 1-channel subwoofer amplifier that delivers high currents cleanly and operates stably even at 1 Ω. With up to 1000 W RMS at 1 Ω, you can drive even demanding woofers with control. Thanks to high- and low-level inputs, it works with both factory radios and aftermarket head units. Ideal as a powerful addition to the Audison AP F8.9 bit – for a full-fledged front/rear setup with a separate sub channel. Available at Carhifi.shop.
Technical Highlights
- 1 x 1000 W RMS at 1 Ω, 1-ohm stable
- D-Class efficiency, compact housing
- RCA (Low-Level) and Speaker-Level inputs
- ART Auto Turn-On via BTL speaker outputs (2–7 V, selectable)
- No internal, adjustable low-pass filter – perfect for DSP setups
- High damping factor and low distortion for precise sub-bass
Installation & Compatibility
You can connect the AP F1D directly to factory radios via high-level or to aftermarket units via RCA. The monoblock is designed for 1–4 Ω and delivers its highest power at 1 Ω. Plan for a solid power supply with the designated fuses (2 x 30 A) and sufficient cable cross-section. The Auto-Turn-On function (ART) simplifies installation in vehicles without a remote wire. In combination with the Audison AP F8.9 bit, a scalable system with a separate subwoofer channel is created.
Technical Data
- Channels: 1
- Amplifier Class: D-Class
- Hi-Level Input: Yes
- Low-Level Input (Pre-In): Yes (RCA)
- Digital Input: No
- Supply Voltage / Fuse: 11–15 V DC / 2 x 30 A
- Operating Voltage Range: 6.5–17 V DC
- Idling Current: 1.3 A
- Standby Current (switched off): 0.05 mA
- Current Consumption @14.4 V DC, 2 Ω, Max. Music Power: 50 A
- Remote IN: 6.5–15 V DC (1 mA)
- ART – automatic On/Off via BTL speaker outputs (selectable): 2–7 V DC
- Amplifier Section
- THD @100 Hz, 4 Ω, 70% Rated Power: 0.1%
- Bandwidth (-3 dB, 2 VRMS, 4 Ω): 10 Hz–500 Hz
- Signal-to-Noise Ratio (A-weighted @1 V): 110 dBA
- Damping Factor (100 Hz, 4 Ω, 2 VRMS): 140
- Input Sensitivity Pre-In (selectable): 0.6 / 2.0 / 6.0 VRMS
- Input Sensitivity Speaker-In (selectable): 2.0 / 6.5 / 20 VRMS
- Total Power RMS: 1000 W
- Minimum Impedance: 1 Ω
- Output Power (RMS) @14.4 V DC, 1% THD:
- 1 x 500 W @ 4 Ω
- 1 x 800 W @ 2 Ω
- 1 x 1000 W @ 1 Ω
- Adjustable Crossover: No
- CEA Specifications
- Output Power @4 Ω, 1% THD+N, 14.4 V: 500 W
- Signal-to-Noise Ratio (ref. 1 W output): 81.5 dB
- Inputs & Control
- Pre-In: RCA
- Speaker-In: wired
- Mute/Energy-Saving Control: wired (active to ground)
- Other Specifications
- Ambient Temperature (Operating): 0–55 °C (32–131 °F)
- Weight: 1.92 kg
- Features: 1 x 1000 W @1 Ω; ideal extension of the AP F8.9 bit; designed for powerful subwoofers
