Audison Force AF M12.14 bit

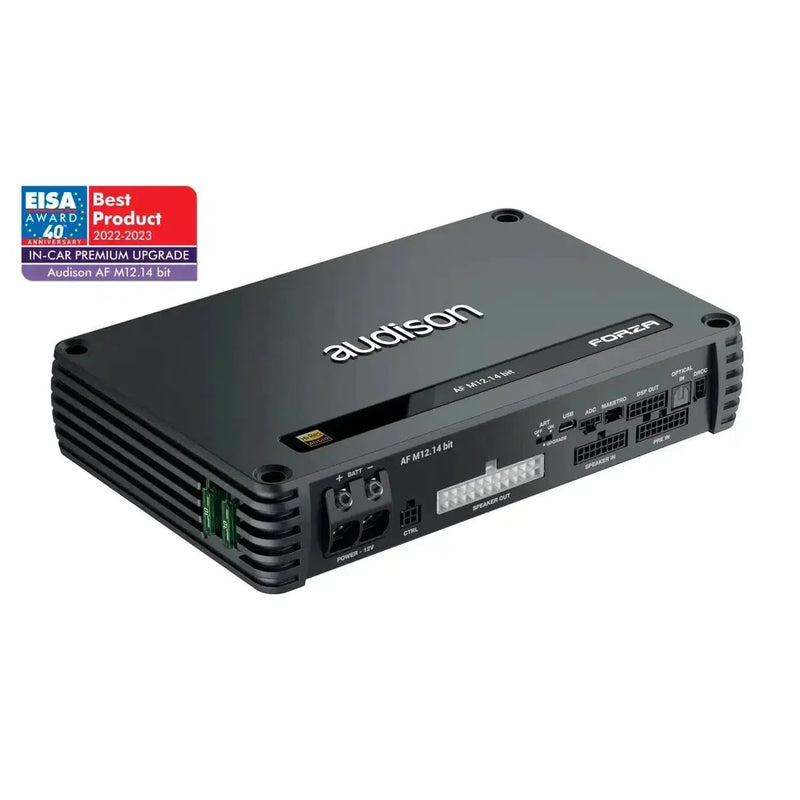

Audison AF M12.14 bit - 12-Channel DSP Amplifier with Hi-Res Audio

The Audison AF M12.14 bit is a compact 12-channel amplifier with integrated DSP, providing precise system control and high output power in one device. 60 W x 12 at 4 Ω, 90 W x 12 at 2 Ω, and 180 W x 6 bridged at 4 Ω offer flexible configurations from fully active setups to powerful OEM upgrades. The DSP operates at 24 bit/96 kHz, extends the audio band up to 40 kHz, and meets Hi-Res requirements. The support for the Absolute Volume function of the Audison B-CON ensures maximum resolution, even wirelessly.

Technical Highlights

• 12 Class-D channels with wide bandwidth and low distortion
• DSP at 24 bit/96 kHz, audio band up to 40 kHz (Hi-Res compatible)
• Bridgable in pairs: up to 180 W x 6 at 4 Ω
• Up to 14 DSP-controlled outputs (12 amplified + 2 Pre-Outs)
• 8 high-/low-level inputs plus optical S/PDIF input
• Expansion card slot (e.g., additional 4 analog or 1 digital input)
• Electrical input analysis and acoustic measurement functions (RTA) for precise integration
• Next-generation bit Drive software with extended routing
• Power/volume ratio up to 0.68 W RMS/cm³ at up to 82% efficiency
• Supports Absolute Volume with Audison B-CON for maximum bit depth

Amplifier Power

• Channels: 12
• Amplifier Class: D-Class (ADT – Audison D-Class latest generation)
• Total RMS Power: 1080 W
• Continuous Output Power (RMS) @ 14.4 VDC, 1% THD, all channels driven:
  • 12 Ch @ 4 Ω: 60 W x 12
  • 12 Ch @ 2 Ω: 90 W x 12
  • 6 Ch bridged (1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4 Ω: 180 W x 6
• Minimum Impedance: 12 Ch: 2 Ω | 6 Ch bridged: 4 Ω
• Distortion THD @ 1 kHz, 4 Ω, 70% Rated Power: 0.03%
• Bandwidth (–1.5 dB): 10 Hz – 42 kHz
• Damping Factor @ 1 kHz, 4 Ω, 2 VRMS: 80
• S/N (A-weighted @ 1 V input): Master-In 98 dBA | Optical Input 105 dBA
• Adjustable Crossover: Yes
• Efficiency: 80% (Rated Power)

Digital Signal Processor

• Audio DSP: Analog Devices ADAU1467 (96 kHz processing)
• Converters: 3 x ADAU1978 (4-channel A/D) + ADAU1966A (16-channel D/A), 24 Bit/192 kHz
• Filter Types: Full Band / High Pass / Low Pass / Band Pass
• Filter Modes and Slopes:
  • Linkwitz-Riley: 12/24/36/48 dB/Oct.
  • Butterworth: 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel: 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev: 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP: 6 dB/Oct.
• Crossover Frequencies: 20 Hz – 20 kHz
• Phase Control: 0° / 180°, All-Pass Filter
• EQ for Analog Input (20 Hz – 20 kHz): 12 Biquads + Delay
• Output EQ: parametric/graphic, 15 bands (20 Hz – 20 kHz)
• Time Alignment/Distance: 0 – 54 inches / 0 – 200.8 inches
• Time Delay: 0 – 15 ms
• Real-time Audio Monitor (RTA) for Inputs and Outputs

Inputs & Outputs

• Pre-In Inputs: 0.6 – 6 VRMS (15 kΩ Impedance)
• High-Level Inputs: 8
• Low-Level Inputs: 8
• Speaker Inputs: 2.2 – 22 VRMS (5 kΩ Impedance)
• Digital Inputs:
  • 1 x Optical S/PDIF; max. 192 kHz / 24 Bit
  • + 1 x Optical/Coaxial S/PDIF via optional F2O card
• Pre-Amplifier Outputs (Pre-Outs): 2
• Subwoofer Output (RCA Pre-Out): 5 V RMS

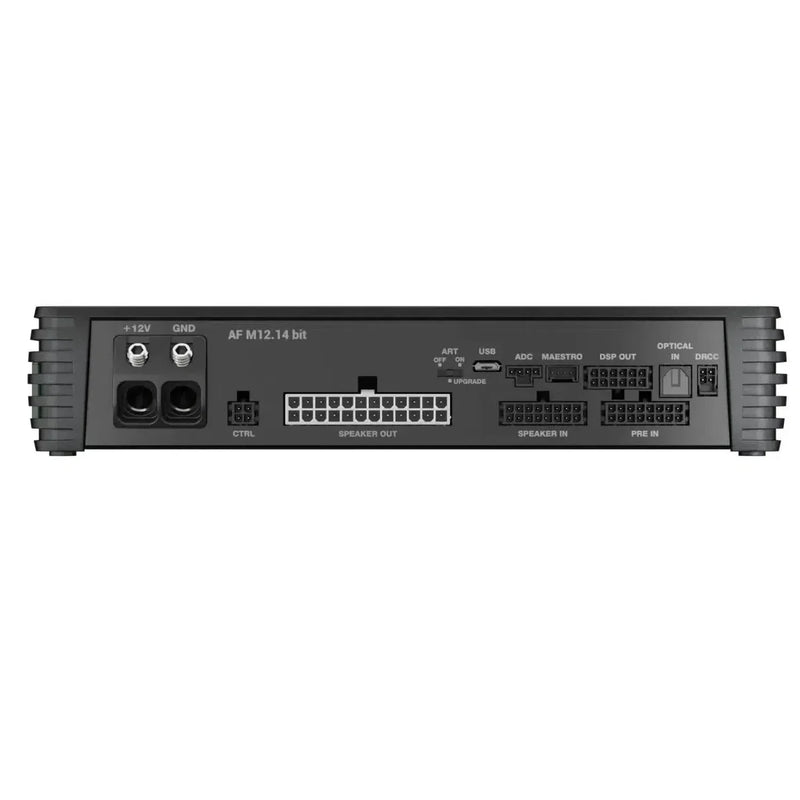

Control & Integration

• DRC Port: Input for DRC AC remote control (optional)
• ADC Port: Management of compatible Audison devices
• 1-Wire & 2-Wire: customizable functions (+12 V activated)
• ART Auto Turn-On via BTL speaker voltage: 1.5 VDC
• Remote IN: 4 – 15 VDC (1 mA)
• Remote OUT: 6.5 – 15 VDC (150 mA)
• bit Drive software platform (Next-Gen) with extended routing
• Absolute Volume support with Audison B-CON

Power & Efficiency

• Supply Voltage / Fuse: 11 – 15 VDC / 2 x 30 A
• Operating Voltage of Power Supply: 6.5 – 17.5 VDC
• Idle Current: 1.68 A
• Standby Current Consumption: 1.7 mA
• Current Consumption @ 14.4 VDC, 2 Ω, max. music power: 45 A
• Efficiency (Rated Power): 80% | Efficiency according to feature set: up to 82%

CEA Specifications

• Output Power @ 4 Ω, 1% THD+N, 14.4 V: 45 W
• S/N (referred to 1 W output): 75.5 dB

General Requirements & Software

• PC Connection: Micro USB 1.1 / 2.0 / 3.0
• Software/PC: Windows 10, Windows 11 (min. resolution 1024 x 768)
• Operating Temperature: 0 °C to 55 °C

Dimensions & Weight

Size and form factor facilitate installation even in limited space.

• Size (WxH/D): 240 x 47 x 156 mm
• Weight: 2.04 kg
• Dimension A: 240 mm | Dimension B: 156 mm | Dimension C: 47 mm

Installation & Compatibility

The AF M12.14 bit fits perfectly into modern OEM and aftermarket setups. With 8 high-/low-level inputs, S/PDIF, and bridgable power amplifiers, you can cover active front systems, center, rear, and sub with one device. The integrated input and acoustic analysis assist you in clean integration and tuning – from factory radios to digital players.
