Audison AV 12 D2/D4 II - 12-inch Subwoofer with Variable Impedance for Precise Bass

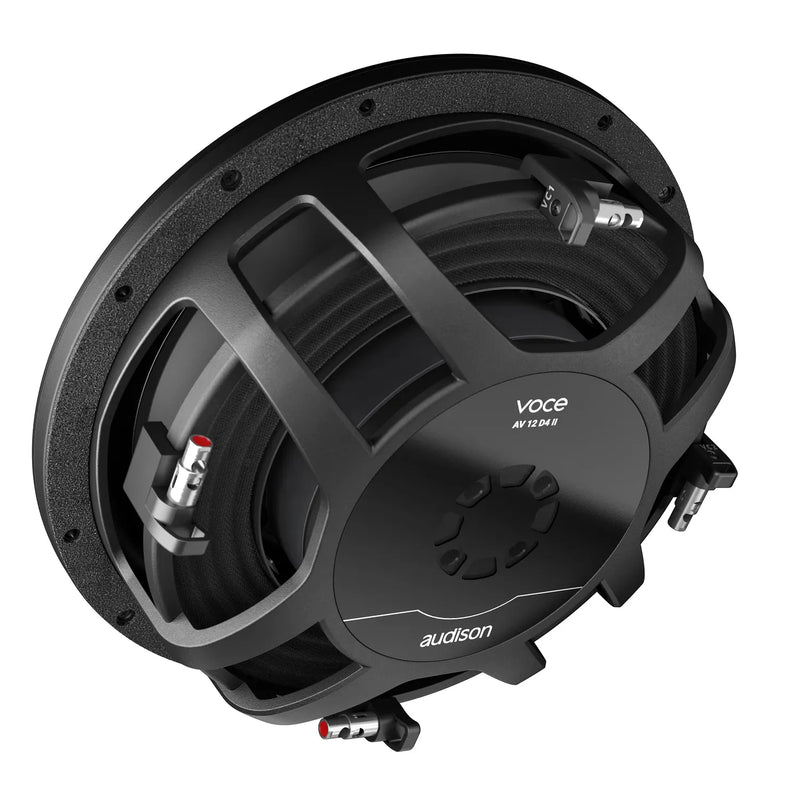

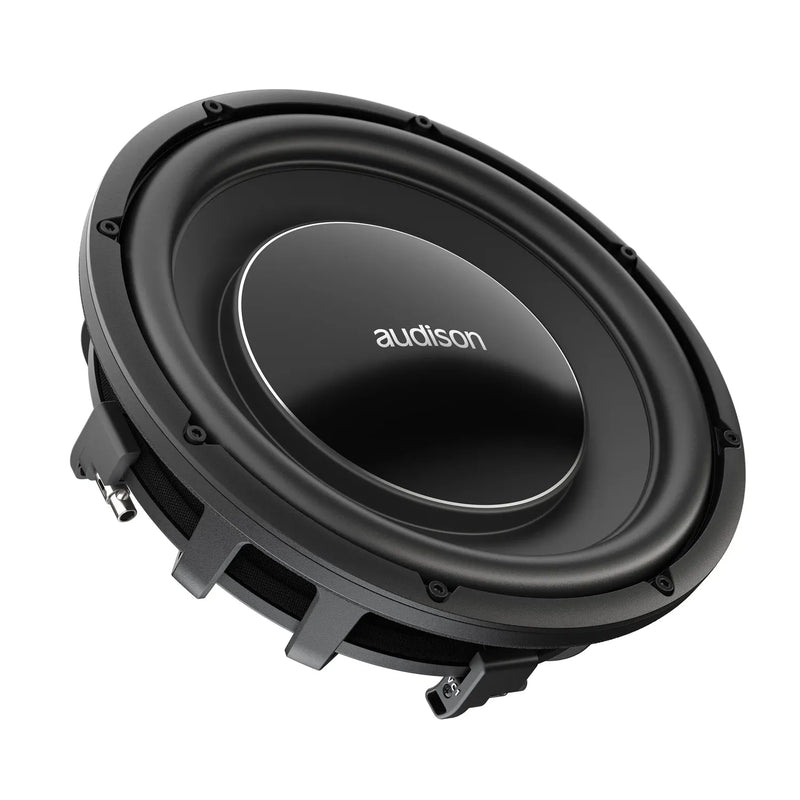

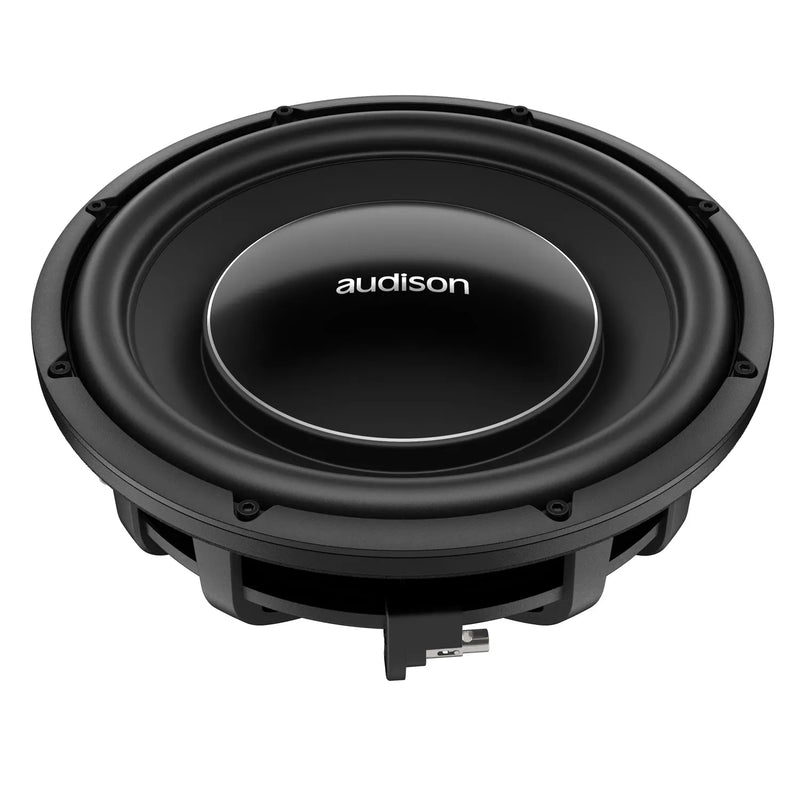

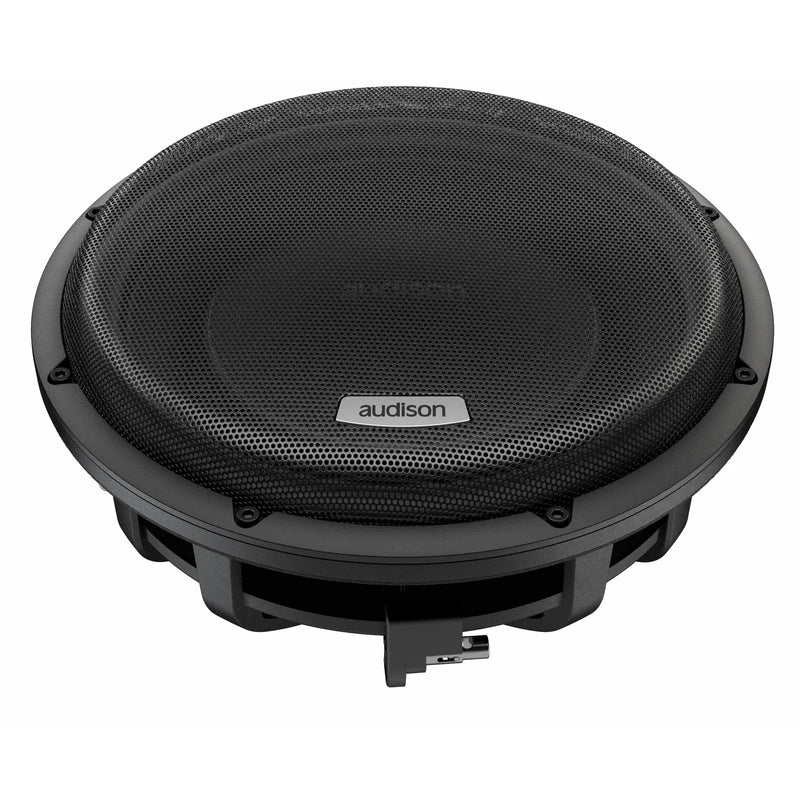

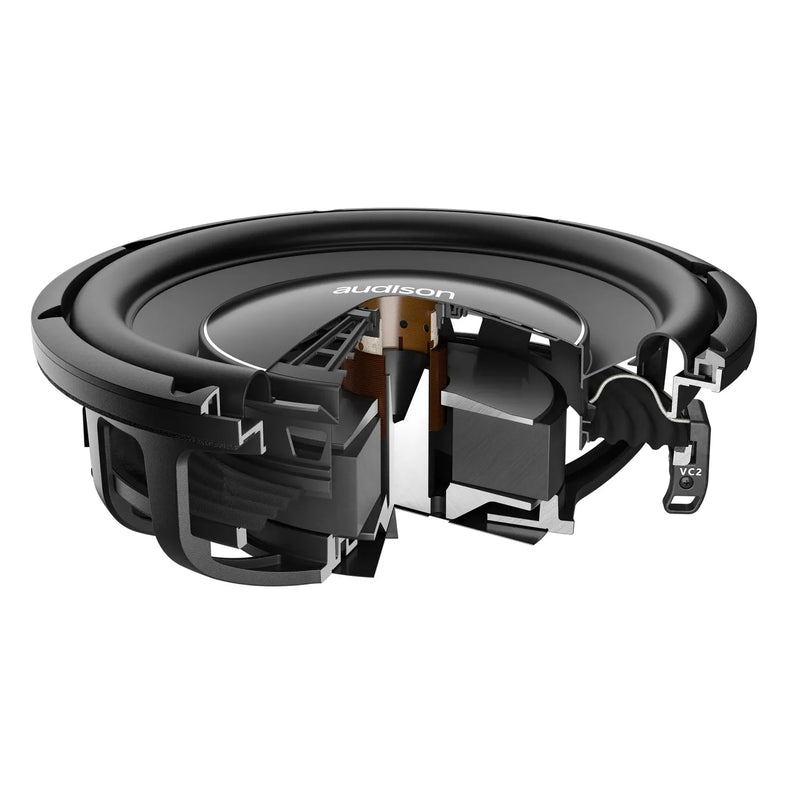

The Audison AV 12 D2/D4 II is a 12-inch (30 cm) subwoofer that delivers controlled, powerful bass in compact enclosures. With 550 W continuous power and 1100 W peak, it performs reliably, while the dual voice coils in D2 (2+2 Ohm) or D4 (4+4 Ohm) allow for flexible wiring. An aluminum chassis, ferrite magnet, and a robust polypropylene cone ensure stability and consistent performance. Its frequency response of 25 to 400 Hz and a sensitivity of 84.5 dB are well-suited for systems that value clean low-frequency reproduction. A bass-reflex enclosure of at least 21 liters, tuned to 45 Hz, is recommended.
Technical Highlights
- Type: 12" (30 cm) Subwoofer
- Impedance Options: D2 (2+2 Ohm) / D4 (4+4 Ohm)
- Power: 550 W RMS, 1100 W Peak
- Sensitivity: 84.5 dB
- Frequency Response: 25 â 400 Hz
- Voice Coil Ă: 38.6 mm (1.5")
- Voice Coil Material: CCAW
- Magnet Material/Size: Ferrite, 156 x 60 x 34 mm
- Basket: Fiberglass
- Chassis: Aluminum
- Cone: Polypropylene
- Xmax: 16.8 mm
- Xmech: 20 mm
- Winding Height (Voice Coil): 37 mm
- Gap Height: 7 mm
- Recommended Enclosure: approx. 21 liters, Bass Reflex
- Recommended Tuning: 45 Hz
- Ferrofluid: No
- Weight: 6.6 kg
Thiele/Small Parameters
- Re: 1.8 Ohm
- Fs: 23 Hz
- Le: 1.8 mH
- Vas: 63 Liters
- Mms: 298 g
- Cms: 0.15 mm/N
- BL: 12.2 Tâąm
- Qts: 0.5
- Qes: 0.5
- Qms: 6.2
- Efficiency: 84.5 %
- Reference Efficiency: 84.5 %
Installation & Compatibility
The AV 12 D2/D4 II is designed for compact bass-reflex enclosures, making it suitable for vehicles with limited trunk space. The following dimensions will help you plan the installation:
- A: 318.3 mm
- B: 282.9 mm
- C: 102.5 mm
- D: 88 mm
- E: 292.3 mm
- F: 11.51 mm
- C1: 109 mm
- C2: 136.7 mm
- Center-to-Center Distance: 302 mm
- Bore Diameter: 5.5 mm
