Audison AF TSL 3YP Amp Kit â Plug & Play DSP Upgrade for Tesla Model 3/Y (from 2022)
The Audison AF TSL 3YP is a vehicle-specific complete kit that elevates your Tesla Model 3 or Model Y (from 2022, Ryzen) to a higher sound level without cutting any wires. At its core is the Forza AF M12.14 bit DSP amplifier with 12 channels and 1080 watts RMS. The subwoofer in the sealed enclosure powerfully complements the system, while integration into the Tesla infotainment, including subwoofer level control directly on the display, is retained. Available at Carhifi.shop.
Technical Highlights

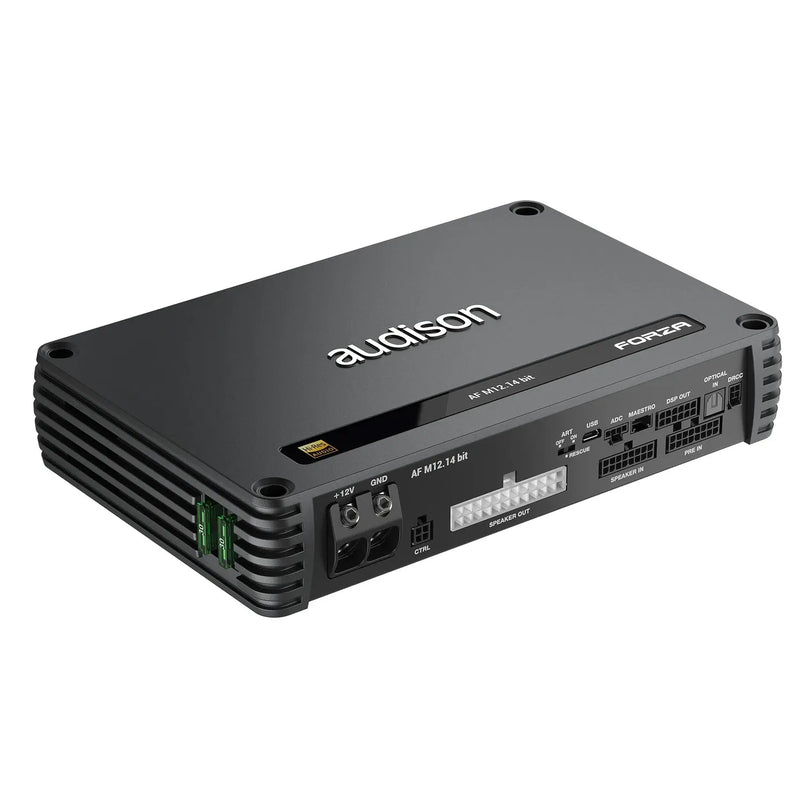

- DSP Amplifier: Audison Forza AF M12.14 bit with 12 channels
- Total Power: 1080 W RMS (12 x 60 W at 4 Ohm / 12 x 90 W at 2 Ohm)

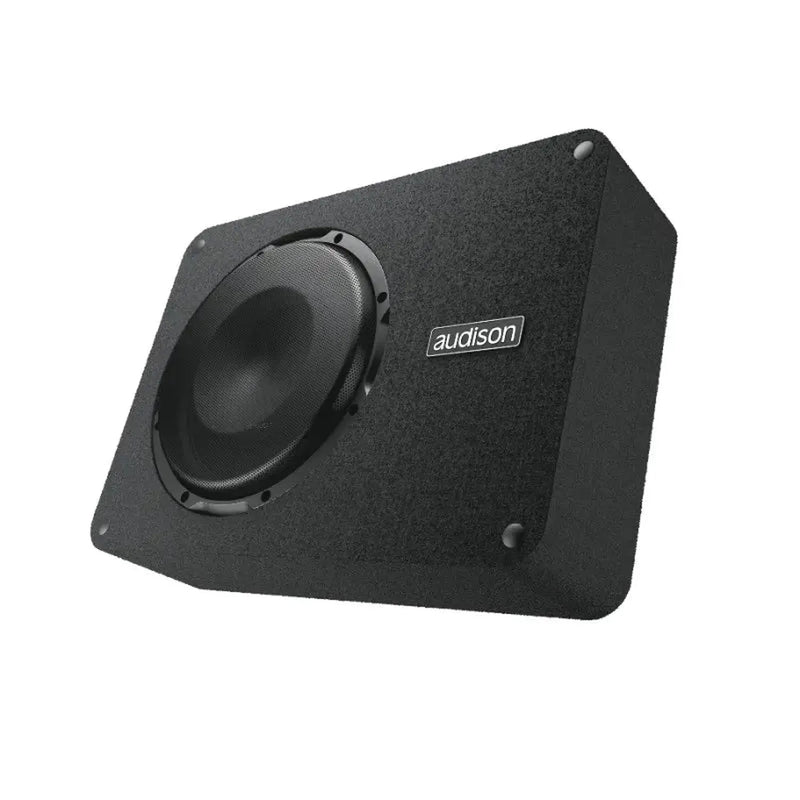

- Subwoofer: APBX 10 S4S, 250 mm (10 inch), sealed enclosure
- Signal Processing: 14-channel DSP, 24-bit/96 kHz High-Res
- System Frequency Response: 10 Hz â 42,000 Hz
- Signal-to-Noise Ratio: 105 dBA
- Damping Factor: >80 (at 100 Hz / 4 Ohm)
- Amplifier Technology: High-efficiency Class-D from the Forza series
Installation & Compatibility
- Vehicles: Tesla Model 3 from 2022 and Model Y from 2022 (Ryzen chipset)

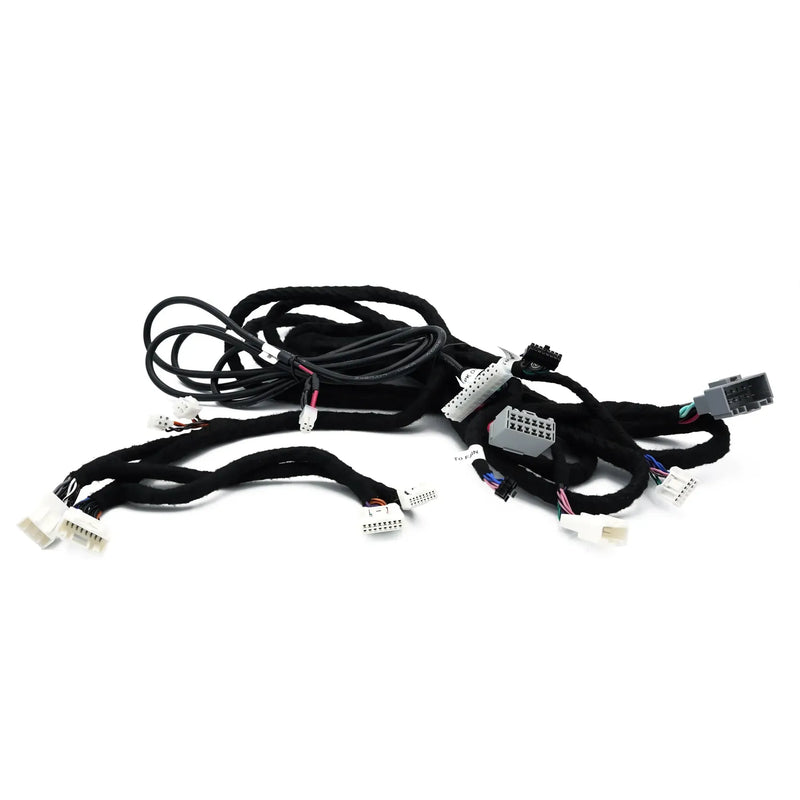

- Plug & Play: CN TSL 3YB 01 T-Harness â no cable cutting required

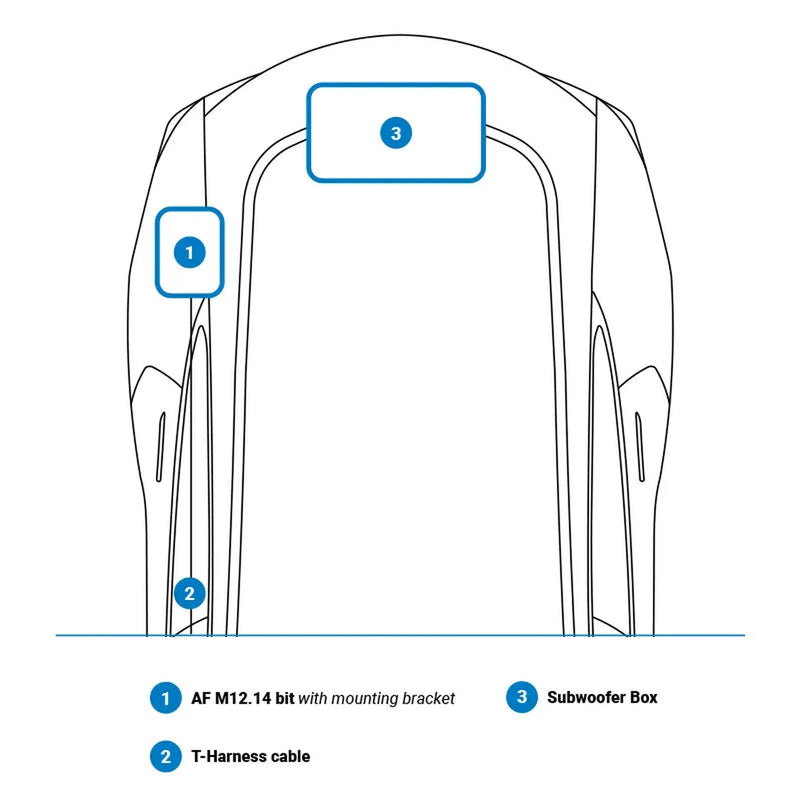

- Mounting: Tesla-specific bracket for a concealed, stable installation
- Integration: Full integration into Tesla infotainment, subwoofer level controllable in the vehicle
- Tweeter Upgrade: Activation of factory inactive tweeters in the mirror triangle
- Subwoofer Placement: Enclosure suitable for the area under the load floor
DSP Functions & Tuning
- Pre-prepared Tuning File: Optimized by Audison engineers for time alignment and EQ
- Tesla-specific Signal Management: Correction of factory frequency response interventions for neutral sound
- Equalizer: 15-band parametric EQ per channel
- Filters: Linkwitz-Riley and Butterworth configurable
Connections & Control
- High-Level Inputs: 8 inputs with integrated load simulation (USS)
- Digital: Optical S/PDIF input up to 24 bit/192 kHz for external sources
- Expansion: Dedicated port for Audison B-CON (Bluetooth Hi-Res)
- Control: Connection for DRC AC Digital Remote Control
Technical Data
- Power: 12 x 60 W at 4 Ohm / 12 x 90 W at 2 Ohm (total 1080 W RMS)
- Frequency Response: 10 Hz â 42,000 Hz
- Signal-to-Noise Ratio: 105 dBA
- Damping Factor: >80 (100 Hz / 4 Ohm)
- Amplifier Dimensions: 240 x 47 x 156 mm
- Subwoofer Enclosure Dimensions: 470 x 334 x 120 mm
- Amplifier Weight: 2.04 kg
- Subwoofer Weight: 8.63 kg

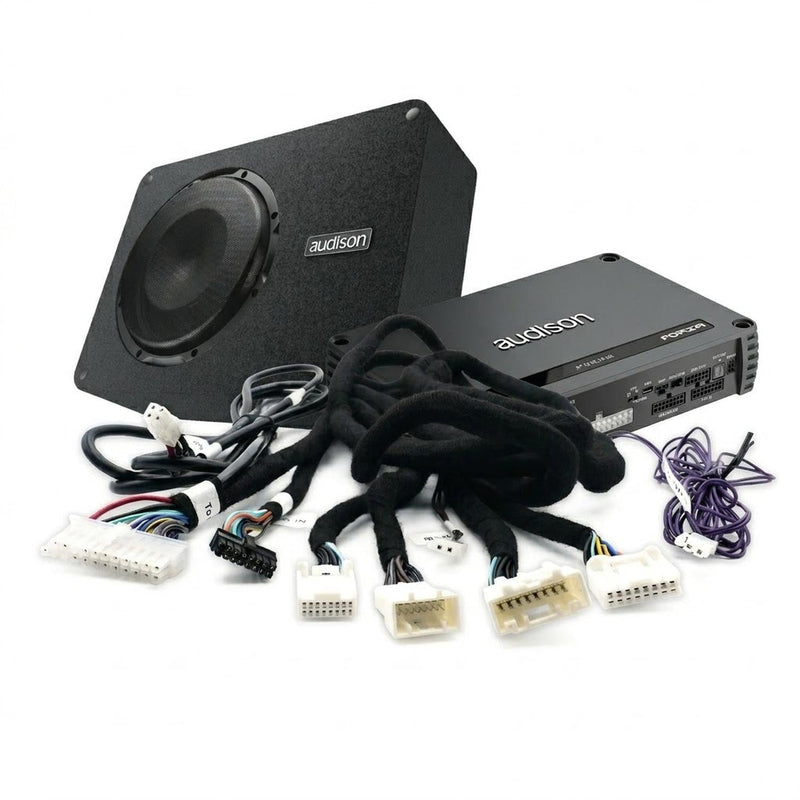

Scope of Delivery
- Audison Forza AF M12.14 bit DSP Amplifier
- APBX 10 S4S Subwoofer in sealed enclosure
- CN TSL 3YB 01 T-Harness (Plug & Play)
- Vehicle-specific mounting bracket
- Accessories for installation and connection
The kit is aimed at anyone who desires clean Tesla integration with a noticeable increase in control, dynamics, and low-frequency sound â without electrically modifying the vehicle. At Carhifi.shop, you get the kit configured appropriately and described practically.
