Audison AF TSL 3YB Amp Kit â Tesla Model 3/Y Plug & Play DSP Amplifier Set with Subwoofer
The Audison AF TSL 3YB Amp Kit is a custom-fit complete system for your Tesla Model 3 or Model Y from model year 2022. It integrates fully into the vehicle, actively controls the front as a 4-way system including the mirror triangle tweeters, and brings precise time alignment and EQ fine-tuning to the car with a 14-channel DSP. The compact Forza AF M12.14 bit delivers 12 channels of power, while the APBX 10 S4S subwoofer provides the necessary deep bass. Installation is plug & play via the Tesla-specific T-Harness â without modifications to the original wiring.
Technical Highlights
- Fully integrated Plug & Play upgrade for Tesla Model 3 and Model Y (from 2022)
- 4-way active system: Front speakers fully active, including activation of the mirror triangle tweeters
- CN TSL 3YB 01 T-Harness: Connection without modification of factory cables
- 14-channel DSP: precise time alignment and equalization for each channel
- High-Res Audio Ready: lossless playback via optical digital input
Performance & Sound
- Total power: 1080 Watts RMS from the Audison Forza AF M12.14 bit
- 12-channel amplifier: 60 W per channel at 4 Ohm or 90 W per channel at 2 Ohm
- Subwoofer: APBX 10 S4S in a sealed enclosure for precise, deep bass
- Vehicle-specific tuning: pre-installed Tesla setup to compensate for factory acoustics
- Signal purity: 105 dBA signal-to-noise ratio for clean reproduction
Hardware & Connections
- Forza technology: highly efficient, latest generation Class-D amplification
- Subwoofer chassis: 250 mm (10 inch) driver in a space-optimized, sealed enclosure
- 8 High-Level inputs with integrated USS (Universal Speakers Simulator)
- Expansion port for Audison B-CON (Hi-Res Bluetooth streaming)
- Tesla-specific mounting plate for secure, invisible installation
Installation & Compatibility
- Compatible with Tesla Model 3 and Model Y from model year 2022
- Amplifier dimensions: 240 x 47 x 156 mm (compact form factor for concealed mounting)
- Subwoofer dimensions: 470 x 334 x 120 mm (fits into the compartment under the load floor)
- Weights: Amplifier 2.04 kg, Subwoofer 8.63 kg

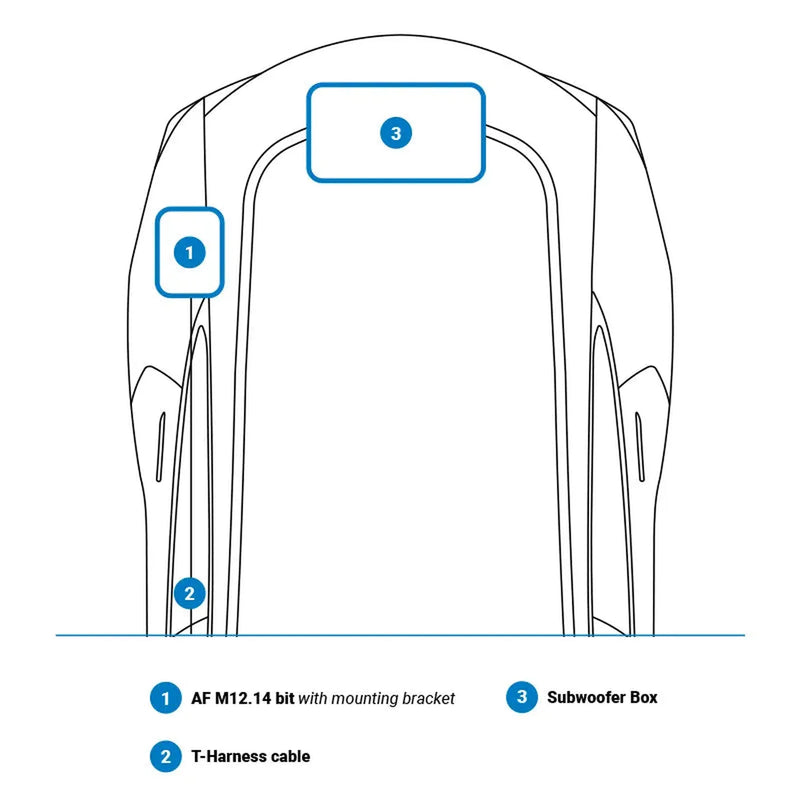

- Mounting location: residue-free installation in existing Tesla mounting points

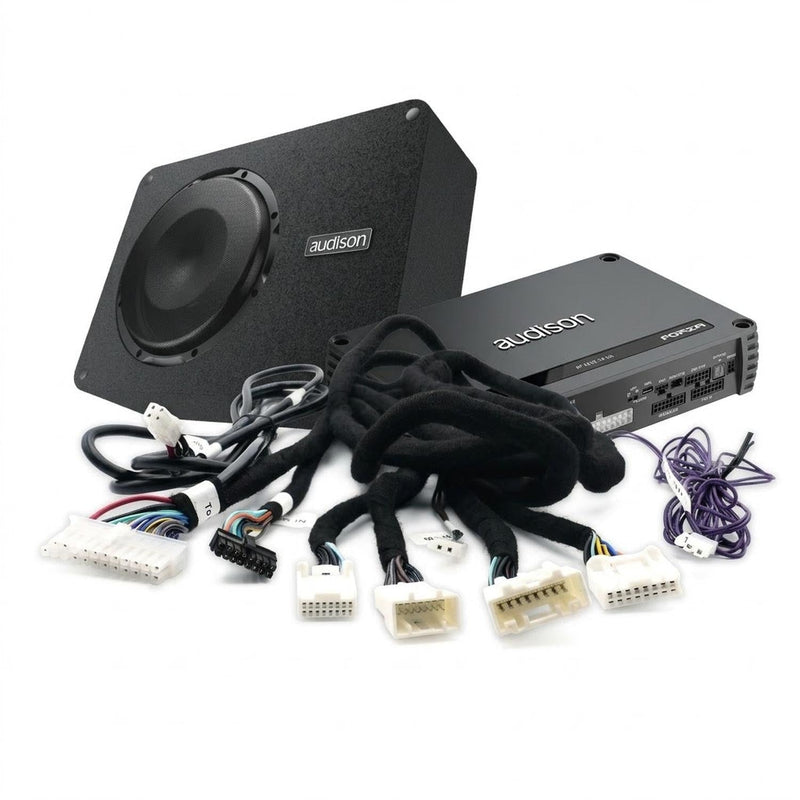

Scope of Delivery

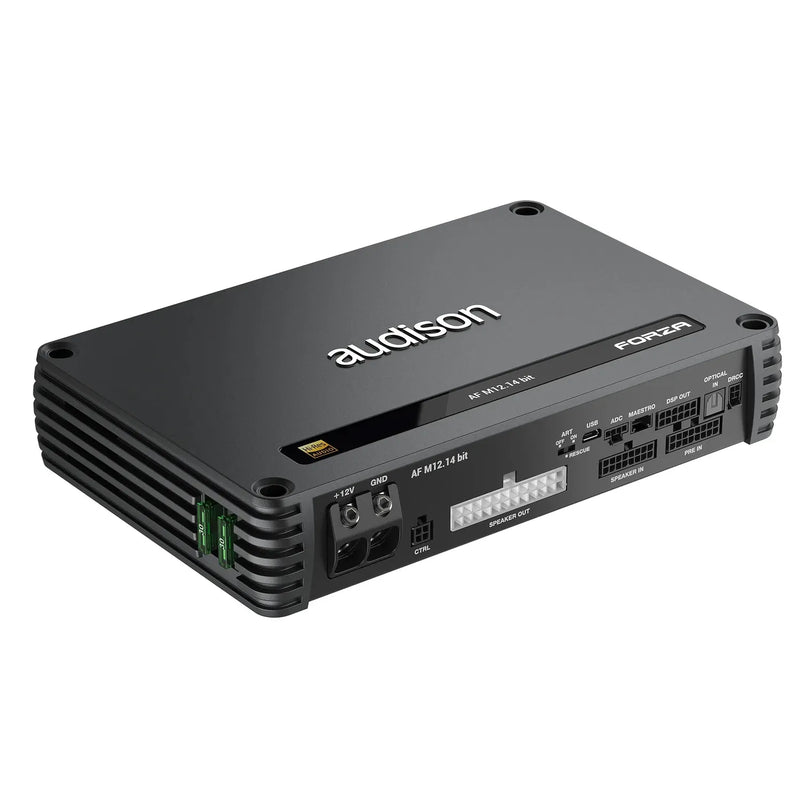

- Audison Forza AF M12.14 bit 12-channel DSP amplifier

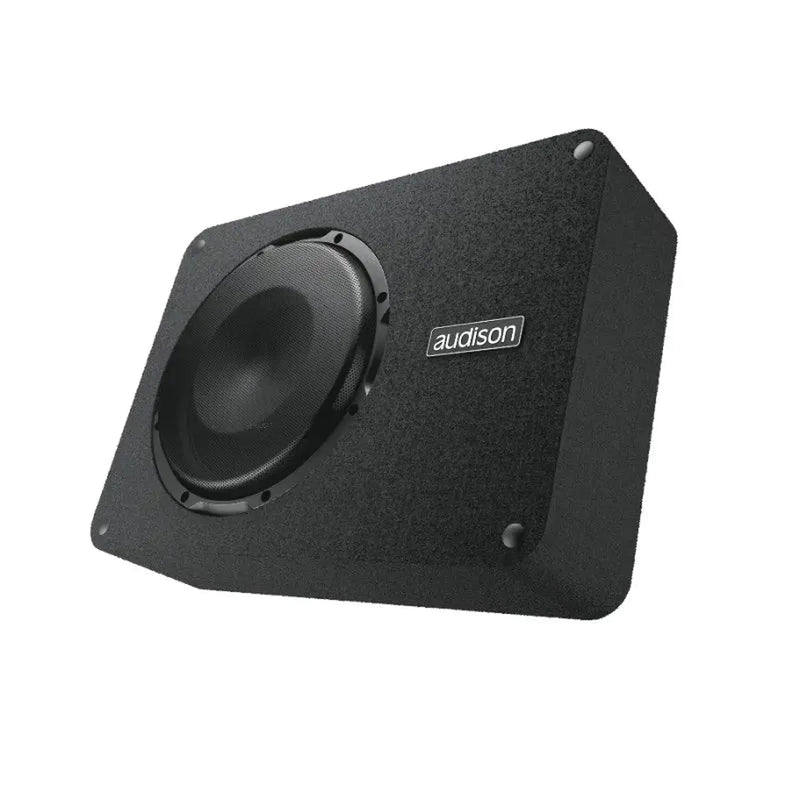

- Audison APBX 10 S4S enclosed subwoofer

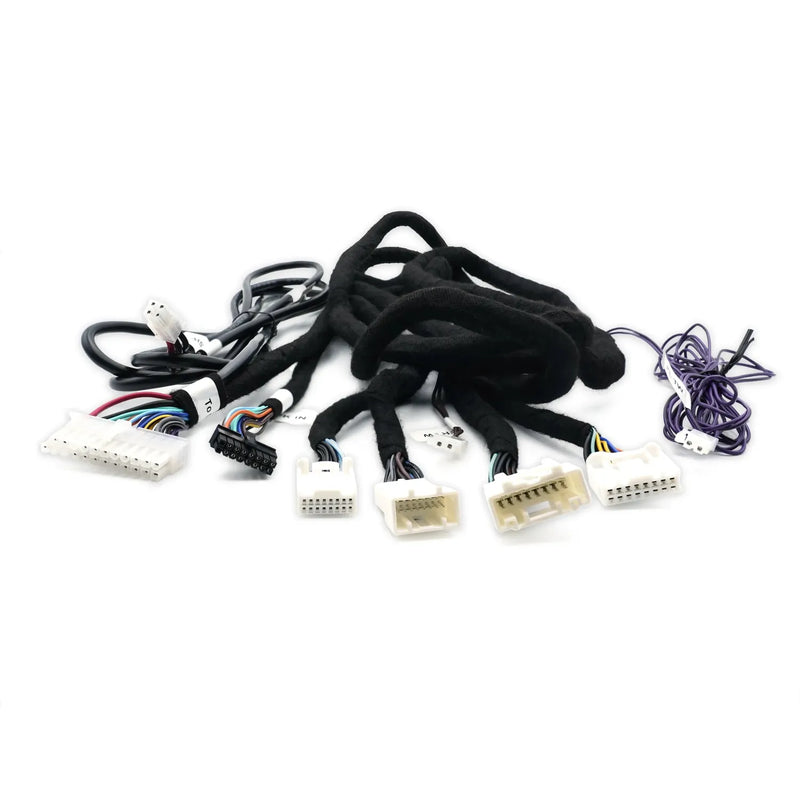

- CN TSL 3YB 01 cable set (T-Harness)
- Vehicle-specific mounting plate and installation accessories
If you want to upgrade your Tesla audio system to a precisely controlled active setup with high-res capability and powerful bass without cutting wires, this set is the right solution. Available at Carhifi.shop.
