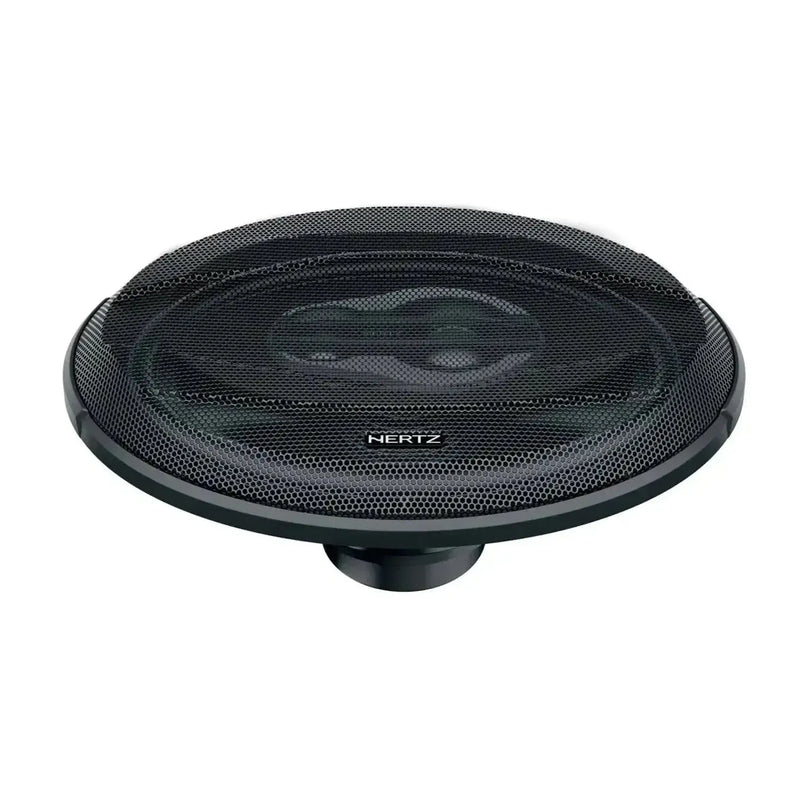

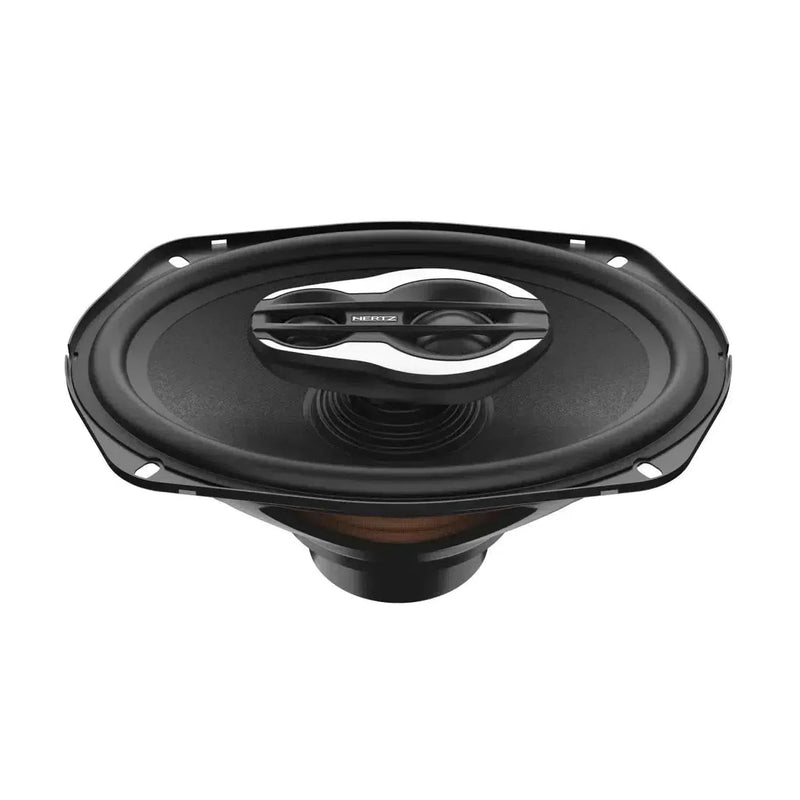

Hertz SPL Show SX 690 Neo.1 - 6x9-inch Hi-SPL Coaxial Loudspeakers for Maximum Levels
The Hertz SPL Show SX 690 Neo.1 is a 6x9-inch Hi-SPL coaxial loudspeaker designed for loud, clear in-vehicle reproduction. The mid-high unit combines a 1.4-inch dome tweeter with a 1-inch dome super tweeter and utilizes a resettable solid-state protection circuit. The water-repellent, UV-stable paper cone and compact special Neodymium N38 H motor ensure high efficiency with a shallow mounting depth. Ideal for doors and rear decks when you are looking for high levels and intelligibility â even in open-top vehicles or noisy environments.
Technical Highlights
- Size: 6 x 9 inches (oval)
- Power Handling: 130 W RMS / 260 W Peak
- Impedance: 4 Ohm
- Hi-SPL Mid-High Unit: 1.4" dome tweeter + 1" dome super tweeter
- Protection: Resettable solid-state protection circuit for the tweeter section
- Cone: Water-repellent, high-rigidity pressed paper with anti-UV treatment
- Motor: Special Neodymium N38 H (woofer and tweeter)
- Tweeter Diaphragm: 29 mm
- Woofer Voice Coil: Ă 38 mm
- Tweeter Voice Coil: Ă 25 mm
- Frequency Response: 65 â 24,000 Hz
- Woofer Magnet (W x D x H): 110 x 45 x 20 mm
- Tweeter Magnet (W x H): 24.5 x 6 x 3.5 mm
- Weight per speaker: 1.69 kg
Electro-acoustic Data
- Effective Cone Diameter (D): 169 mm
- Xmax: 5.5 mm
- Voice Coil Resistance (Re): 3 Ohm
- Resonance Frequency (Fs): 65 Hz
- Inductance (Le): 0.4 mH
- Equivalent Volume (Vas): 11.29 l
- Moving Mass (Mms): 36.1 g
- Compliance (Cms): 0.16 mm/N
- Force Factor (BL): 7.665 T·m
- Total Q Factor (Qts): 0.62
- Electrical Q Factor (Qes): 0.78
- Mechanical Q Factor (Qms): 2.9
- Efficiency (SPL): 94 dB
Dimensions
- A: 237.5 mm
- B: 225 mm
- C (Mounting Depth): 93 mm
- D: 85 mm
- E: 163 mm
- F: 154 mm
Installation & Compatibility
The SX 690 Neo.1 fits many 6x9-inch mounting locations in doors and on the rear deck. With 4 Ohm impedance and 94 dB efficiency, it performs well with solid head units, but significantly benefits from a powerful amplifier delivering around 100â130 W RMS per channel. The robust, water- and UV-resistant construction makes it a great choice for demanding environments and SPL-oriented setups.
