Hertz SPL Show HP 802

Hertz SPL Show HP 802 - 2-Channel Class AB Amplifier, 1-Ohm Stable

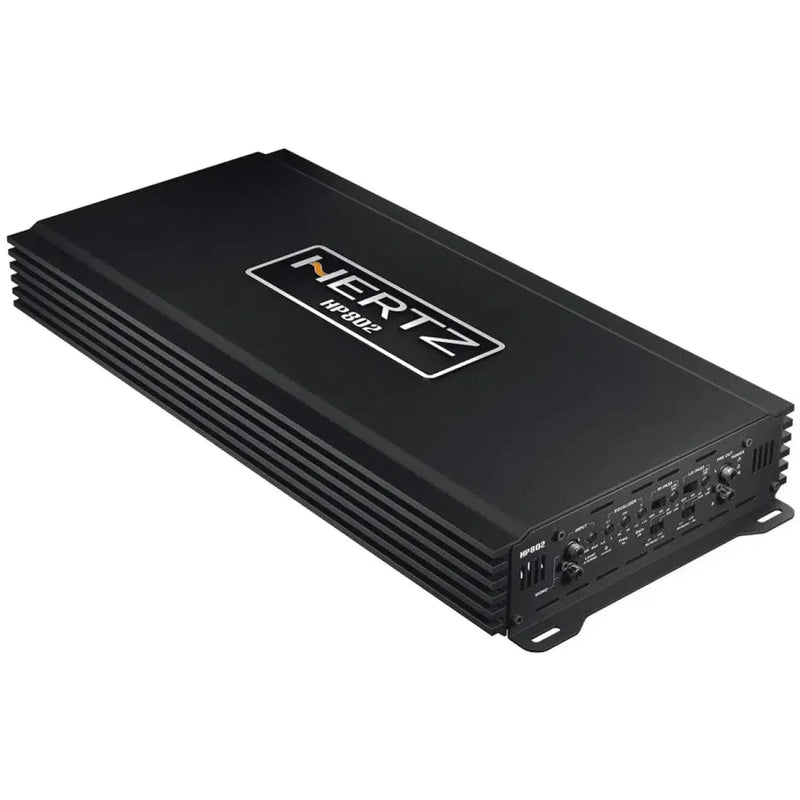

The Hertz SPL Show HP 802 is a 2-channel Class AB amplifier that reliably delivers power in demanding SPL and everyday systems. An oversized power supply with four toroidal transformers ensures stable reserves – even at 1-Ohm loads. With separate high and low-pass filters and parametric EQ, you can precisely adjust the sound to your setup. Available at Carhifi.shop.

Technical Highlights

• Channels: 2/1 (stereo or bridged)

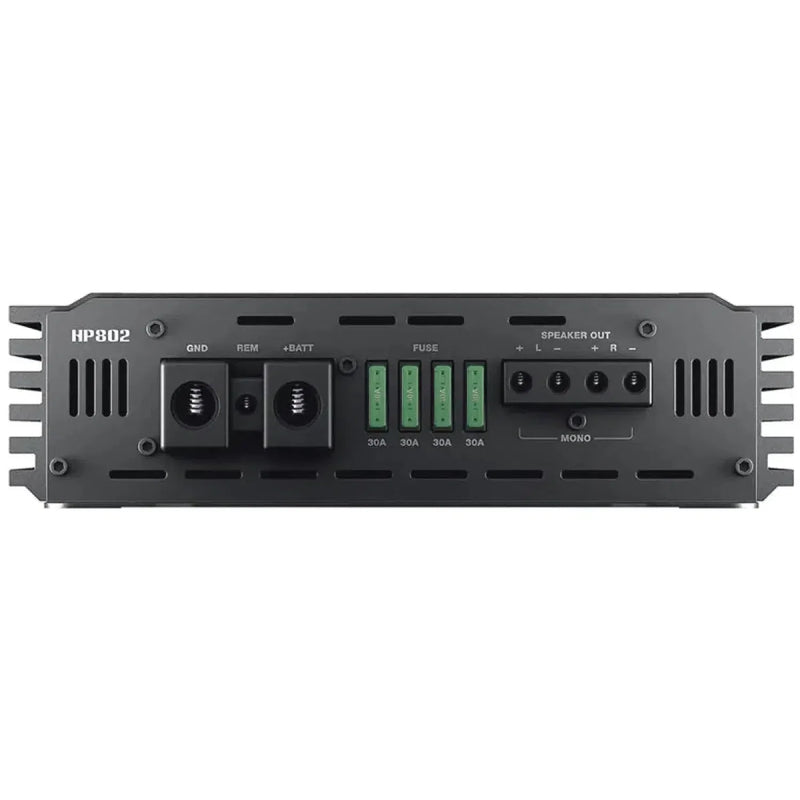

• Power supply voltage: 11–15 V DC, internal fusing: 4 x 30 A
• Idling current (On/Off): 0.04 mA
• Current draw at 1 Ω, 14.4 V (max. musical power): 100 A
• Remote input: 7–15 V DC, 1 mA
• Total Harmonic Distortion (THD) @ 100 Hz, 4 Ω: 0.05 %
• Bandwidth (Filter off): 10 Hz – 55 kHz
• Signal-to-noise ratio (A-weighted @ 1 V): 103 dB
• Damping factor @ 100 Hz, 4 Ω: 500
• Pre-In sensitivity: 0.3 – 5 VRMS (15 kΩ)
• Minimum load impedance: Stereo 1 Ω, Mono 2 Ω
• Pre-Out (Fullrange): Yes
• Adjustable crossovers: Yes
• Dimensions (WxDxH): 544 x 240 x 65.5 mm
• Weight: 7.5 kg

Power

• RMS @ 14.4 V, 1% THD:
  • 2 x 330 W (4 Ω)
  • 2 x 550 W (2 Ω)
  • 2 x 800 W (1 Ω)
  • 1 x 1100 W (4 Ω, bridged)
  • 1 x 1600 W (2 Ω, bridged)
• RMS @ 14.4 V, 10% THD:
  • 2 x 380 W (4 Ω)
  • 2 x 630 W (2 Ω)
  • 2 x 900 W (1 Ω)
  • 1 x 1260 W (4 Ω, bridged)
  • 1 x 1800 W (2 Ω, bridged)
• Total RMS Power: 1800 W

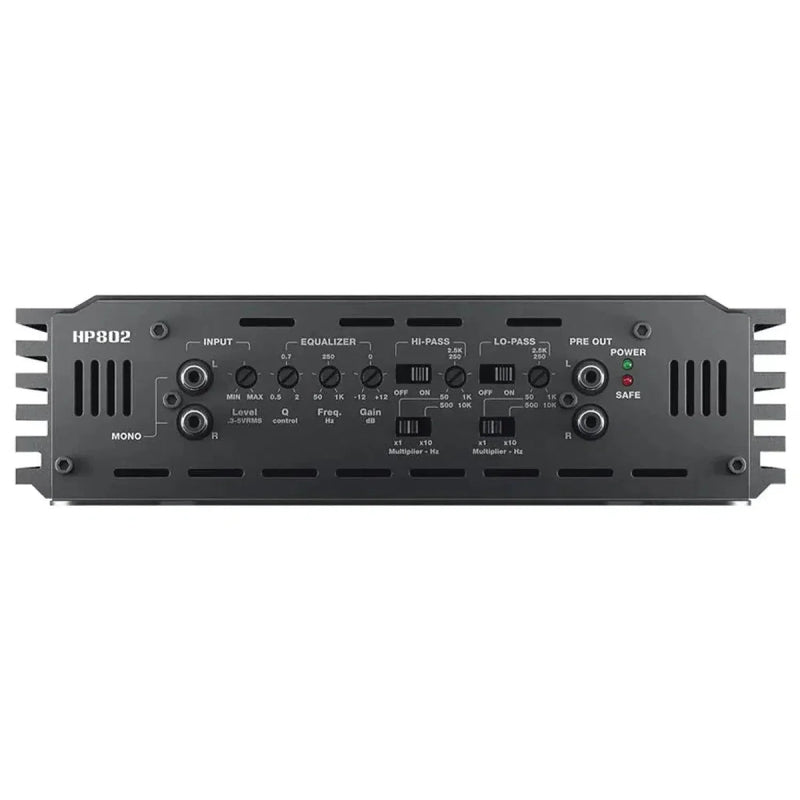

Inputs & Filters

• Inputs: Pre-In
• Pre-Out (Fullrange): Yes
• High-pass (On/Off): 50–1 kHz or 500–10 kHz
• Low-pass (On/Off): 50–1 kHz or 500–10 kHz
• Band-pass: HI 50–10 kHz / LO 50–10 kHz
• Parametric EQ:
  • Frequency: 50–1 kHz
  • Q factor: 0.5–2
  • Gain: ±12

Practical Use

Whether for a front system plus subwoofer or bridged in mono mode: the HP 802 remains controlled and delivers clean dynamics. The high damping factor supports precise bass, and the wide bandwidth keeps the signal transparent. With the full-range pre-out, you can easily connect additional amplifiers if needed.

Installation & Compatibility

The amplifier is designed for 12V vehicle electrical systems and operates stably down to 1 Ω in stereo mode or 2 Ω bridged. Plan the power supply to match the possible current draw of up to 100 A. The adjustable filters make it flexible for use in active setups – from band-pass for mid-range speakers to low-pass for subwoofers.

Dimensions (Mounting Overview)

• A: 544 mm
• B: 524 mm
• C: 240 mm
• D: 182 mm
• E: 65 mm
