Audison Prima APK 165P - 2-Way 16.5 cm Front System with AIF Technology

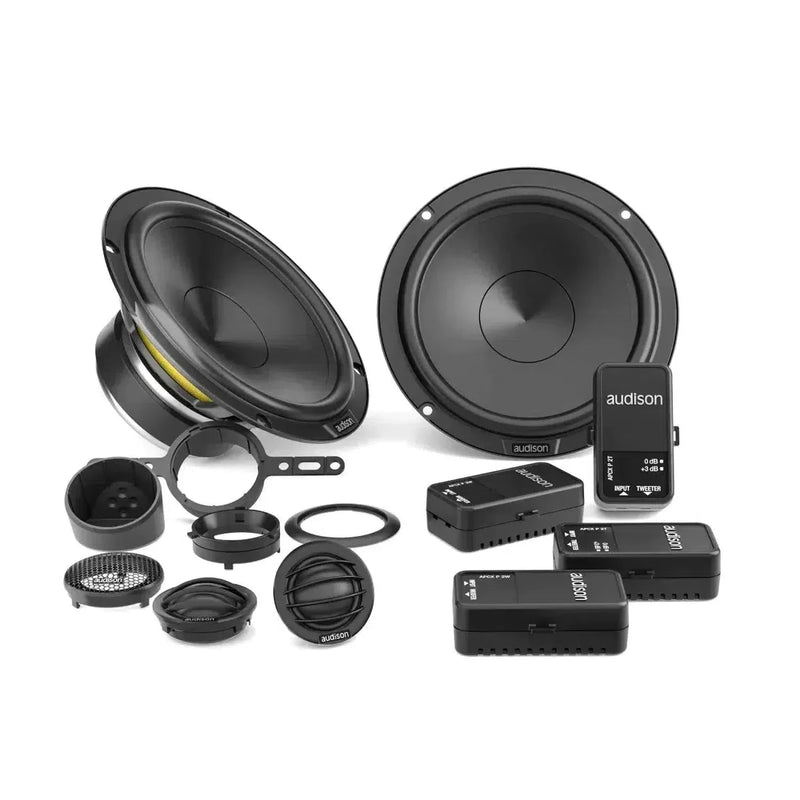

The Audison Prima APK 165P is a 2-way front system for factory installation positions, consisting of the AP 1P tweeter, the AP 6.5P woofer, and separate, ultra-compact crossovers. With 115 W continuous power and 345 W peak power, the set performs confidently with modern car audio amplifiers. AIF (Any Install Faceplate) technology significantly reduces installation time and offers flexible mounting options. In conjunction with the AP F8.9 bit or other Prima amplifiers, you can fully exploit the system's potential.
Technical Highlights
- 2-way component set: AP 1P tweeter + AP 6.5P woofer
- AIF faceplates for quick, clean OEM installations
- Separate crossovers (APCX P 2T / APCX P 2W) for flexible placement and easy cable routing
- High system efficiency: 92.5 dB at 4 Ohm
- Designed for dynamic reproduction and controlled excursion in vehicle door volumes
Technical Data
- Woofer size: 165 mm
- Tweeter size: 29 mm
- Woofer voice coil: 32 mm
- Tweeter voice coil: 25 mm
- Woofer magnet size: 100 x 40 x 18 mm
- Power handling (peak): 345 W
- Power handling (RMS): 115 W
- Sensitivity (system): 92.5 dB
- Impedance: 4 Ohm
- Frequency response: 50 Hz – 24 kHz
- Woofer crossover: Low pass 4 kHz @ 6 dB/Oct.
- Tweeter crossover: High pass 4 kHz @ 12 dB/Oct.
- Tweeter level: 0 / +3 dB
- Woofer cone diameter: 132 mm
- Woofer Xmax: 5.6 mm
Electro-acoustic Parameters
- Re Woofer: 3.1 Ohm
- Fs Woofer: 60 Hz
- Le Woofer: 0.29 mH @ 1 kHz
- Vas Woofer: 11.4 l
- Mms Woofer: 14.6 g
- Cms Woofer: 0.47
- Bxl Woofer: 5.35
- Qts Woofer: 0.55
- Qms Woofer: 7.6
- Qes Tweeter: 1.74
- SPL Woofer: 89.5 dB
General
- Woofer weight: 1.45 kg
- Tweeter weight: 0.067 kg
Special Features

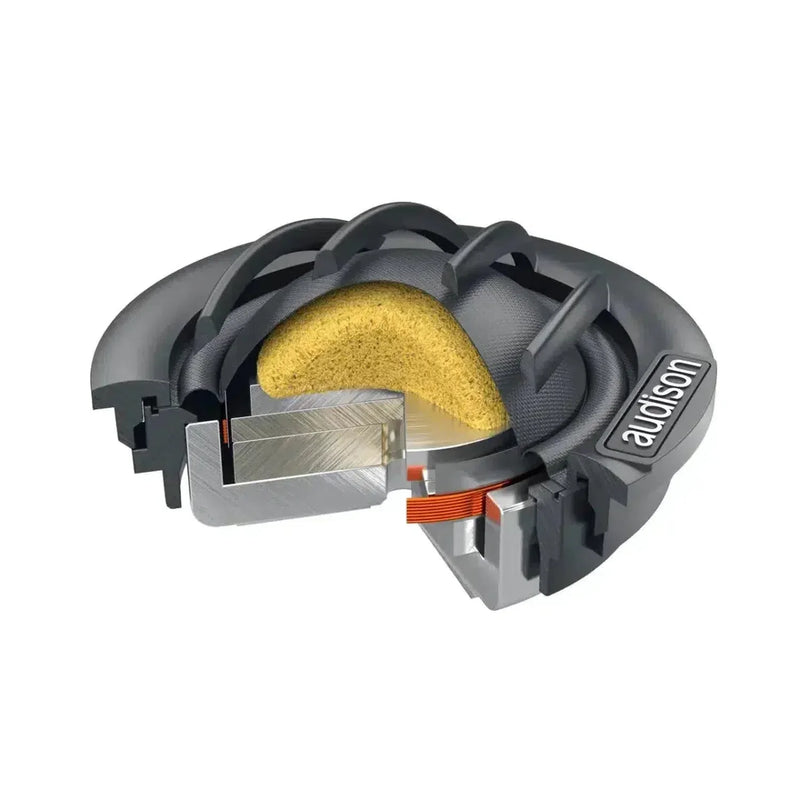

- AP 1P Tweeter

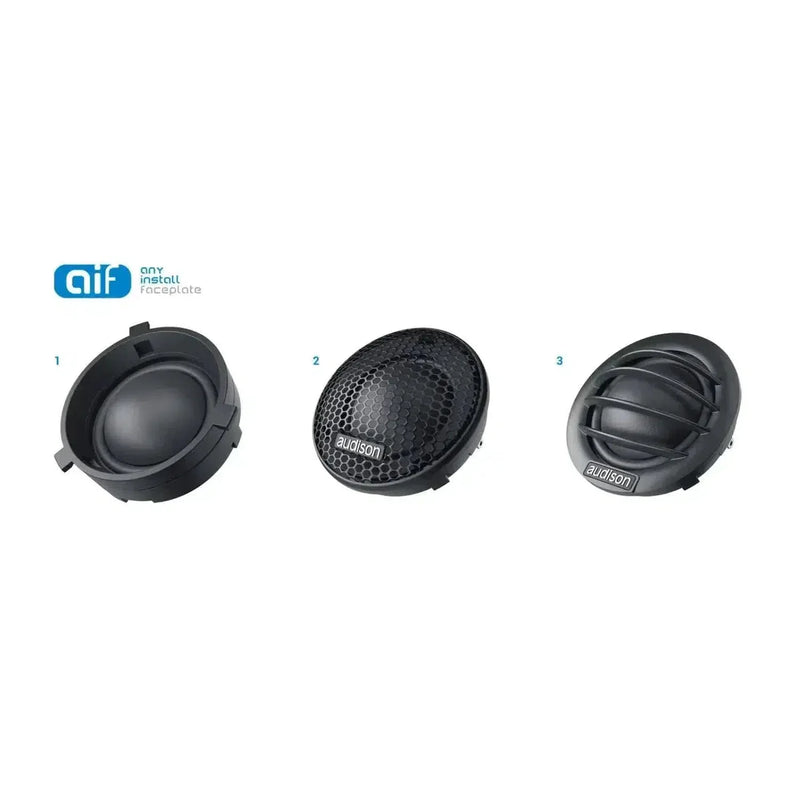

- AIF Technology (Any Install Faceplate) for versatile mounting options and reduced installation time

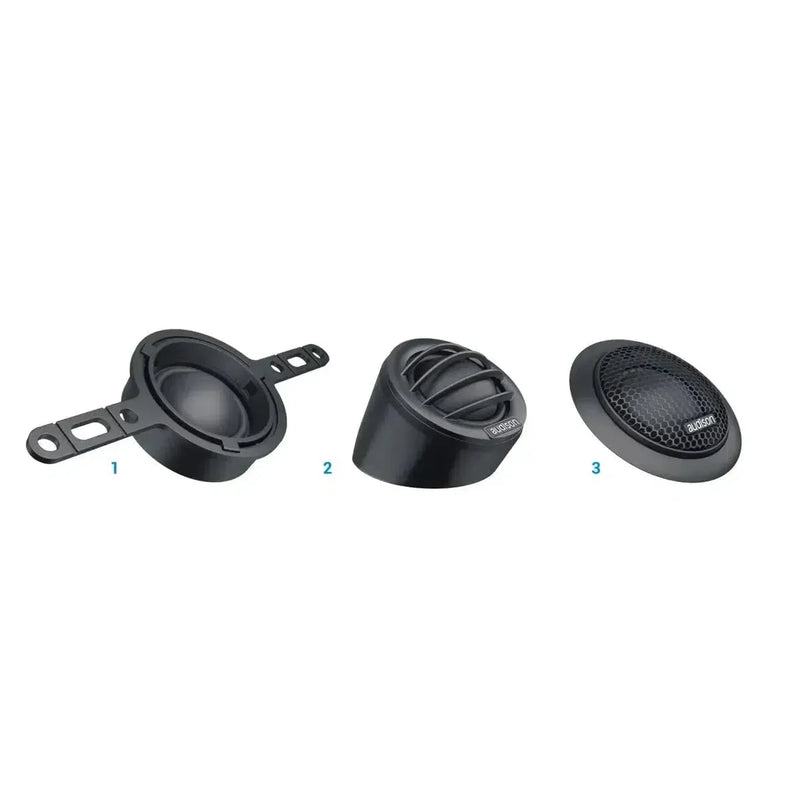

- Three included mounting faceplates cover different installation situations
- Double neodymium magnet unit for extended high-frequency reproduction
- CCAW voice coil for dynamic response
- FEM-optimized dome profile for wide off-axis dispersion

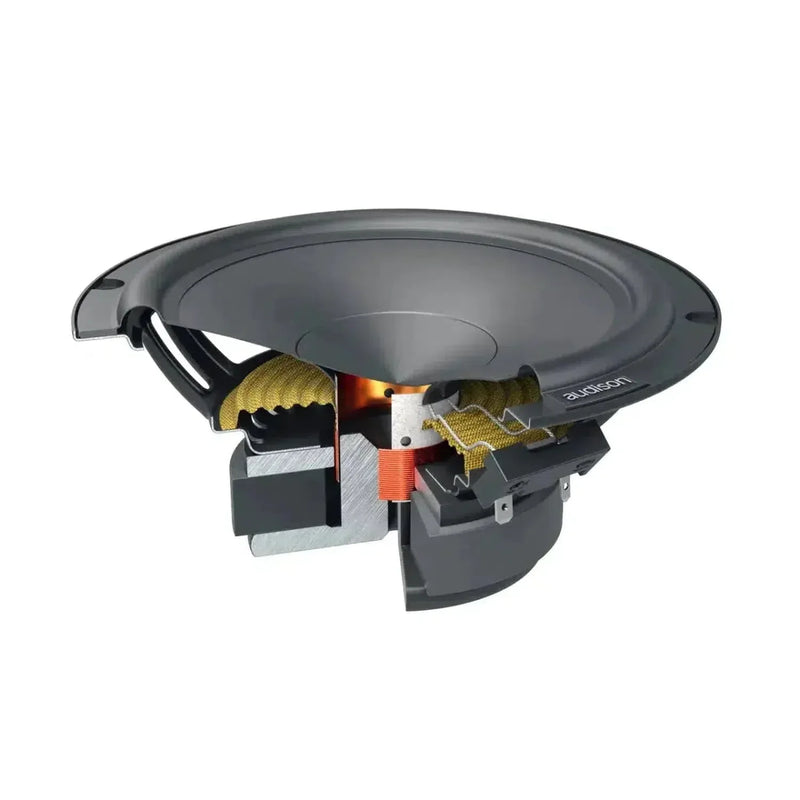

- AP 6.5P Woofer
- Increased excursion for powerful dynamics
- Electro-acoustically optimized for OEM positions
- Powerful magnet assembly for precise control with large excursion
- CCAW voice coil (32 x 14 mm) for high power handling
- Compact basket for easy integration into factory cutouts
- APCX P 2T / APCX P 2W Crossovers
- Separate, ultra-compact crossovers for treble and bass minimize space requirements
- Components designed for high power handling, preventing saturation
- Asymmetric slopes: 12 dB/Oct. (tweeter) and 6 dB/Oct. (woofer) for balanced system tuning
Installation & Compatibility
The Audison Prima APK 165P is designed for 165 mm installation openings, making it suitable for many vehicle doors. The AIF faceplates offer three mounting variants for the tweeter and facilitate clean integration into the interior. Thanks to the separate, compact crossovers, you can place the components in a space-saving manner and route cables systematically. In combination with the AP F8.9 bit or other Prima amplifiers, the system can be precisely adapted to your vehicle and listening preferences.
